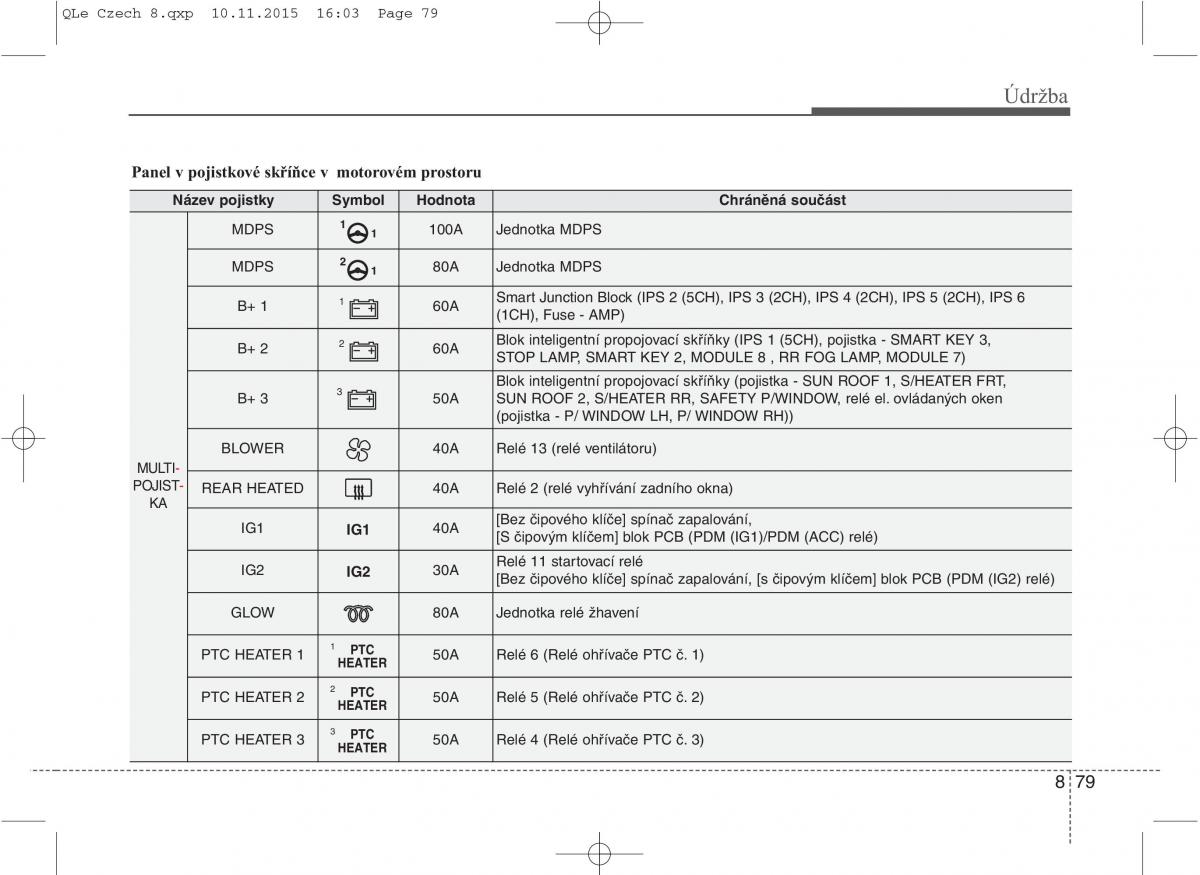

QLe Czech 8.qxp 10.11.2015 16:03 Page 79
Údržba
Panel v pojistkové skříňce v motorovém prostoru
Název pojistky Symbol Hodnota Chráněná součást
MDPS 1 100A Jednotka MDPS
1
MDPS 2 80A Jednotka MDPS
1
B+ 1 1 60A Smart Junction Block (IPS 2 (5CH), IPS 3 (2CH), IPS 4 (2CH), IPS 5 (2CH), IPS 6
(1CH), Fuse - AMP)
B+ 2 2 60A Blok inteligentní propojovací skříňky (IPS 1 (5CH), pojistka - SMART KEY 3,
STOP LAMP, SMART KEY 2, MODULE 8 , RR FOG LAMP, MODULE 7)
Blok inteligentní propojovací skříňky (pojistka - SUN ROOF 1, S/HEATER FRT,
B+ 3 3 50A SUN ROOF 2, S/HEATER RR, SAFETY P/WINDOW, relé el.ovládaných oken
(pojistka - P/ WINDOW LH, P/ WINDOW RH))
BLOWER 40A Relé 13 (relé ventilátoru)
MULTI-
POJIST - REAR HEATED 40A Relé 2 (relé vyhřívání zadního okna)
KA
IG1 40A [Bez čipového klíče] spínač zapalování,
IG1 [S čipovým klíčem] blok PCB (PDM (IG1)/PDM (ACC) relé)
IG2 30A Relé 11 startovací relé
IG2 [Bez čipového klíče] spínač zapalování, [s čipovým klíčem] blok PCB (PDM (IG2) relé)
GLOW 80A Jednotka relé žhavení
PTC HEATER 1 1 PTC 50A Relé 6 (Relé ohřívače PTC č.1)
HEATER
PTC HEATER 2 2 PTC 50A Relé 5 (Relé ohřívače PTC č.2)
HEATER
PTC HEATER 3 3 PTC 50A Relé 4 (Relé ohřívače PTC č.3)
HEATER
879
