text version of content this owner's manual page from owners manual to the vehicle Toyota Corolla, year of production 1997 - 2002:

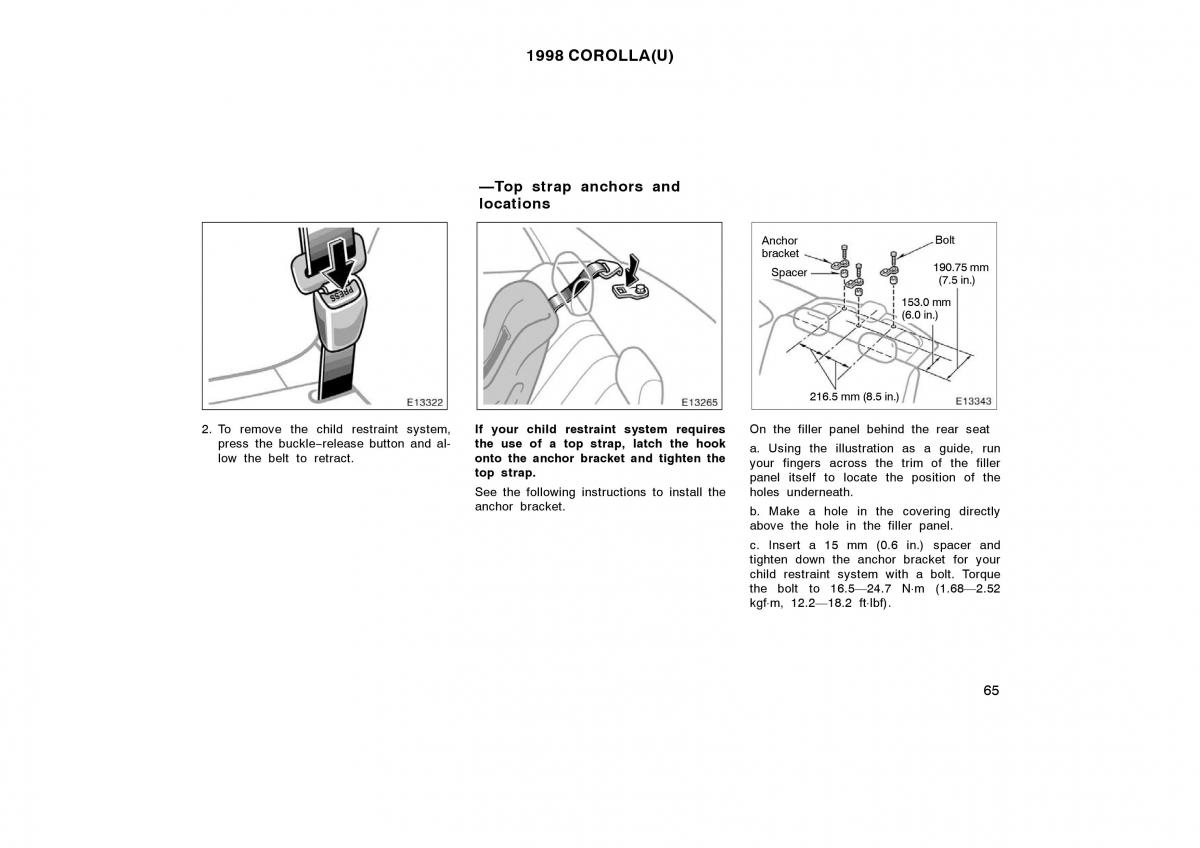

1998 COROLLA(U) —Top strap anchors and locations Anchor Bolt bracket Spacer 190.75 mm (7.5 in.) 153.0 mm (6.0 in.) 216.5 mm (8.5 in.) 2. To remove the child restraint system, If your child restraint system requires On the filler anelp behind the rear seat press the buckle−release button and al-the use of a top strap, latch the hook low the belt to retract. onto the anchor bracket and tighten thea. Using the illustration as a guide, run top strap. your fingers across the trim of the filler panel itself to locate the position of the See the following instructions to install theholes underneath. anchor bracket. b. Make a hole in the covering directly above the hole in the filler panel. c. Insert a 15 mm (0.6 in.) spacer and tighten down the anchor bracket for your child restraint system with a bolt. Torque the bolt to 16.5—24.7 ⋅mN (1.68—2.52 kgf⋅m, 12.2—18.2 ft⋅lbf). 65
