TLe ITALY 7.qxp 5/15/2015 5:35 PM Page 71

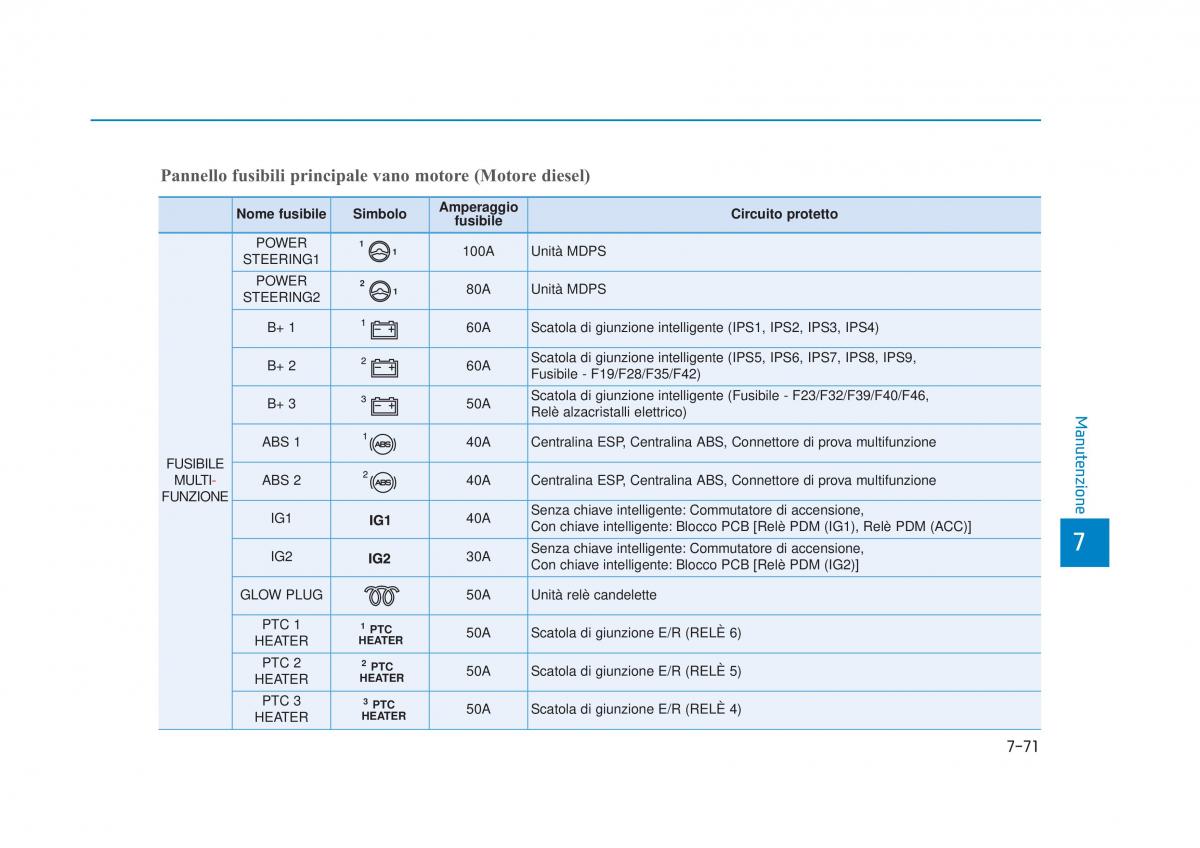

Pannello fusibili principale vano motore (Motore diesel)
Nome fusibile Simbolo Amperaggio Circuito protetto
fusibile
POWER 1 1 100A Unità MDPS
STEERING1
POWER 2 80A Unità MDPS
STEERING2 1
B+ 1 60A Scatola di giunzione intelligente (IPS1, IPS2, IPS3, IPS4)
B+ 2 60A Scatola di giunzione intelligente (IPS5, IPS6, IPS7, IPS8, IPS9,
Fusibile - F19/F28/F35/F42)
B+ 3 50A Scatola di giunzione intelligente (Fusibile - F23/F32/F39/F40/F46,
Relè alzacristalli elettrico) Man
FUSIBILE ABS 1 40A Centralina ESP, Centralina ABS, Connettore di prova multifunzione utenzione
MULTI- ABS 2 40A Centralina ESP, Centralina ABS, Connettore di prova multifunzione
FUNZIONE Senza chiave intelligente: Commutatore di accensione,
IG1 40A Con chiave intelligente: Blocco PCB [Relè PDM (IG1), Relè PDM (ACC)]
IG2 30A Senza chiave intelligente: Commutatore di accensione, 7
Con chiave intelligente: Blocco PCB [Relè PDM (IG2)]
GLOW PLUG 50A Unità relè candelette
PTC 1 1 PTC 50A Scatola di giunzione E/R (RELÈ 6)
HEATER HEATER
PTC 2 2 PTC 50A Scatola di giunzione E/R (RELÈ 5)
HEATER HEATER
PTC 3 3 PTC 50A Scatola di giunzione E/R (RELÈ 4)
HEATER HEATER
7-71
