TLe ITALY 7.qxp 5/15/2015 5:35 PM Page 69

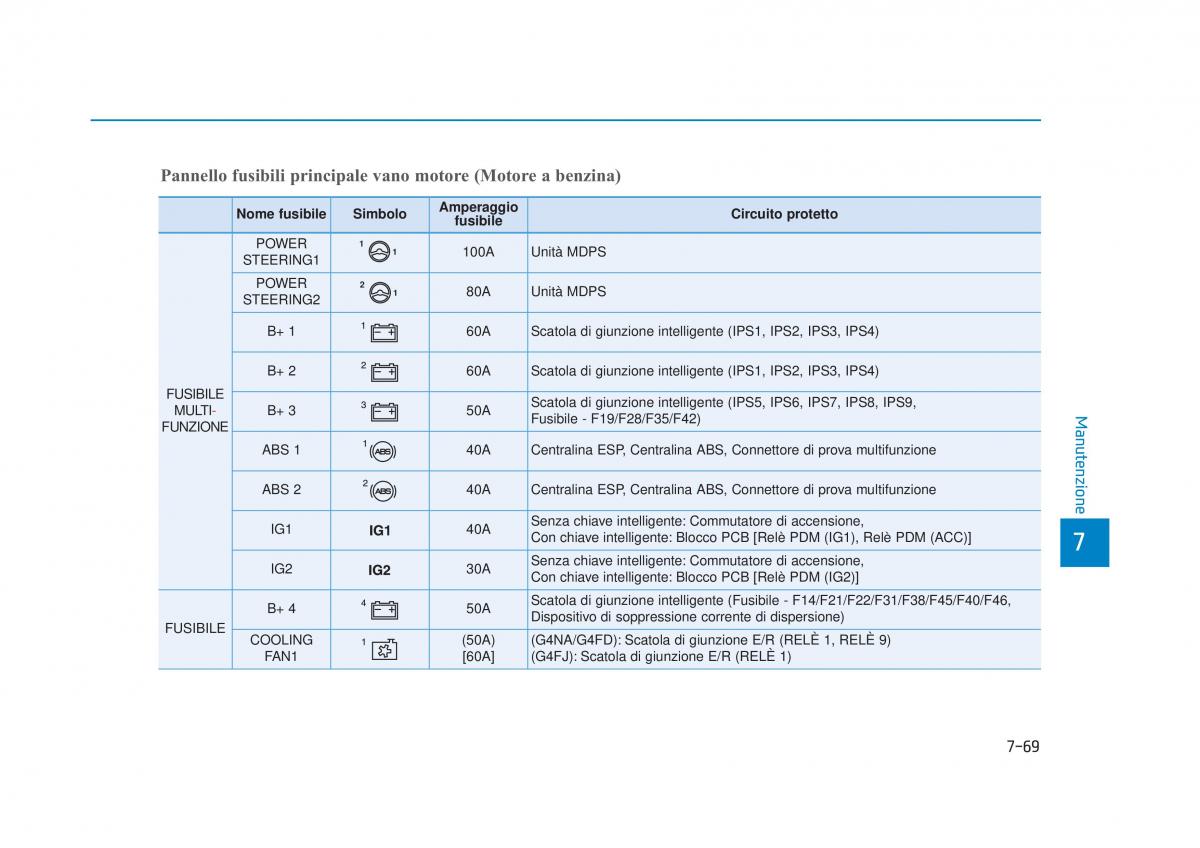

Pannello fusibili principale vano motore (Motore a benzina)
Nome fusibile Simbolo Amperaggio Circuito protetto
fusibile
POWER 1 1 100A Unità MDPS
STEERING1
POWER 2 1 80A Unità MDPS
STEERING2
B+ 1 60A Scatola di giunzione intelligente (IPS1, IPS2, IPS3, IPS4)
B+ 2 60A Scatola di giunzione intelligente (IPS1, IPS2, IPS3, IPS4)
FUSIBILE Scatola di giunzione intelligente (IPS5, IPS6, IPS7, IPS8, IPS9,
MULTI- B+ 3 50A
FUNZIONE Fusibile - F19/F28/F35/F42) Man
ABS 1 40A Centralina ESP, Centralina ABS, Connettore di prova multifunzione utenzione
ABS 2 40A Centralina ESP, Centralina ABS, Connettore di prova multifunzione
IG1 40A Senza chiave intelligente: Commutatore di accensione,
Con chiave intelligente: Blocco PCB [Relè PDM (IG1), Relè PDM (ACC)] 7
IG2 30A Senza chiave intelligente: Commutatore di accensione,
Con chiave intelligente: Blocco PCB [Relè PDM (IG2)]
B+ 4 50A Scatola di giunzione intelligente (Fusibile - F14/F21/F22/F31/F38/F45/F40/F46,
FUSIBILE Dispositivo di soppressione corrente di dispersione)
COOLING (50A) (G4NA/G4FD):Scatola di giunzione E/R (RELÈ 1, RELÈ 9)
FAN1 [60A] (G4FJ): Scatola di giunzione E/R (RELÈ 1)
7-69
