text version of content this owner's manual page from owners manual to the vehicle Mercedes C, year of production 1993 - 2001:

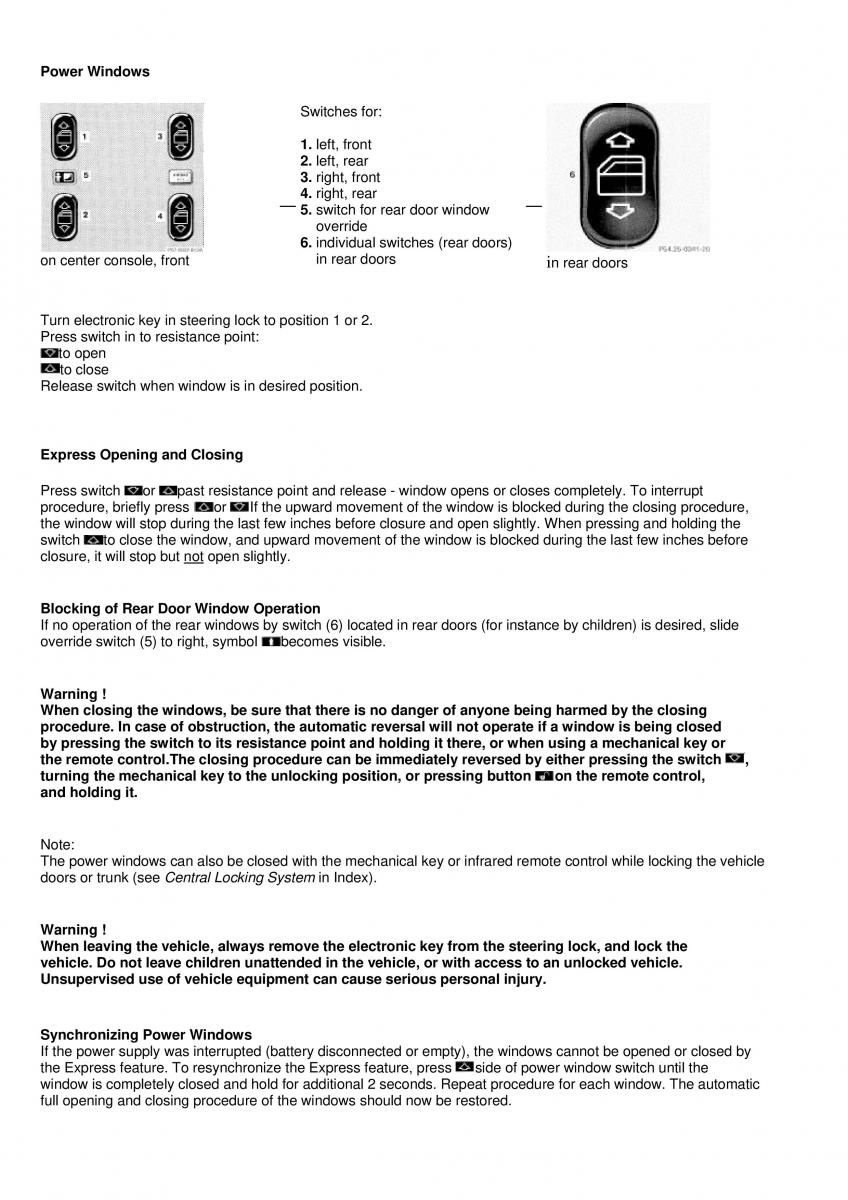

Power Windows Switches for: 1. left, front 2. left, rear 3. right, front 4. right, rear 5. switch for rear door window override 6. individual switches (rear doors) on center console, front in rear doors in rear doors Turn electronic key in steering lock to position 1 or 2. Press switch in to resistance point: to open to close Release switch when window is in desired position. Express Opening and Closing Press switch or past resistance point and release - window opens or closes completely. To interrupt procedure, briefly press or If the upward movement of the window is blocked during the closing procedure, the window will stop during the last few inches before closure and open slightly. When pressing and holding the switch to close the window, and upward movement of the window is blocked during the last few inches before closure, it will stop but not open slightly. Blocking of Rear Door Window Operation If no operation of the rear windows by switch (6) located in rear doors (for instance by children) is desired, slide override switch (5) to right, symbol becomes visible. Warning ! When closing the windows, be sure that there is no danger of anyone being harmed by the closing procedure. In case of obstruction, the automatic reversal will not operate if a window is being closed by pressing the switch to its resistance point and holding it there, or when using a mechanical key or the remote control.The closing procedure can be immediately reversed by either pressing the switch , turning the mechanical key to the unlocking position, or pressing button on the remote control, and holding it. Note: The power windows can also be closed with the mechanical key or infrared remote control while locking the vehicle doors or trunk (see Central Locking System in Index). Warning ! When leaving the vehicle, always remove the electronic key from the steering lock, and lock the vehicle. Do not leave children unattended in the vehicle, or with access to an unlocked vehicle. Unsupervised use of vehicle equipment can cause serious personal injury. Synchronizing Power Windows If the power supply was interrupted (battery disconnected or empty), the windows cannot be opened or closed by the Express feature. To resynchronize the Express feature, press side of power window switch until the window is completely closed and hold for additional 2 seconds. Repeat procedure for each window. The automatic full opening and closing procedure of the windows should now be restored.
