text version of content this owner's manual page from owners manual to the vehicle VW Touareg, year of production 2010:

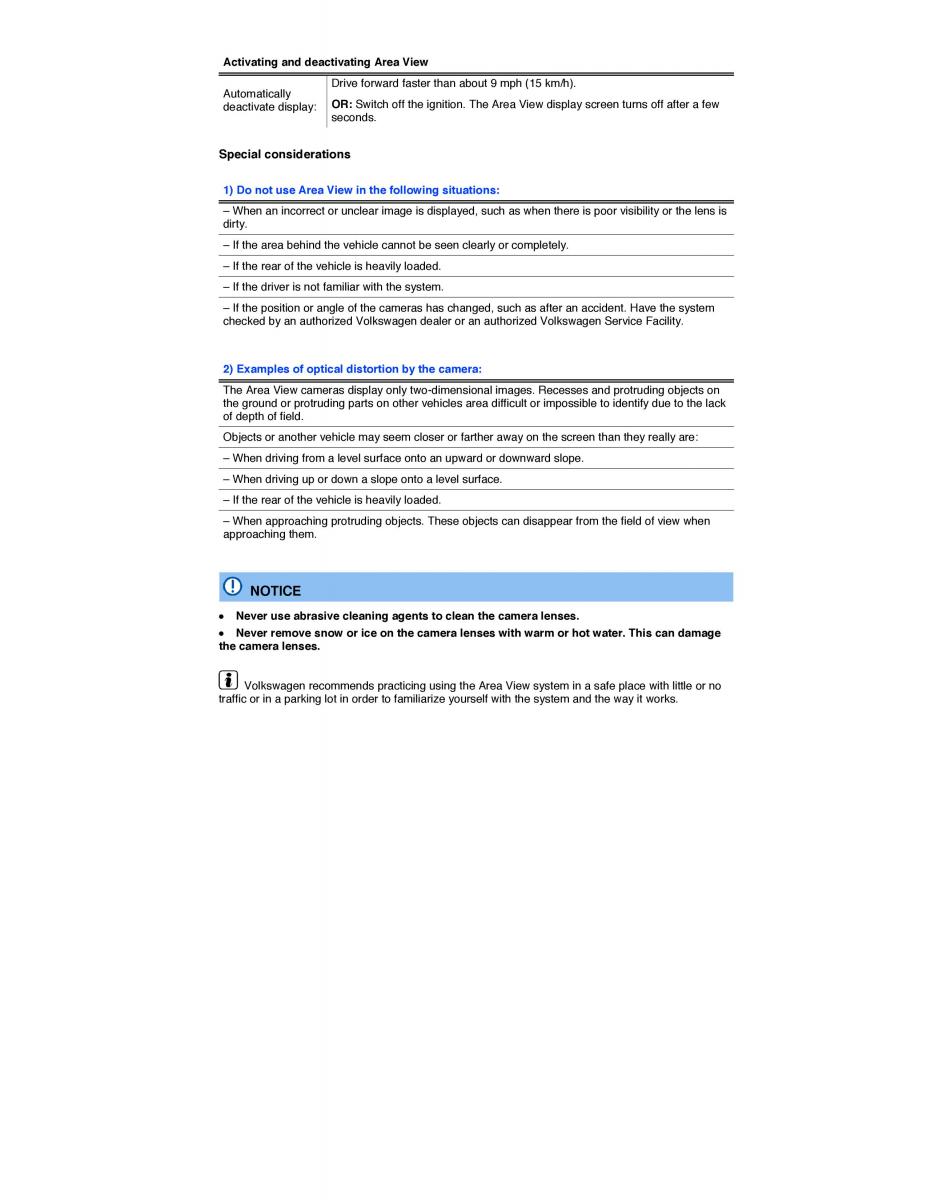

Activating and deactivating Area View Automatically Drive forward faster than about 9 mph (15 km/h). deactivate display: OR: Switch off the ignition. The Area View display screen turns off after a few seconds. Special considerations 1) Do not use Area View in the following situations: – When an incorrect or unclear image is displayed, such as when there is poor visibility or the lens is dirty. – If the area behind the vehicle cannot be seen clearly or completely. – If the rear of the vehicle is heavily loaded. – If the driver is not familiar with the system. – If the position or angle of the cameras has changed, such as after an accident. Have the system checked by an authorized Volkswagen dealer or an authorized Volkswagen Service Facility. 2) Examples of optical distortion by the camera: The Area View cameras display only two-dimensional images. Recesses and protruding objects on the ground or protruding parts on other vehicles area difficult or impossible to identify due to the lack of depth of field. Objects or another vehicle may seem closer or farther away on the screen than they really are: – When driving from a level surface onto an upward or downward slope. – When driving up or down a slope onto a level surface. – If the rear of the vehicle is heavily loaded. – When approaching protruding objects. These objects can disappear from the field of view when approaching them. NOTICE x Never use abrasive cleaning agents to clean the camera lenses . x Never remove snow or ice on the camera lenses with warm or hot water. This can damage the camera lenses. Volkswagen recommends practicing using the Area View system in a safe place with little or no traffic or in a parking lot in order to familiarize yourself with the system and the way it works.
