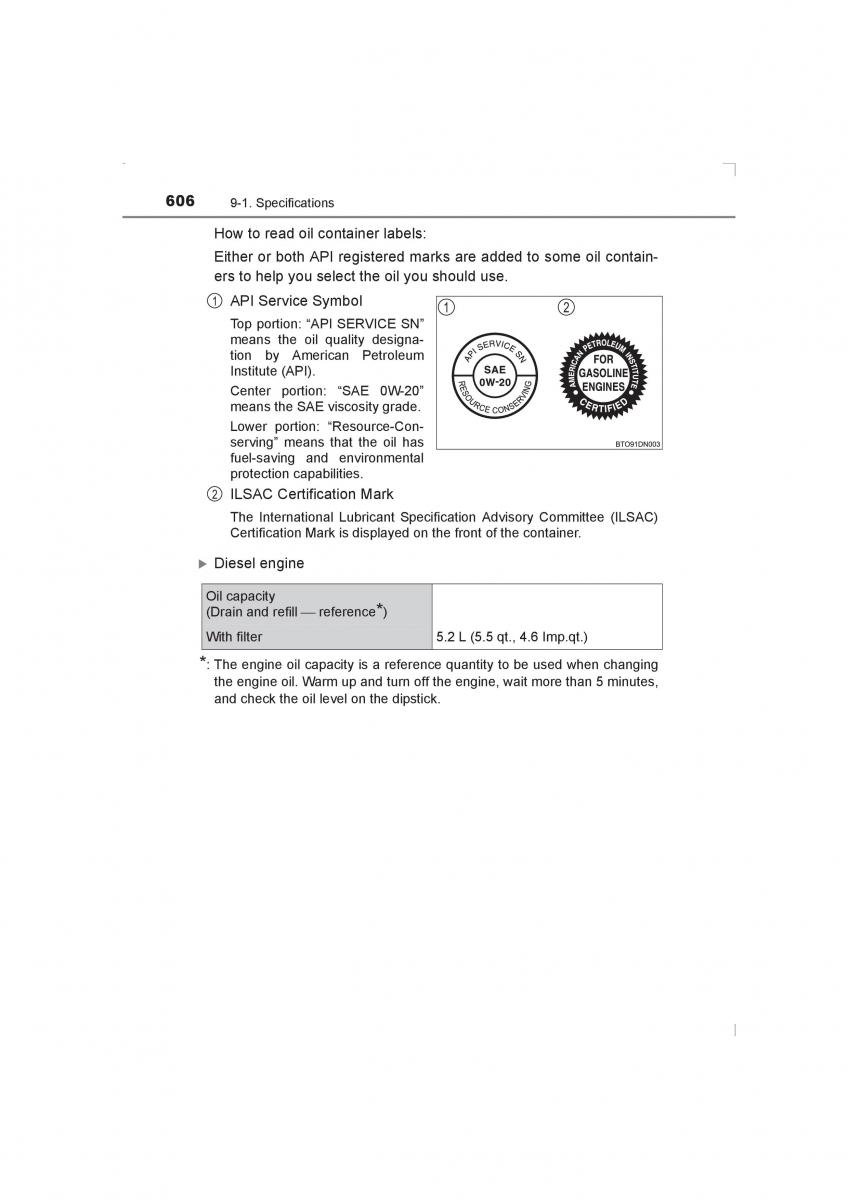

AVENSIS_OM_OM20C20E_(EE).book Page 606 Thursday, January 29, 2015 1:47 PM
606 9-1. Specifications
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
1 API Service Symbol 1 2
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
2 ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
X Diesel engine
Oil capacity
(Drain and refill reference*)
With filter 5.2 L (5.5 qt., 4.6 Imp.qt.)
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
AVENSIS_OM_OM20C20E_(EE)
