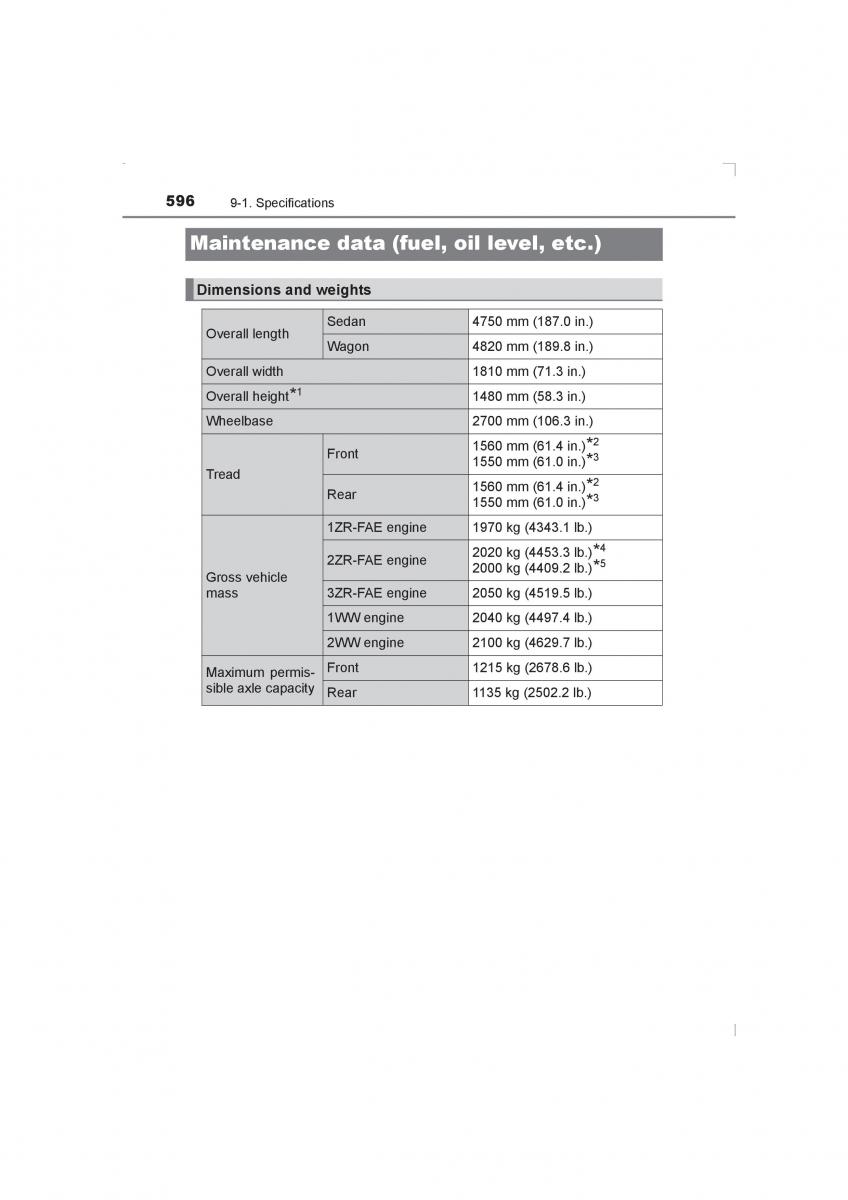

AVENSIS_OM_OM20C20E_(EE).book Page 596 Thursday, January 29, 2015 1:47 PM
596 9-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length Sedan 4750 mm (187.0 in.)
Wagon 4820 mm (189.8 in.)
Overall width 1810 mm (71.3 in.)
1
Overall height* 1480 mm (58.3 in.)
Wheelbase 2700 mm (106.3 in.)
2
Front 1560 mm (61.4 in.)*
3
Tread 1550 mm (61.0 in.)*
2
Rear 1560 mm (61.4 in.)*
3
1550 mm (61.0 in.)*
1ZR-FAE engine 1970 kg (4343.1 lb.)
4
2ZR-FAE engine 2020 kg (4453.3 lb.)*
5
Gross vehicle 2000 kg (4409.2 lb.)*
mass 3ZR-FAE engine 2050 kg (4519.5 lb.)
1WW engine 2040 kg (4497.4 lb.)
2WW engine 2100 kg (4629.7 lb.)
Maximum permis- Front 1215 kg (2678.6 lb.)
sible axle capacityRear 1135 kg (2502.2 lb.)
