text version of content this owner's manual page from owners manual to the vehicle VW Touareg, year of production 2010:

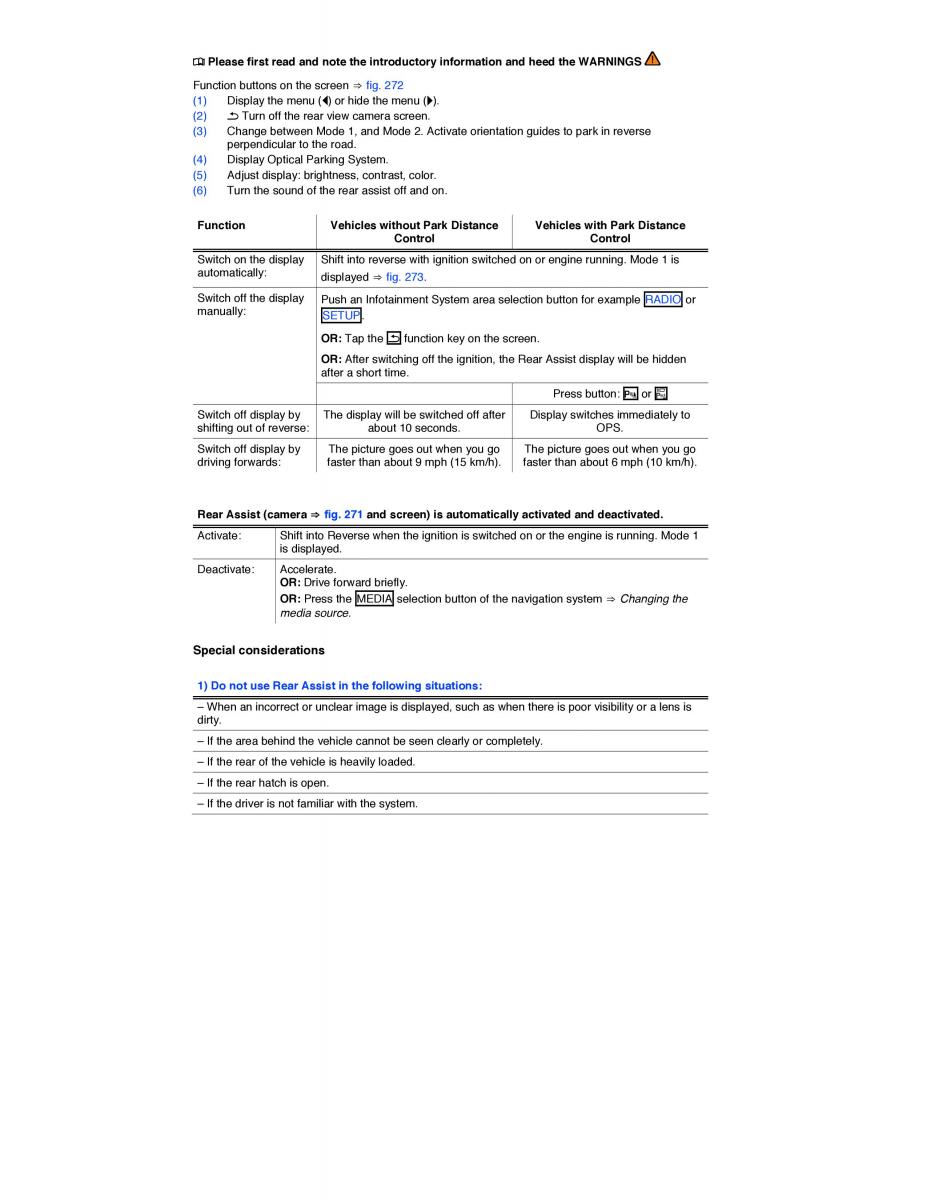

¤ Please first read and note the introductory information and heed the WARNINGS Function buttons on the screen ⇒ fig. 272 (1) Display the menu) or( hide the menu (). (2) E Turn off the rear view camera screen. (3) Change between Mode 1, and Mode 2. Activate orientation guides to park in reverse perpendicular to the road. (4) Display Optical Parking System. (5) Adjust display: brightness, contrast, color. (6) Turn the sound of the rear assist off and on. Function Vehicles without Park Distance Vehicles with Park Distance Control Control Switch on the display Shift into reverse with ignition switched on or engine running. Mode 1 is automatically: displayed ⇒ fig. 273. Switch off the display Push an Infotainment System area selection button for example RADIO or manually: SETUP. OR: Tap the E function key on the screen. OR: After switching off the ignition, the Rear Assist display will be hidden after a short time. Press button: ' or ∗ Switch off display by The display will be switched off after Display switches immediately to shifting out of reverse: about 10 seconds. OPS. Switch off display by The picture goes out when you go The picture goes out when you go driving forwards: faster than about 9 mph (15 km/h). faster than about 6 mph (10 km/h). Rear Assist (camera ⇒ fig. 271 and screen) is automatically activated and deactivated. Activate: Shift into Reverse when the ignition is switched on or the engine is running. Mode 1 is displayed. Deactivate: Accelerate. OR: Drive forward briefly. OR: Press the MEDIA selection button of the navigation system ⇒ Changing the media source. Special considerations 1) Do not use Rear Assist in the following situations: – When an incorrect or unclear image is displayed, such as when there is poor visibility or a lens is dirty. – If the area behind the vehicle cannot be seen clearly or completely. – If the rear of the vehicle is heavily loaded. – If the rear hatch is open. – If the driver is not familiar with the system.
