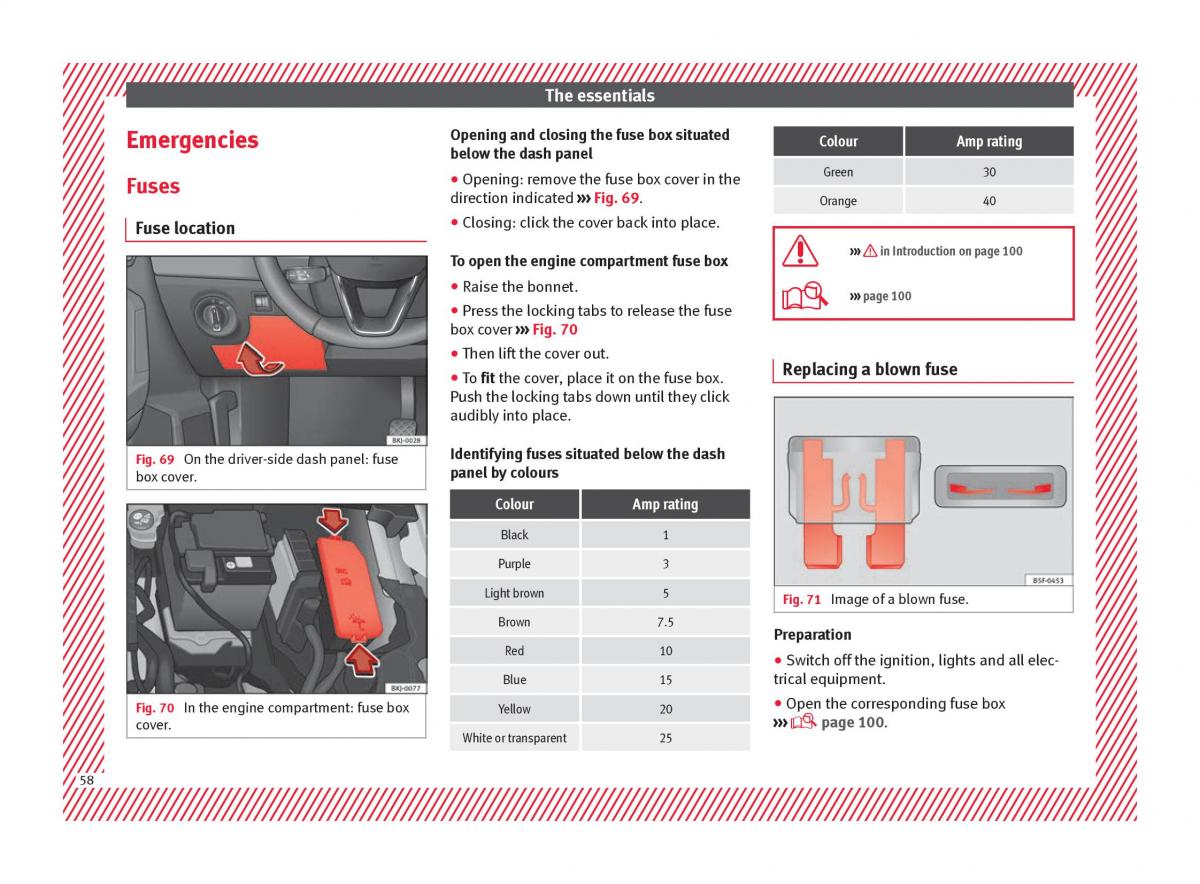

The essentials
Opening and closing the fuse box situated
Emergencies Colour Amp rating
below the dash panel
Green 30
●Opening: remove the fuse box cover in the
Fuses
direction indicated ››› Fig. 69.
Orange 40
●Closing: click the cover back into place.
Fuse location
››› in Introduction on page 100
To open the engine compartment fuse box
●Raise the bonnet.
››› page 100
●Press the locking tabs to release the fuse
box cover ››› Fig. 70
●Then lift the cover out.
Replacing a blown fuse
●To fit the cover, place it on the fuse box.
Push the locking tabs down until they click
audibly into place.
Identifying fuses situated below the dash
Fig. 69 On the driver-side dash panel: fuse
panel by colours
box cover.
Colour Amp rating
Black 1
Purple 3
Light brown 5
Fig. 71 Image of a blown fuse.
Brown 7.5
Preparation
Red 10
●Switch off the ignition, lights and all elec-
Blue 15 trical equipment.
●Open the corresponding fuse box
Fig. 70 In the engine compartment: fuse boxYellow20
››› page 100.
o
c ver.
White or transparent25
58
