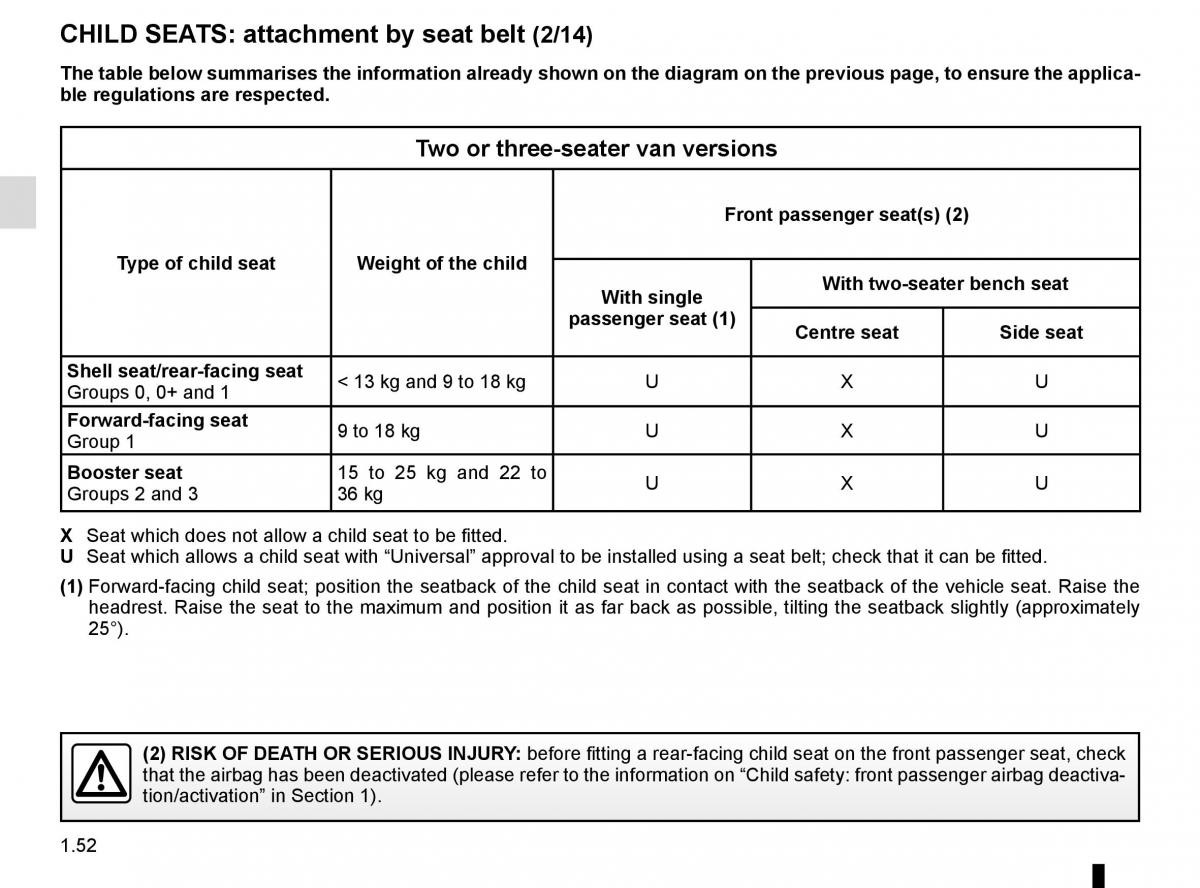

CHILD SEATS: attachment by seat belt (2/14) The table below summarises the information already shown on the diagram on the previous page, to ensure the applica- ble regulations are respected. Two or three-seater van versions Front passenger seat(s) (2) Type of child seatWeight of the child With single With two-seater bench seat passenger seat (1)Centre seatSide seat Shell seat/rear-facing seat< 13 kg and 9 to 18 kgUX U Groups 0, 0+ and 1 Forward-facing seat9 to 18 kg U X U Group 1 Booster seat 15 to 25 kg and 22 to Groups 2 and 3 36 kg UXU X Seat which does not allow a child seat to be fitted. U Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted. (1) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Raise the headrest. Raise the seat to the maximum and position it as far back as possible, tilting the seatback slightly (approximately 25°). (2) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat on the front passenger seat, check that the airbag has been deactivated (please refer to the information on “Child safety: front passenger airbag deactiva- tion/activation” in Section 1). 1.52
