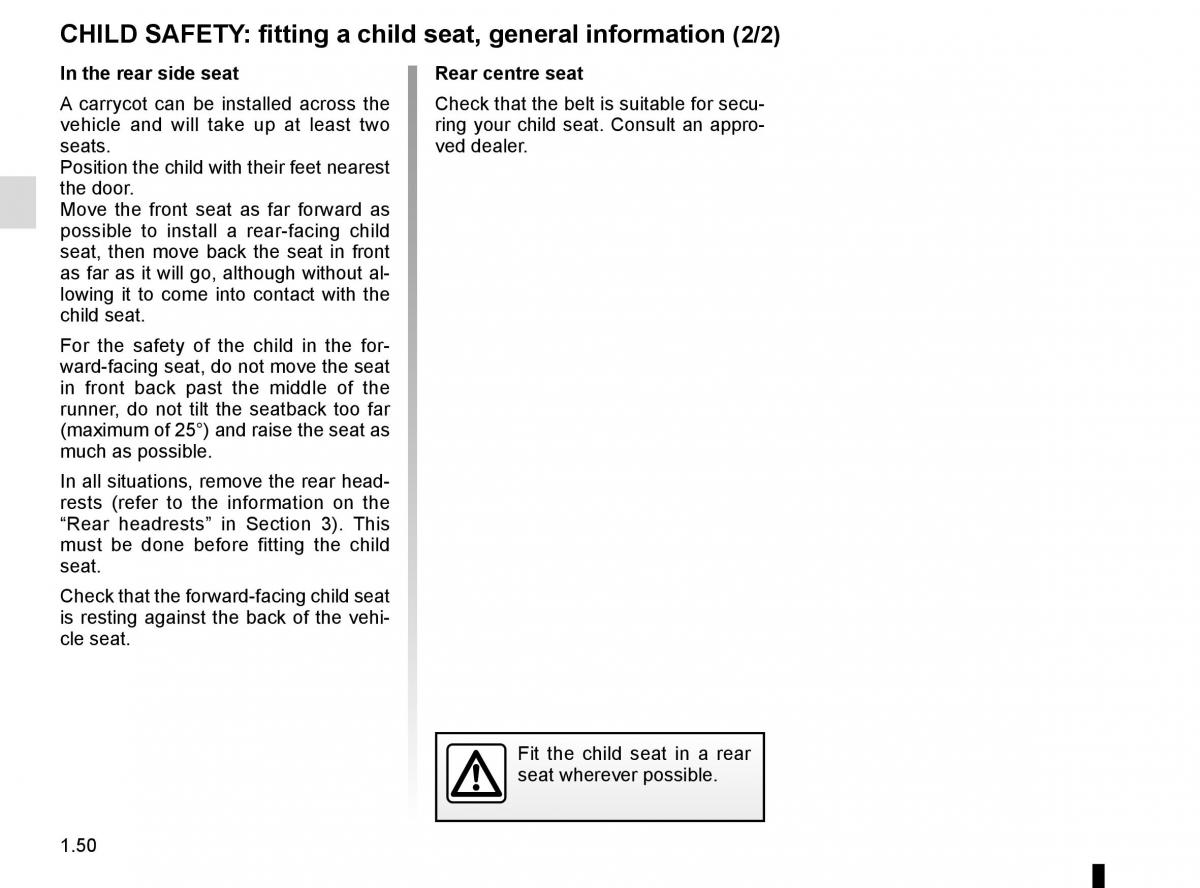

CHILD SAFETY: fitting a child seat, general information (2/2)
In the rear side seat Rear centre seat
A carrycot can be installed across theCheck that the belt is suitable for secu-
vehicle and will take up at least tworing your child seat. Consult an appro-
seats. ved dealer.
Position the child with their feet nearest
the door.
Move the front seat as far forward as
possible to install a rear-facing child
seat, then move back the seat in front
as far as it will go, although without al-
lowing it to come into contact with the
child seat.
For the safety of the child in the for-
ward-facing seat, do not move the seat
in front back past the middle of the
runner, do not tilt the seatback too far
(maximum of 25°) and raise the seat as
much as possible.
In all situations, remove the rear head-
rests (refer to the information on the
“Rear headrests” in Section 3). This
must be done before fitting the child
seat.
Check that the forward-facing child seat
is resting against the back of the vehi-
cle seat.
Fit the child seat in a rear
seat wherever possible.
1.50
