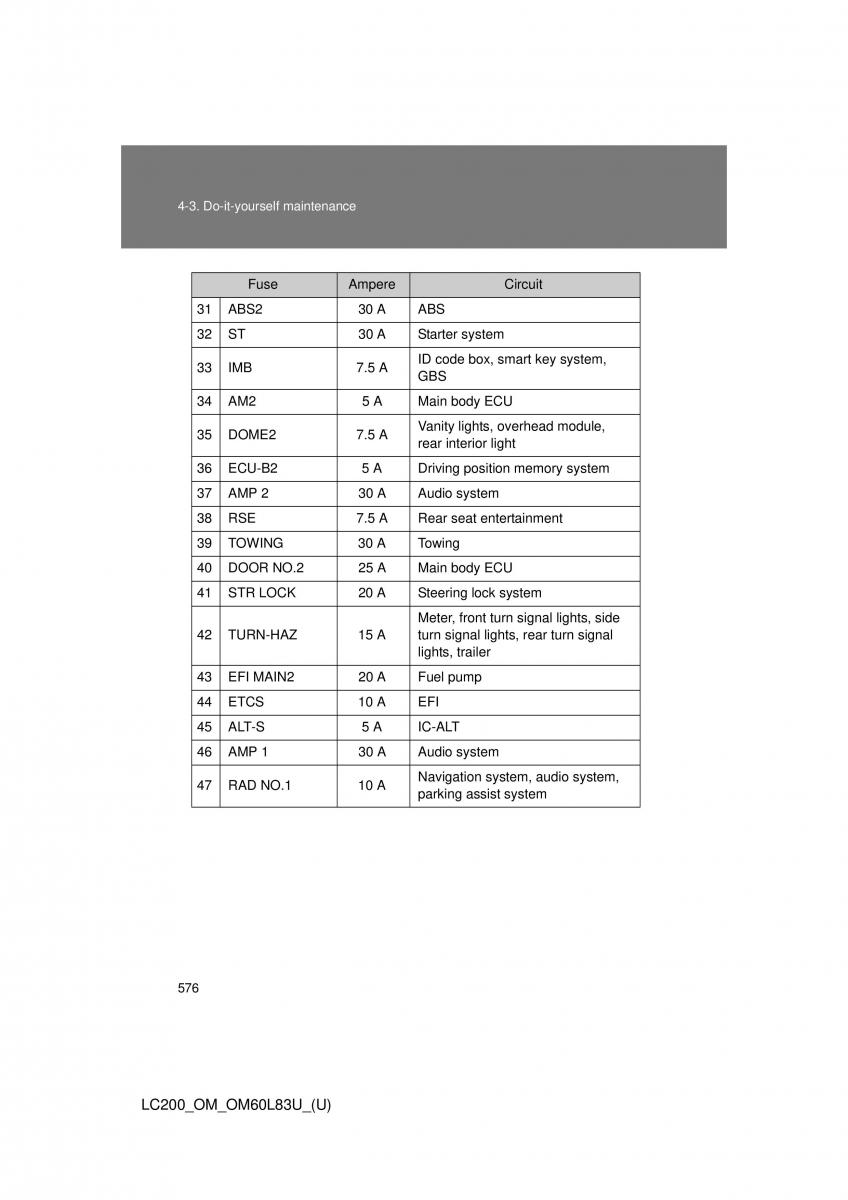

4-3. Do-it-yourself maintenance
Fuse Ampere Circuit
31 ABS2 30 A ABS
32 ST 30 A Starter system
33 IMB 7.5 A ID code box, smart key system,
GBS
34 AM2 5 A Main body ECU
35 DOME2 7.5 A Vanity lights, overhead module,
rear interior light
36 ECU-B2 5 A Driving position memory system
37 AMP 2 30 A Audio system
38 RSE 7.5 A Rear seat entertainment
39 TOWING 30 A Towing
40 DOOR NO.2 25 A Main body ECU
41 STR LOCK 20 A Steering lock system
Meter, front turn signal lights, side
42 TURN-HAZ 15 A turn signal lights, rear turn signal
lights, trailer
43 EFI MAIN2 20 A Fuel pump
44 ETCS 10 A EFI
45 ALT-S 5 A IC-ALT
46 AMP 1 30 A Audio system
47 RAD NO.1 10 A Navigation system, audio system,
parking assist system
576
LC200_OM_OM60L83U_(U)
