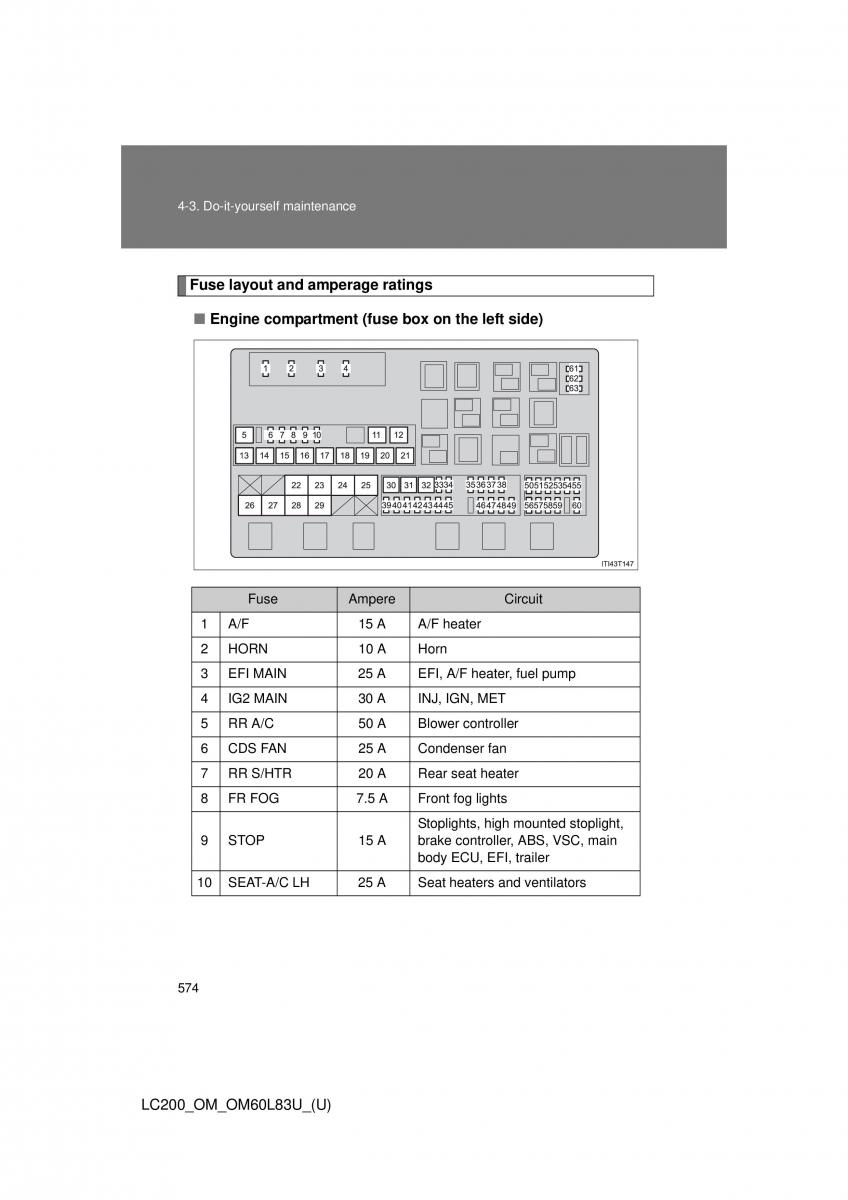

4-3. Do-it-yourself maintenance
Fuse layout and amperage ratings
■Engine compartment (fuse box on the left side)
Fuse Ampere Circuit
1 A/F 15 A A/F heater
2 HORN 10 A Horn
3 EFI MAIN 25 A EFI, A/F heater, fuel pump
4 IG2 MAIN 30 A INJ, IGN, MET
5 RR A/C 50 A Blower controller
6 CDS FAN 25 A Condenser fan
7 RR S/HTR 20 A Rear seat heater
8 FR FOG 7.5 A Front fog lights
Stoplights, high mounted stoplight,
9 STOP 15 A brake controller, ABS, VSC, main
body ECU, EFI, trailer
10 SEAT-A/C LH 25 A Seat heaters and ventilators
574
LC200_OM_OM60L83U_(U)
