text version of content this owner's manual page from owners manual to the vehicle Mercedes ML, year of production 2005 - 2011:

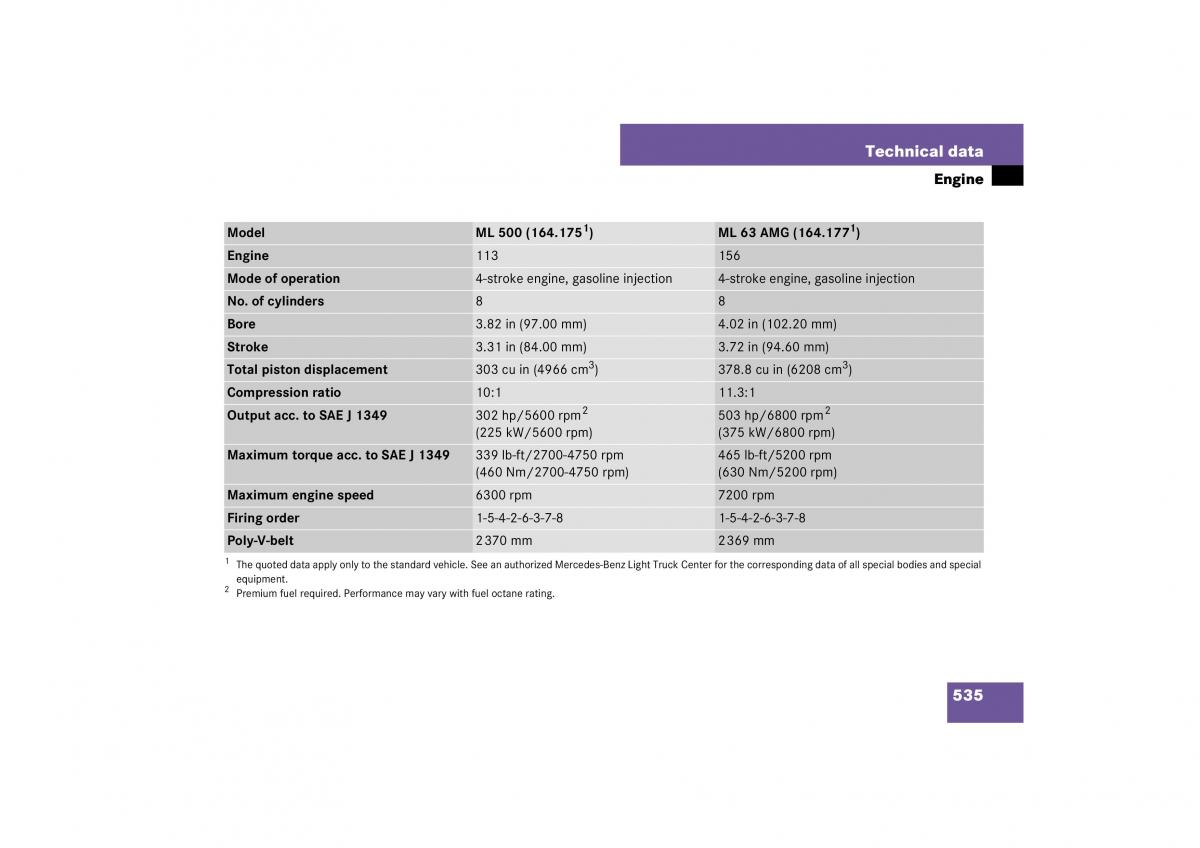

Technical data
Engine
1 1
Model ML500 (164.175 ) ML63AMG (164.177 )
Engine 113 156
Mode of operation 4-stroke engine, gasoline injection 4-stroke engine, gasoline injection
No. of cylinders 8 8
Bore 3.82 in (97.00 mm) 4.02 in (102.20 mm)
Stroke 3.31 in (84.00 mm) 3.72 in (94.60 mm)
3 3
Total piston displacement 303cuin (4966cm ) 378.8 cu in (6208 cm )
Compression ratio 10:1 11.3:1
Output acc. to SAE J 1349 302hp/5600rpm2 503hp/6800rpm2
(225 kW/5600rpm) (375 kW/6800rpm)
Maximum torque acc. to SAE J 1349 339lb-ft/2700-4750 rpm 465lb-ft/5200 rpm
(460 Nm/2700-4750rpm) (630 Nm/5200rpm)
Maximum engine speed 6300rpm 7200rpm
Firing order 1-5-4-2-6-3-7-8 1-5-4-2-6-3-7-8
Poly-V-belt 2370mm 2369mm
1 The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Light Truck Center for the corresponding da ta of all special bodies and special
equipment.
2 Premium fuel required. Performance may vary with fuel octane rating.
535
