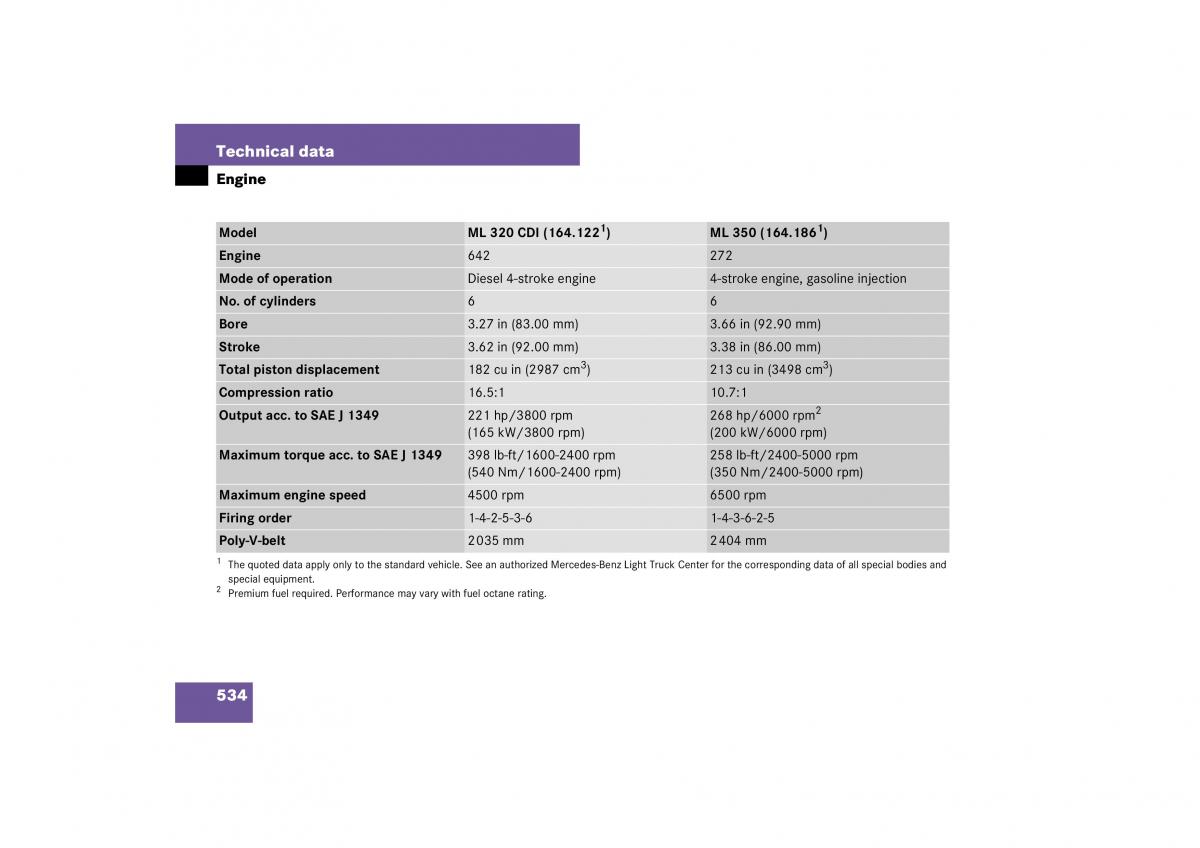

Technical data
Engine
1 1
Model ML320CDI (164.122) ML350 (164.186 )
Engine 642 272
Mode of operation Diesel 4-stroke engine 4-stroke engine, gasoline injection
No. of cylinders 6 6
Bore 3.27 in (83.00 mm) 3.66 in (92.90 mm)
Stroke 3.62 in (92.00 mm) 3.38 in (86.00 mm)
3 3
Total piston displacement 182cuin (2987 cm ) 213cuin (3498cm )
Compression ratio 16.5:1 10.7:1
2
Output acc. to SAE J 1349 221hp/3800rpm 268hp/6000rpm
(165 kW/3800rpm) (200 kW/6000rpm)
Maximum torque acc. to SAE J 1349 398lb-ft/1600-2400 rpm 258lb-ft/2400-5000 rpm
(540 Nm/1600-2400rpm) (350 Nm/2400-5000rpm)
Maximum engine speed 4500rpm 6500rpm
Firing order 1-4-2-5-3-6 1-4-3-6-2-5
Poly-V-belt 2035mm 2404mm
1 The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Light Truck Center for the corresponding data of all special bodies and
special equipment.
2 Premium fuel required. Performance may vary with fuel octane rating.
534
