text version of content this owner's manual page from owners manual to the vehicle Toyota Auris Hybrid, year of production 2013:
UK AURIS_HV_HB_OM_EE_OM12J68E.book 536 ページ 㧞㧜㧝５年㧞月㧞㧟日 月曜日 午後㧝㧜時㧟８分

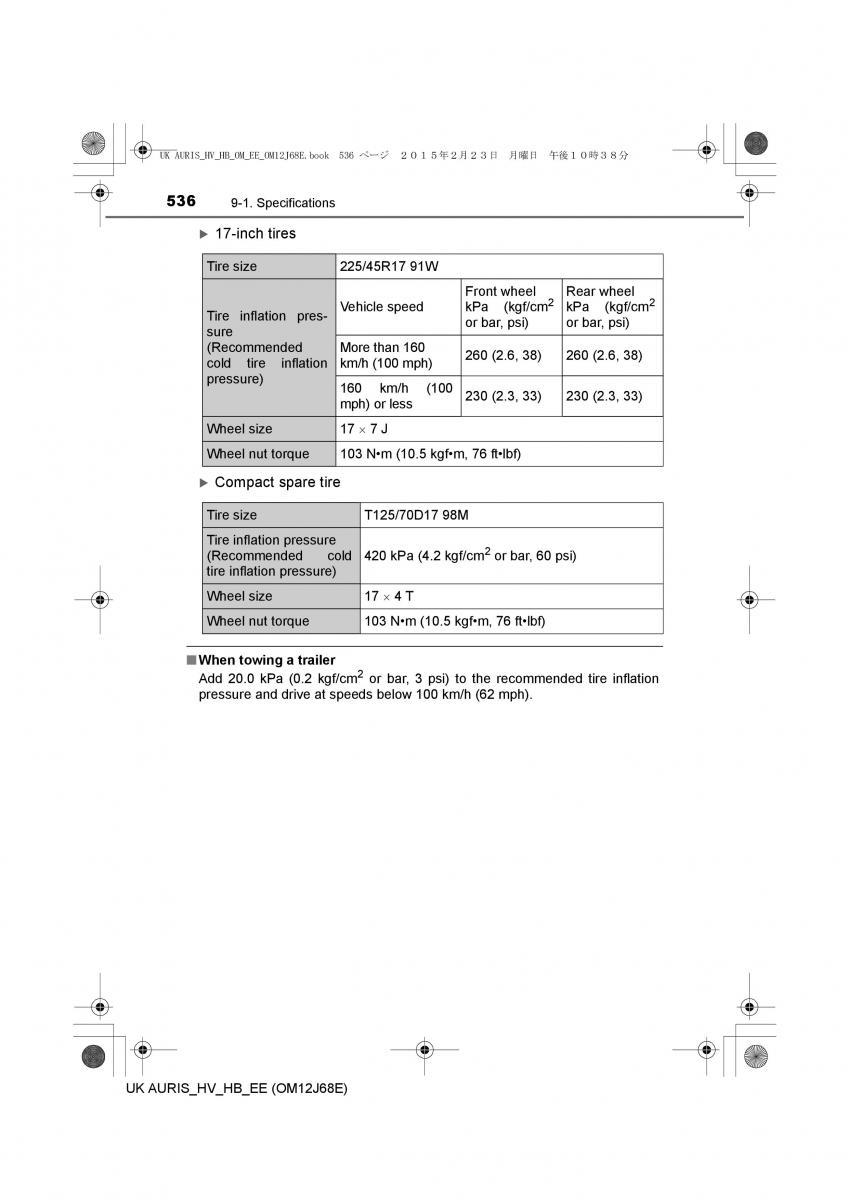

536 9-1. Specifications
X 17-inch tires
Tire size 225/45R17 91W
Front wheel 2 Rear wheel 2
Vehicle speed kPa (kgf/cm kPa (kgf/cm
Tire inflation pres- or bar, psi) or bar, psi)
sure
(Recommended More than 160 260 (2.6, 38) 260 (2.6, 38)
cold tire inflatioknm/h (100 mph)
pressure) 160 km/h (100
mph) or less 230 (2.3, 33) 230 (2.3, 33)
Wheel size 17 × 7 J
Wheel nut torque 103 Nm (10.5 kgfm, 76 ftlbf)
X Compact spare tire
Tire size T125/70D17 98M
Tire inflation pressure 2
(Recommended cold420 kPa (4.2 kgf/cm or bar, 60 psi)
tire inflation pressure)
Wheel size 17 × 4 T
Wheel nut torque 103 Nm (10.5 kgfm, 76 ftlbf)
■When towing a trailer
2
Add 20.0 kPa (0.2 kgf/c orm bar, 3 psi) to the recommended tire inflation
pressure and drive at speeds below 100 km/h (62 mph).
