UK AURIS_HV_HB_OM_EE_OM12J68E.book 533 ページ 㧞㧜㧝５年㧞月㧞㧟日 月曜日 午後㧝㧜時㧟８分

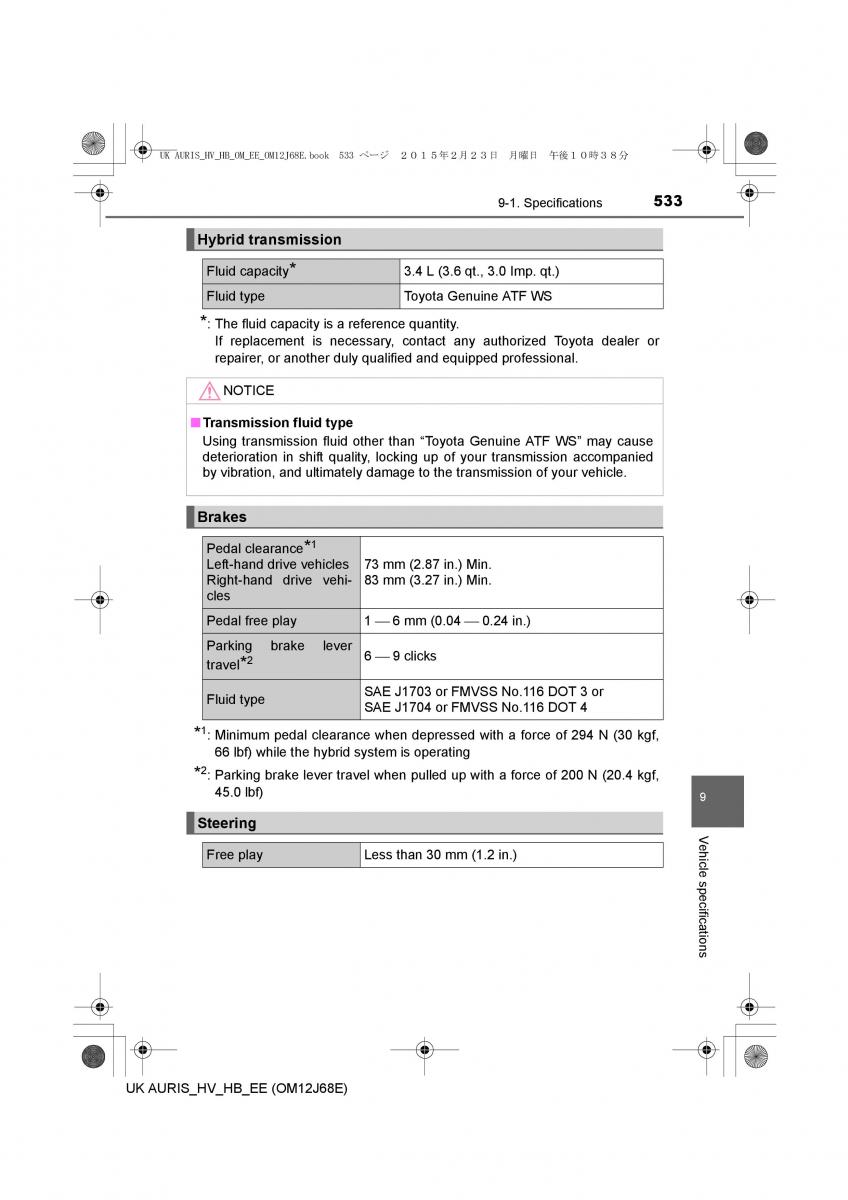

9-1. Specifications 533
Hybrid transmission
Fluid capacity* 3.4 L (3.6 qt., 3.0 Imp. qt.)
Fluid type Toyota Genuine ATF WS
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration, and ultimately damage to the transmission of your vehicle.
Brakes
1
Pedal clearance*
Left-hand drive vehicles73 mm (2.87 in.) Min.
Right-hand drive vehi8-3 mm (3.27 in.) Min.
cles
Pedal free play 1 6 mm (0.04 0.24 in.)
Parking brake lever
2 6 9 clicks
*
travel
Fluid type SAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4
1
* : Minimum pedal clearance when depressed with a force of 294 N (30 kgf,
66 lbf) while the hybrid system is operating
2
* : Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,
45.0 lbf) 9
Steering V
e
h
Free play Less than 30 mm (1.2 in.) i
cl
e s
p
e
c
i
f
ic
at
i
o
ns
UK AURIS_HV_HB_EE (OM12J68E)
