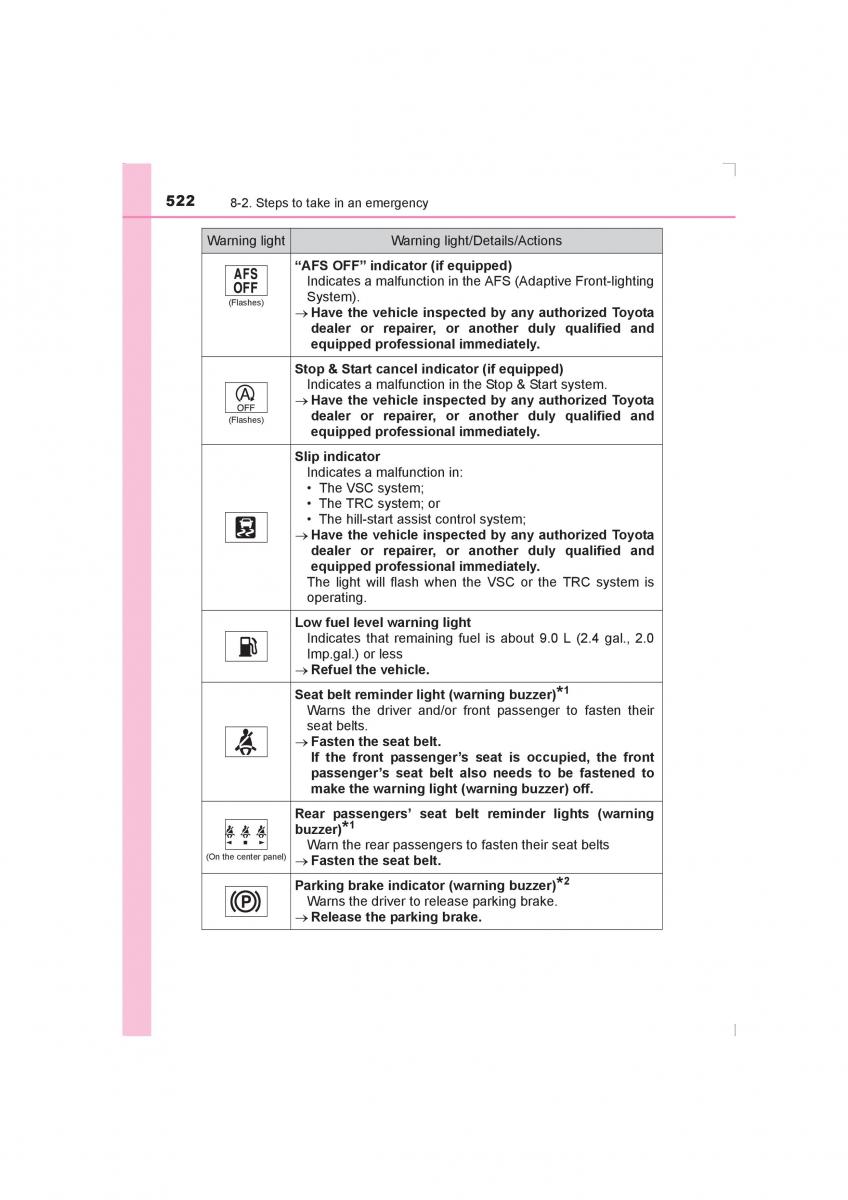

AVENSIS_OM_OM20C20E_(EE).book Page 522 Thursday, January 29, 2015 1:47 PM
522 8-2. Steps to take in an emergency
Warning light Warning light/Details/Actions
“AFS OFF” indicator (if equipped)
Indicates a malfunction in the AFS (Adaptive Front-lighting
(Flashes) System).
→Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional immediately.
Stop & Start cancel indicator (if equipped)
Indicates a malfunction in the Stop & Start system.
→Have the vehicle inspected by any authorized Toyota
(Flashes) dealer or repairer, or another duly qualified and
equipped professional immediately.
Slip indicator
Indicates a malfunction in:
The VSC system;
The TRC system; or
The hill-start assist control system;
→Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional immediately.
The light will flash when the VSC or the TRC system is
operating.
Low fuel level warning light
Indicates that remaining fuel is about 9.0 L (2.4 gal., 2.0
Imp.gal.) or less
→Refuel the vehicle.
1
Seat belt reminder light (warning buzzer)*
Warns the driver and/or front passenger to fasten their
seat belts.
→Fasten the seat belt.
If the front passenger’s seat is occupied, the front
passenger’s seat belt also needs to be fastened to
make the warning light (warning buzzer) off.
Rear passengers’ seat belt reminder lights (warning
1
buzzer)*
Warn the rear passengers to fasten their seat belts
(On the center panel) → Fasten the seat belt.
2
Parking brake indicator (warning buzzer)*
Warns the driver to release parking brake.
→Release the parking brake.
AVENSIS_OM_OM20C20E_(EE)
