text version of content this owner's manual page from owners manual to the vehicle Subaru XV, year of production 2011:

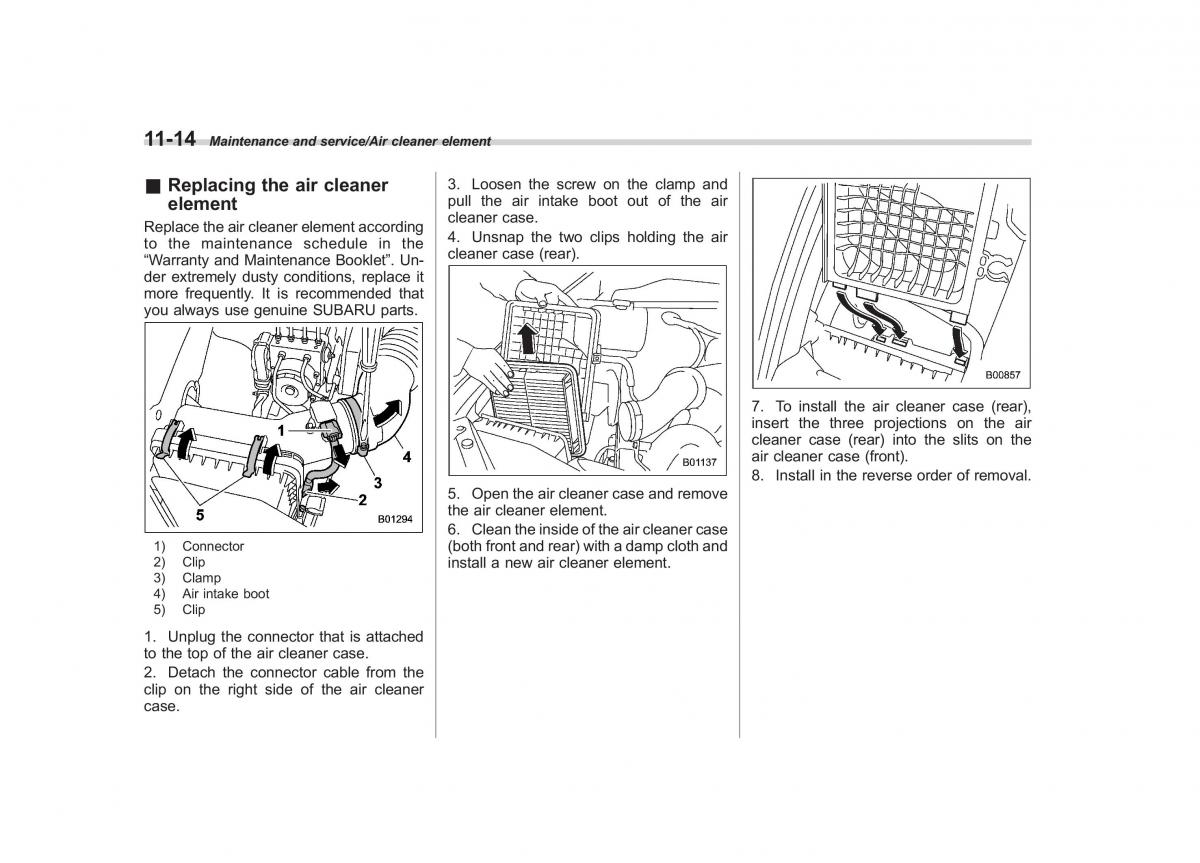

11-14 Maintenance and service/Air cleaner element &Replacing the air cleaner3. Loosen the screw on the clamp and element pull the air intake boot out of the air Replacetheair cleaner element accordingcleaner case. to the maintenance schedule in the 4. Unsnap the two clips holding the air “Warranty and Maintenance Booklet”. Un-cleaner case (rear). der extremely dusty conditions, replace it more frequently. It is recommended that you always use genuine SUBARU parts. 7. To install the air cleaner case (rear), insert the three projections on the air cleaner case (rear) into the slits on the air cleaner case (front). 8. Install in the reverse order of removal. 5. Opentheair cleaner case and remove the air cleaner element. 6. Cleantheinsideoftheaircleanercase 1)Connector (both front and rear) with a damp cloth and 2)Clip install a new air cleaner element. 3)Clamp 4)Air intake boot 5)Clip 1. Unplug the connector that is attached to the top of the air cleaner case. 2. Detach the connector cable from the clip on the right side of the air cleaner case.
