text version of content this owner's manual page from owners manual to the vehicle Subaru XV, year of production 2011:

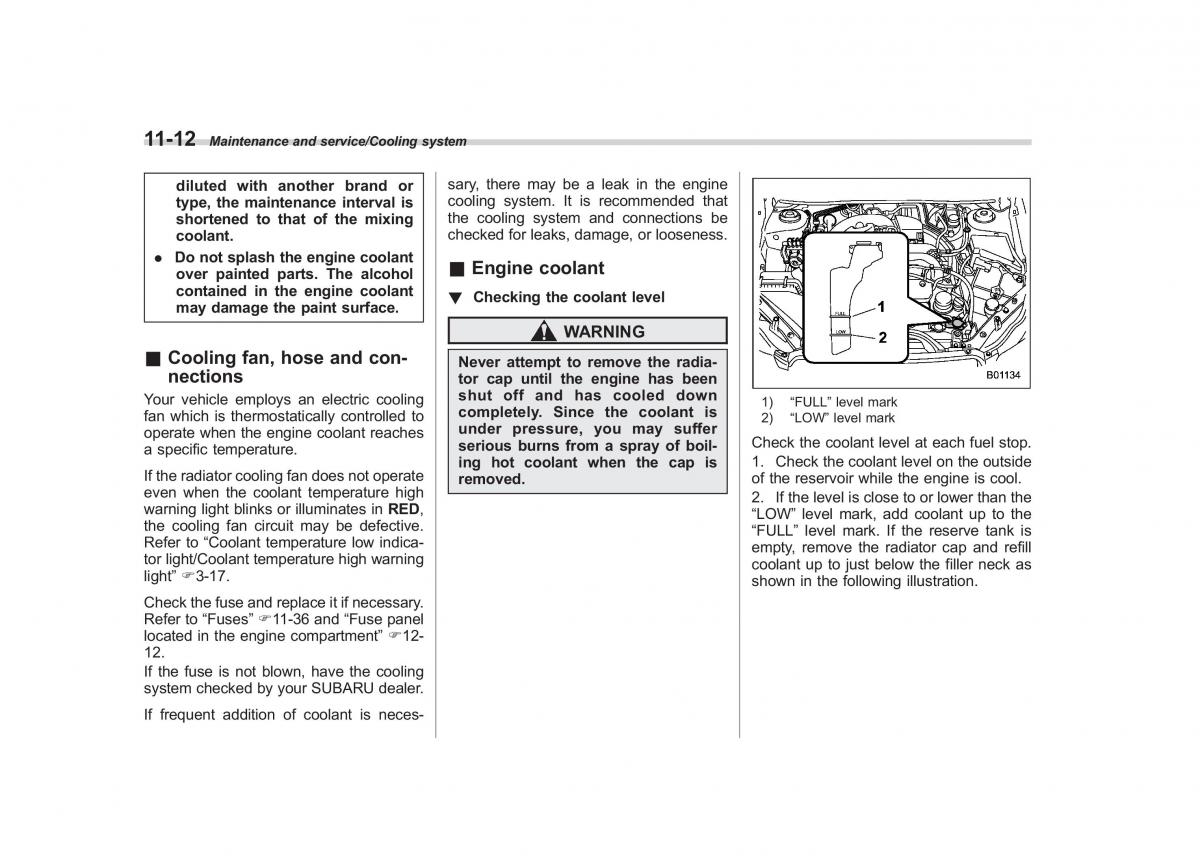

11-12 Maintenance and service/Cooling system diluted with another brand orsary, there may be a leak in the engine type, the maintenance interval iscooling system. It is recommended that shortened to that of the mixingthe cooling system and connections be coolant. checked for leaks, damage, or looseness. . Donotsplash the engine coolant&Engine coolant over painted parts. The alcohol contained in the engine coolant! Checking the coolant level maydamagethe paint surface. WARNING &Cooling fan, hose and con- Never attempt to remove the radia- nections tor cap until the engine has been Your vehicle employs an electric coolingshut off and has cooled down1)“FULL” level mark fan which is thermostatically controlled tocompletely. Since the coolant is2)“LOW” level mark operate when the engine coolant reachesunder pressure, you may suffer a specific temperature. serious burns from a spray of boil-Check the coolant level at each fuel stop. ing hot coolant when the cap is1. Check the coolant level on the outside If the radiator cooling fan does not operateremoved. of the reservoir while the engine is cool. even when the coolant temperature high 2. If the level is close to or lower than the warning light blinks or illuminates in RED, “LOW” level mark, add coolant up to the the cooling fan circuit may be defective. “FULL” level mark. If the reserve tank is Refer to “Coolant temperature low indica- empty, remove the radiator cap and refill tor light/Coolant temperature high warning coolant up to just below the filler neck as light” F3-17. shown in the following illustration. Checkthefuseandreplaceitifnecessary. Refer to “Fuses” F11-36 and “Fuse panel located in the engine compartment” F12- 12. If the fuse is not blown, have the cooling system checked by your SUBARU dealer. If frequent addition of coolant is neces-
