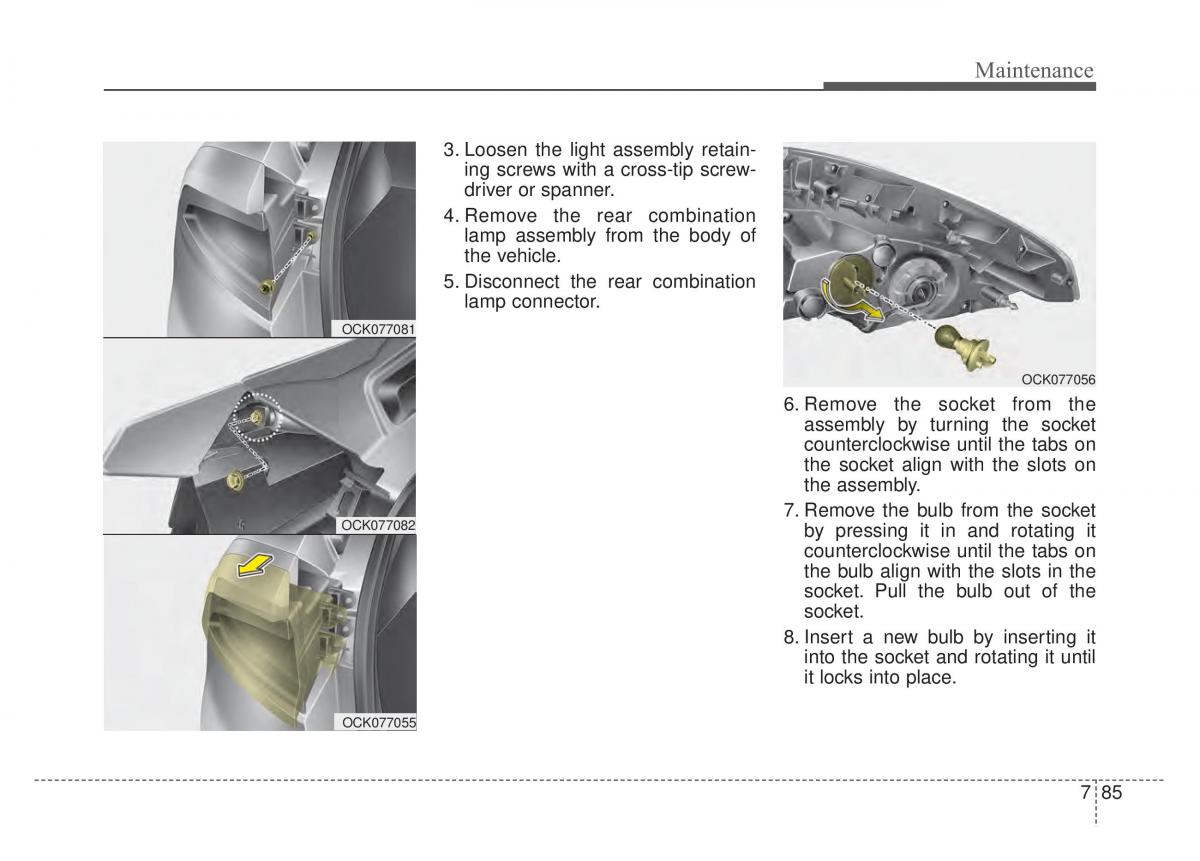

Maintenance 3. Loosen the light assembly retain- ing screws with a cross-tip screw- driver or spanner. 4. Remove the rear combination lamp assembly from the body of the vehicle. 5. Disconnect the rear combination lamp connector. OCK077081 OCK077056 6. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly. OCK077082 7. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket. 8. Insert a new bulb by inserting it into the socket and rotating it until it locks into place. OCK077055 785
