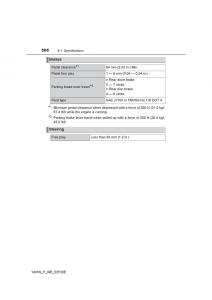

508 9-1. Specifications
Brakes
Pedal clearance*1 64 mm (2.52 in.) Min.
Pedal free play 1 — 6 mm (0.04 — 0.24 in.)
XRear drum brake
2 5 — 7 clicks
Parking brake lever travel*XRear disc brake
4 — 6 clicks
Fluid type SAE J1704 or FMVSS No.116 DOT 4
1
* : Minimum pedal clearance when depressed with a force of 300 N (31.0 kgf,
67.4 lbf) while the engine is running
2
* : Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,
45.0 lbf)
Steering
Free play Less than 30 mm (1.2 in.)
YARIS_F_WE_52F20E
