text version of content this owner's manual page from owners manual to the vehicle VW Touareg, year of production 2010:

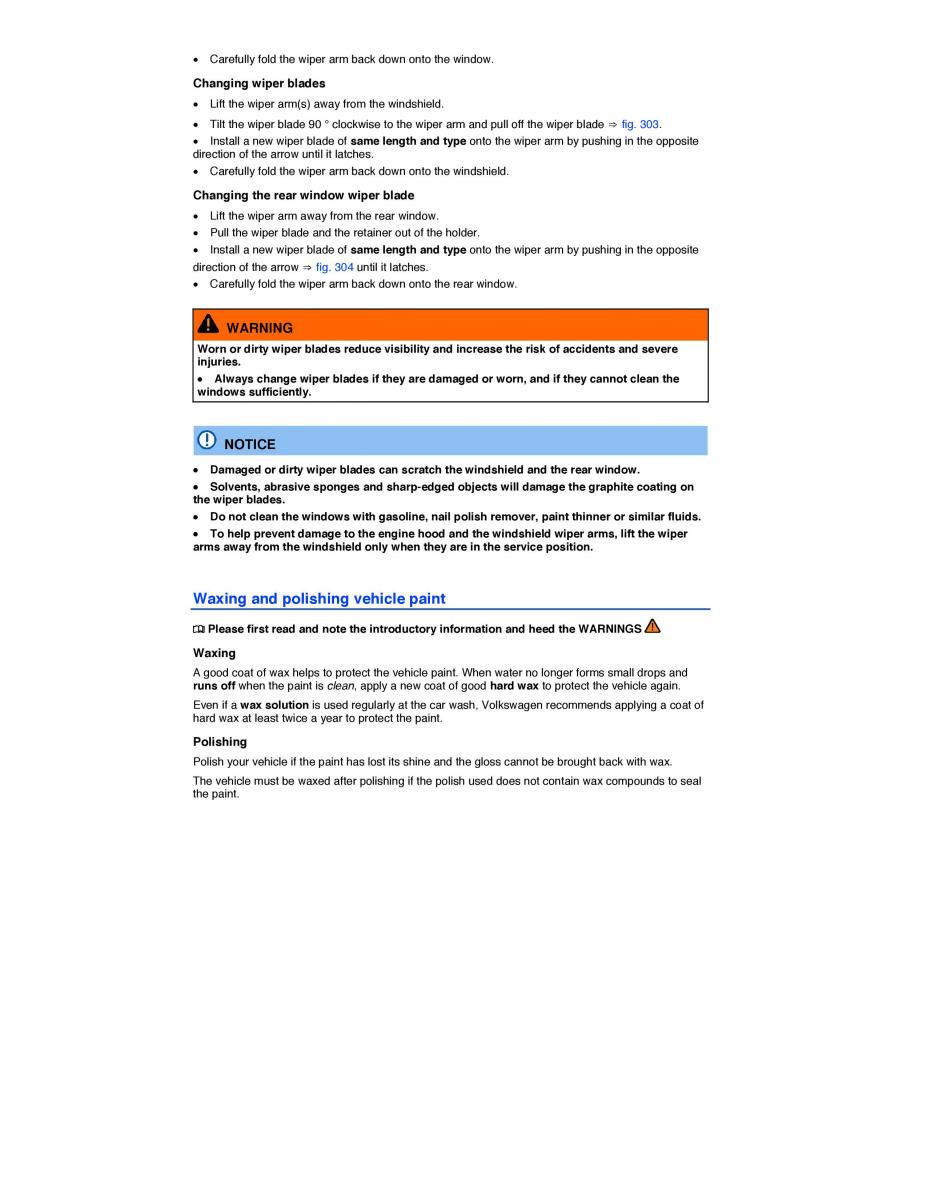

x Carefully fold the wiper arm back down onto the window. Changing wiper blades x Lift the wiper arm(s) away from the windshield. x Tilt the wiper blade 90 ° clockwise to the wiper arm and pull off the wiper blade⇒ fig. 303. x Install a new wiper blade osamf e length and type onto the wiper arm by pushing in the opposite direction of the arrow until it latches. x Carefully fold the wiper arm back down onto the windshield. Changing the rear window wiper blade x Lift the wiper arm away from the rear window. x Pull the wiper blade and the retainer out of the holder. x Install a new wiper blade osamf e length and type onto the wiper arm by pushing in the opposite direction of the arrow ⇒ fig. 304 until it latches. x Carefully fold the wiper arm back down onto the rear window. WARNING Worn or dirty wiper blades reduce visibility and increase the risk of accidents and severe injuries. x Always change wiper blades if they are damaged or worn, and if they cannot clean the windows sufficiently. NOTICE x Damaged or dirty wiper blades can scratch the windshield and the rear window . x Solvents, abrasive sponges and sharp-edged objects will damage the graphite coating on the wiper blades. x Do not clean the windows with gasoline, nail polish remover, paint thinner or similar fluids . x To help prevent damage to the engine hood and the windshield wiper arms, lift the wiper arms away from the windshield only when they are in the service position. Waxing and polishing vehicle paint ¤ Please first read and note the introductory information and heed the WARNINGS Waxing A good coat of wax helps to protect the vehicle paint. When water no longer forms small drops and runs off when the paint is clean, apply a new coat of good hard wax to protect the vehicle again. Even if a wax solution is used regularly at the car wash, Volkswagen recommends applying a coat of hard wax at least twice a year to protect the paint. Polishing Polish your vehicle if the paint has lost its shine and the gloss cannot be brought back with wax. The vehicle must be waxed after polishing if the polish used does not contain wax compounds to seal the paint.
