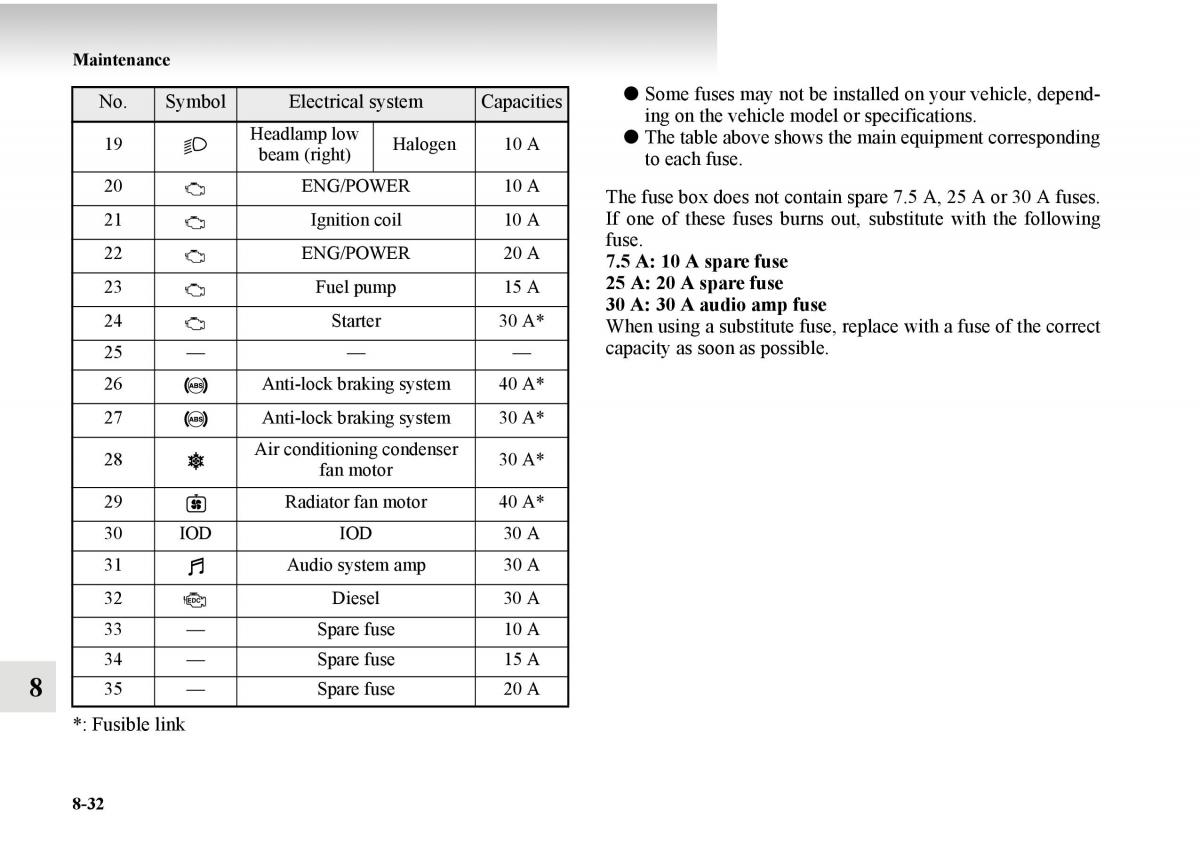

text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Outlander, year of production 2006 - 2013:

Maintenance No. Symbol Electrical systemCapacities●Some fuses may not be installed on your vehicle, depend- Headlamp low ing on the vehicle model or specifications. 19 beam (right)Halogen10 A ●The table above shows the main equipment corresponding to each fuse. 20 ENG/POWER 10 A The fuse box does not contain spare 7.5 A, 25 A or 30 A fuses. 21 Ignition coil 10 A If one of these fuses burn substis out,tute with the following 22 ENG/POWER 20 A fuse. 7.5 A: 10 A spare fuse 23 Fuel pump 15 A 25 A: 20 A spare fuse 24 Starter 30 A* 30 A: 30 A audio amp fuse When using a substitute fuse, replace with a fuse of the correct 25 — — — capacity as soon as possible. 26 Anti-lock braking system40 A* 27 Anti-lock braking system30 A* 28 Air conditioning condenser 30 A* fan motor 29 Radiator fan motor40 A* 30 IOD IOD 30 A 31 Audio system amp30 A 32 Diesel 30 A 33 — Spare fuse 10 A 34 — Spare fuse 15 A 8 35 — Spare fuse 20 A *: Fusible link 8-32
