text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Outlander, year of production 2006 - 2013:

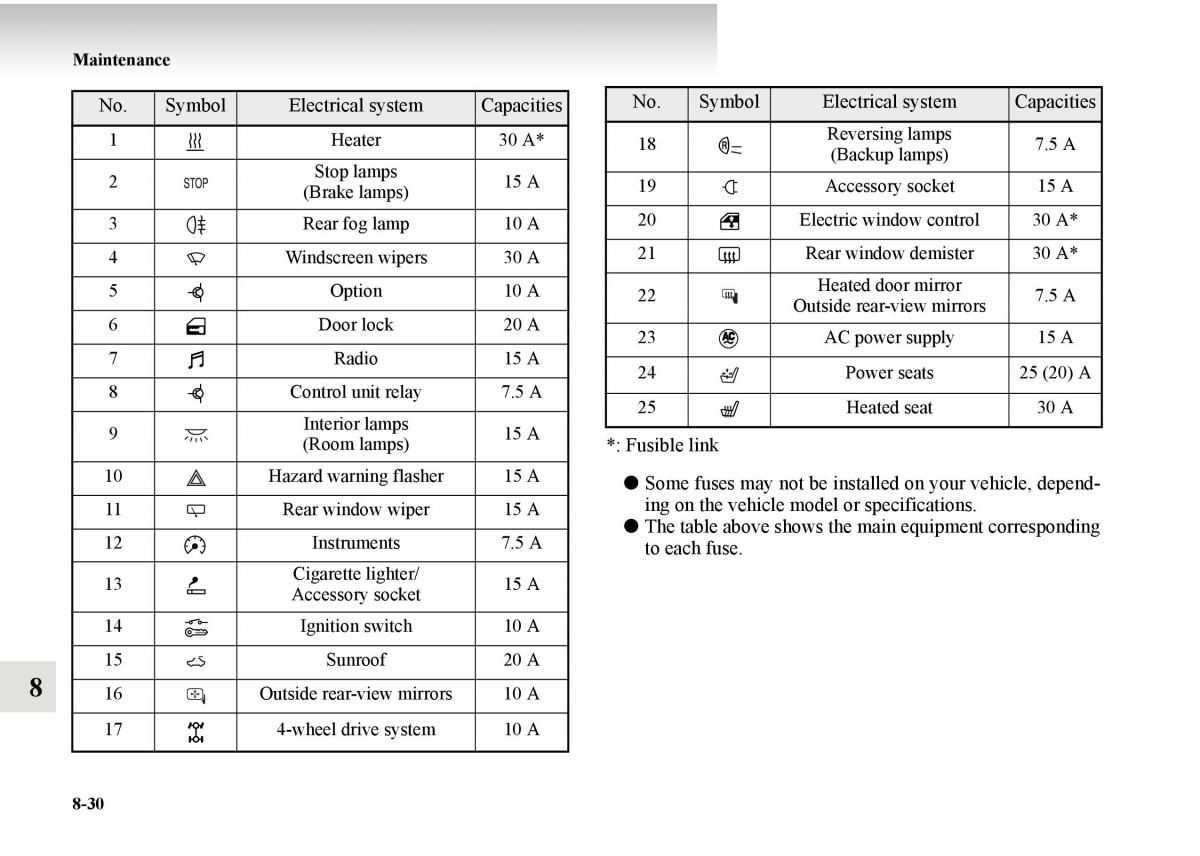

Maintenance No. Symbol Electrical systemCapacitiesNo.Symbol Electrical systemCapacities 1 Heater 30 A* 18 Reversing lamps7.5 A Stop lamps (Backup lamps) 2 (Brake lamps) 15 A 19 Accessory socket15 A 3 Rear fog lamp 10 A 20 Electric window control30 A* 4 Windscreen wipers30 A 21 Rear window demister30 A* 5 Option 10 A 22 Heated door mirror7.5 A Outside rear-view mirrors 6 Door lock 20 A 23 AC power supply 15 A 7 Radio 15 A 24 Power seats 25 (20) A 8 Control unit relay7.5 A 25 Heated seat 30 A 9 Interior lamps15 A (Room lamps) *: Fusible link 10 Hazard warning flasher15 A●Some fuses may not be installed on your vehicle, depend- 11 Rear window wiper15 A ing on the vehicle model or specifications. 12 Instruments 7.5 A ●The table above shows the main equipment corresponding to each fuse. 13 Cigarette lighter/15 A Accessory socket 14 Ignition switch10 A 15 Sunroof 20 A 8 16 Outside rear-view mirrors10 A 17 4-wheel drive system10 A 8-30
