text version of content this owner's manual page from owners manual to the vehicle Toyota Auris Hybrid, year of production 2013:
UK AURIS_HV_HB_OM_EE_OM12J68E.book 488 ページ 㧞㧜㧝５年㧞月㧞㧟日 月曜日 午後㧝㧜時㧟８分

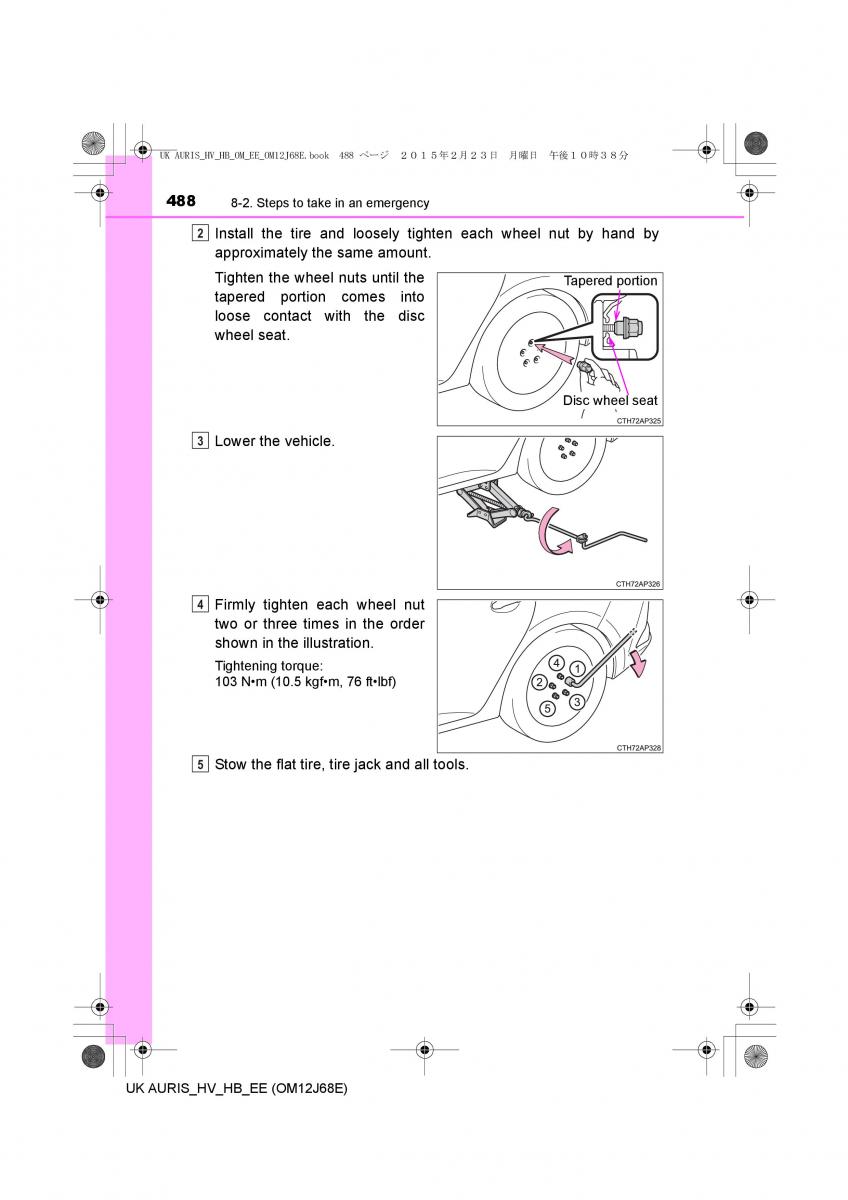

488 8-2. Steps to take in an emergency
2 Install the tire and loosely tighten each wheel nut by hand by
approximately the same amount.
Tighten the wheel nuts until the Tapered portion
tapered portion comes into
loose contact with the disc
wheel seat.
Disc wheel seat
3 Lower the vehicle.
4 Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
103 Nm (10.5 kgfm, 76 ftlbf)
5 Stow the flat tire, tire jack and all tools.
UK AURIS_HV_HB_EE (OM12J68E)
