owners manual Toyota Auris Hybrid

all ratings: 0 average rating: 5

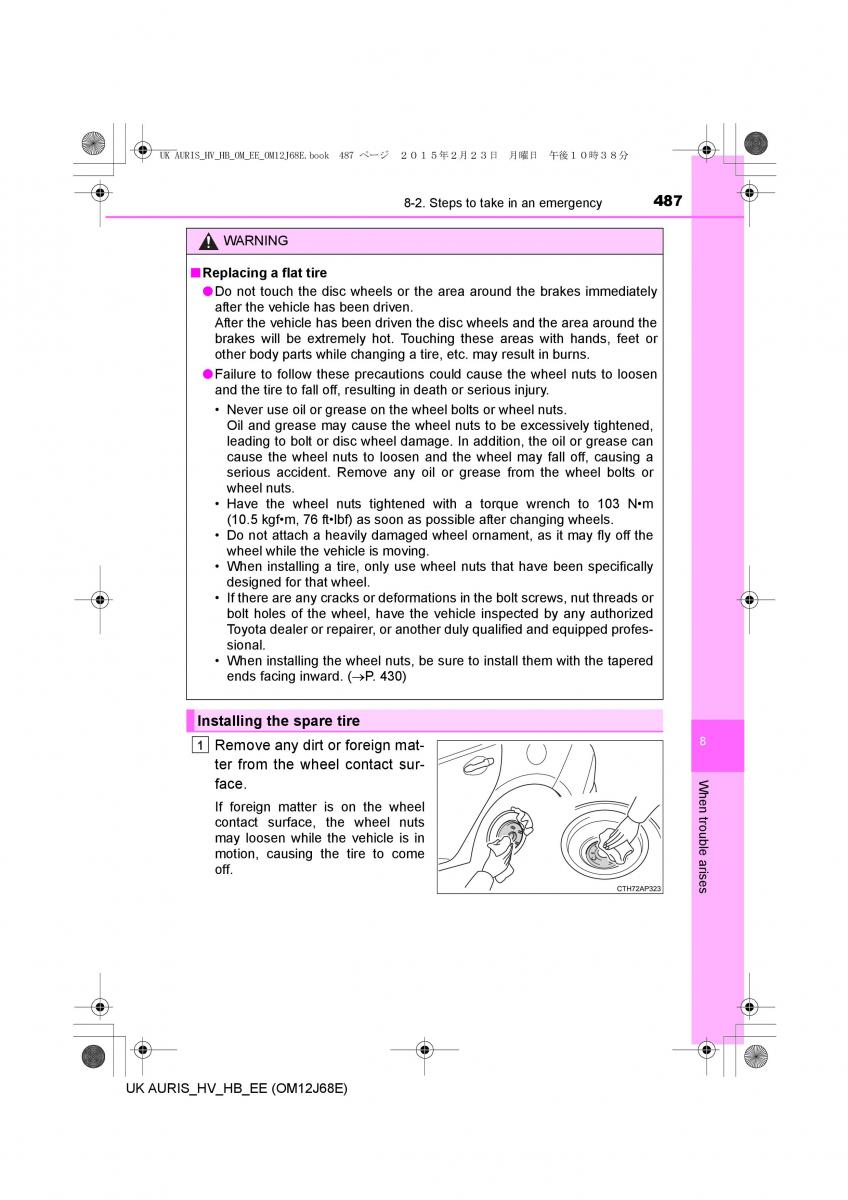

UK AURIS_HV_HB_OM_EE_OM12J68E.book 487 ページ 㧞㧜㧝５年㧞月㧞㧟日　月曜日　午後㧝㧜時㧟８分 8-2. Steps to take in an emergency487 WARNING ■Replacing a flat tire ●Do not touch the disc wheels or the area around the brakes immediately after the vehicle has been driven. After the vehicle has been driven the disc wheels and the area around the brakes will be extremely hot. Touching these areas with hands, feet or other body parts while changing a tire, etc. may result in burns. ●Failure to follow these precautions could cause the wheel nuts to loosen and the tire to fall off, resulting in death or serious injury. • Never use oil or grease on the wheel bolts or wheel nuts. Oil and grease may cause the wheel nuts to be excessively tightened, leading to bolt or disc wheel damage. In addition, the oil or grease can cause the wheel nuts to loosen and the wheel may fall off, causing a serious accident. Remove any oil or grease from the wheel bolts or wheel nuts. • Have the wheel nuts tightened with a torque wrench to 103 N•m (10.5 kgf•m, 76 ft•lbf) as soon as possible after changing wheels. • Do not attach a heavily damaged wheel ornament, as it may fly off the wheel while the vehicle is moving. • When installing a tire, only use wheel nuts that have been specifically designed for that wheel. • If there are any cracks or deformations in the bolt screws, nut threads or bolt holes of the wheel, have the vehicle inspected by any authorized Toyota dealer or repairer, or another duly qualified and equipped profes- sional. • When installing the wheel nuts, be sure to install them with the tapered ends facing inward. (→P. 430) Installing the spare tire 1 Remove any dirt or foreign mat- 8 ter from the wheel contact sur- face. W If foreign matter is on the wheel hen contact surface, the wheel nuts trou may loosen while the vehicle is in bl motion, causing the tire to come e ari off. s e s UK AURIS_HV_HB_EE (OM12J68E)
