owners manual VW Touareg

owners manual VW Touareg - year of production: 2010 - VW Touareg II 2 owners manual EN

Document: pdf (9.85 MB) 620 pages

all ratings: 1 average rating: 3

text version of content this owner's manual page from owners manual to the vehicle VW Touareg, year of production 2010:

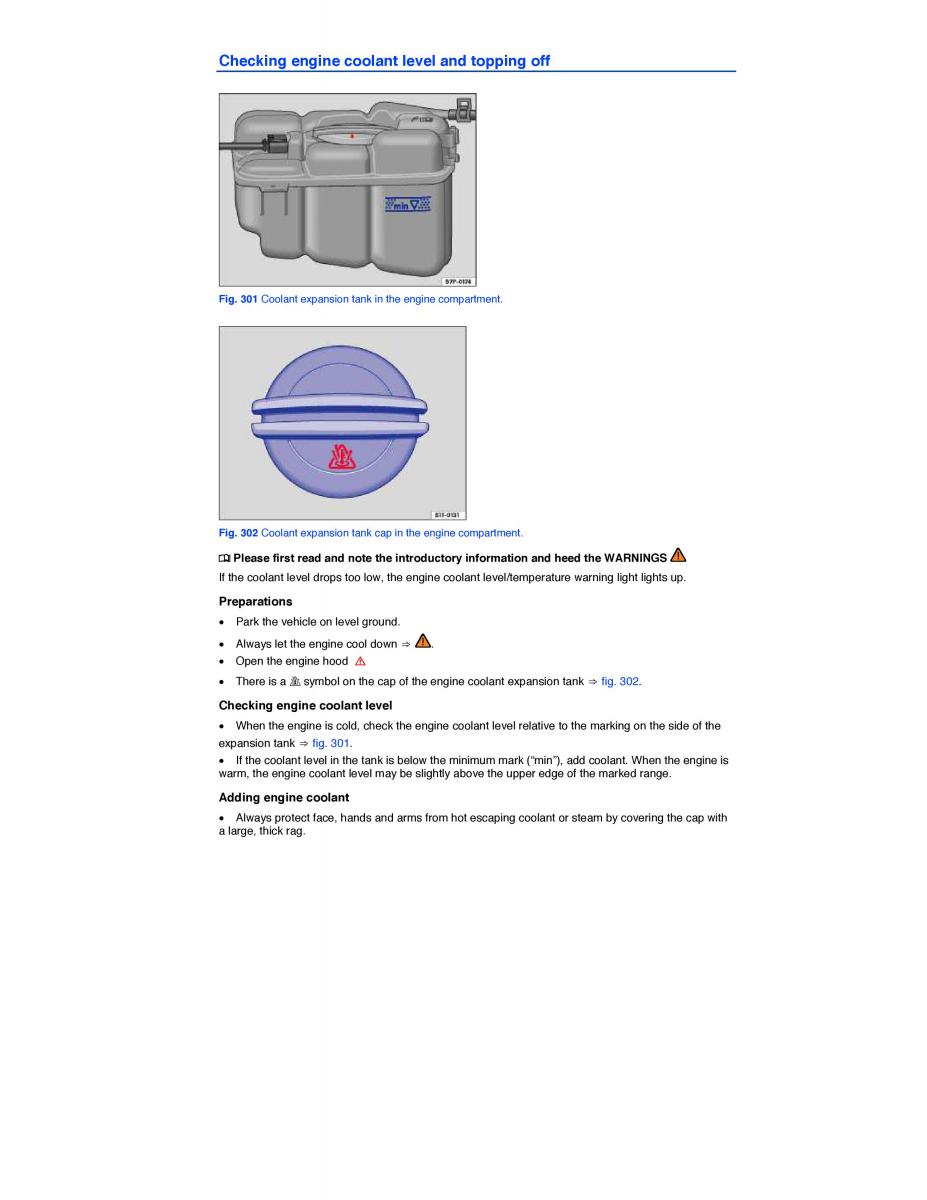

Checking engine coolant level and topping off Fig. 301 Coolant expansion tank in the engine compartment. Fig. 302 Coolant expansion tank cap in the engine compartment. ¤ Please first read and note the introductory information and heed the WARNINGS If the coolant level drops too low, the engine coolant level/temperature warning light lights up. Preparations x Park the vehicle on level ground. x Always let the engine cool down⇒ . x Open the engine hood x There is a« symbol on the cap of the engine coolant expansion tank ⇒ fig. 302. Checking engine coolant level x When the engine is cold, check the engine coolant level relative to the marking on the desi of the expansion tank ⇒ fig. 301. x If the coolant level in the tank is below the minimum mark (“min”), add coolant. When the engine is warm, the engine coolant level may be slightly above the upper edge of the marked range. Adding engine coolant x Always protect face, hands and arms from hot escaping coolant or steam by covering the cap with a large, thick rag.
