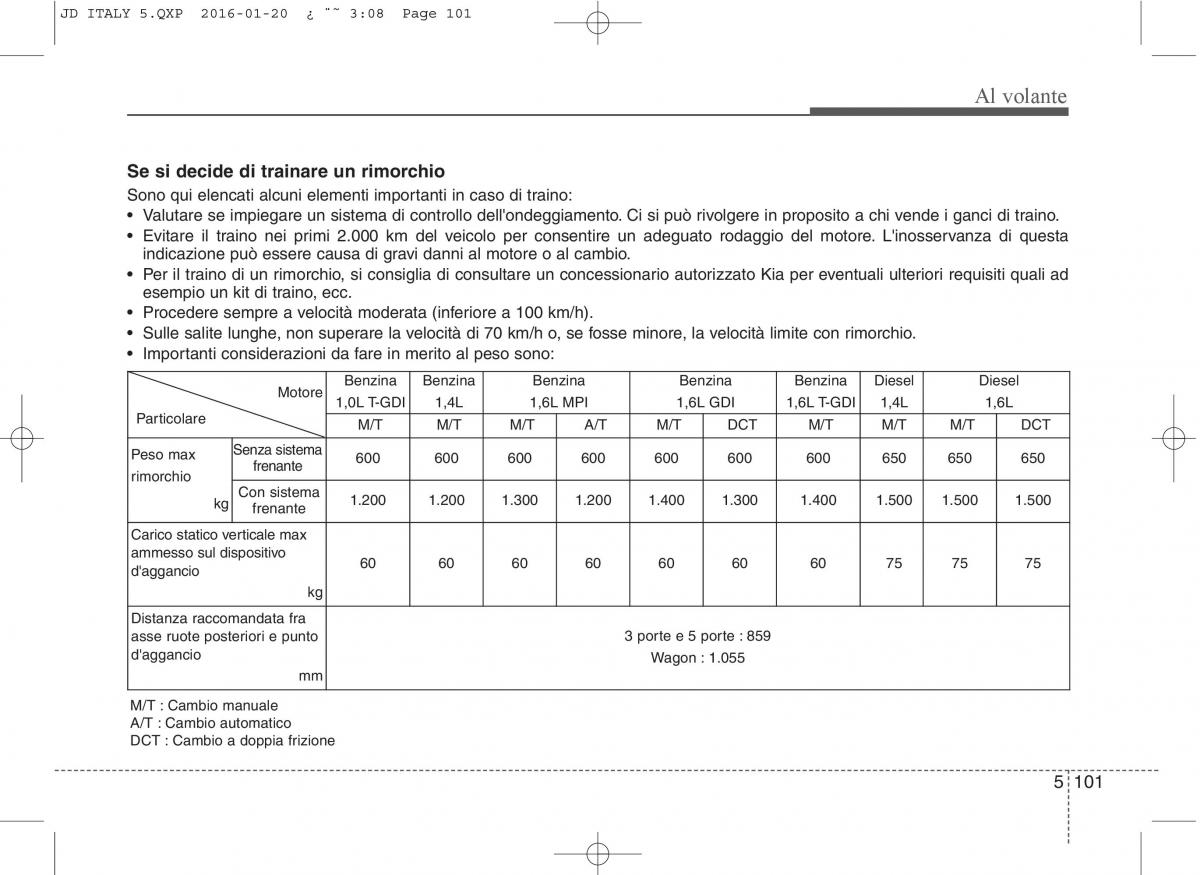

JD ITALY 5.QXP 2016-01-20 ¿ ¨˜ 3:08 Page 101
Al volante
Se si decide di trainare un rimorchio
Sono qui elencati alcuni elementi importanti in caso di traino:
Valutare se impiegare un sistema di controllo dell'ondeggiamento.Ci si può rivolgere in proposito a chi vo.ende i ganci di train
Evitare il traino nei primi 2.000 km del veicolo per consentire un adeguato rodaggio del motore.L'inosservanza di questa
indicazione può essere causa di gravi danni al motore o al cambio.
Per il traino di un rimorchio, si consiglia di consultare un concessionario autorizzato Kia per eventuali ulteriori requisiti quali ad
esempio un kit di traino, ecc.
Procedere sempre a velocità moderata (inferiore a 100 km/h).
Sulle salite lunghe, non superare la velocità di 70 km/h o, se fosse minore, la velocità limite con rimorchio.
Importanti considerazioni da fare in merito al peso sono:
MotoreBenzinaBenzina Benzina Benzina Benzina Diesel Diesel
1,0L T-GDI1,4L 1,6L MPI 1,6L GDI 1,6L T-GDI1,4L 1,6L
Particolare M/T M/T M/T A/T M/T DCT M/T M/T M/T DCT
Peso max Senza sistema600 600 600 600 600 600 600 650 650 650
rimorchio frenante
kg Con sistema1.200 1.200 1.3001.2001.400 1.300 1.400 1.500 1.500 1.500
frenante
Carico statico verticale max
ammesso sul dispositivo60 60 60 60 60 60 60 75 75 75
d'aggancio
kg
Distanza raccomandata fra
asse ruote posteriori e punto 3 porte e 5 porte : 859
d'aggancio Wagon :1.055
mm
M/T : Cambio manuale
A/T : Cambio automatico
DCT :Cambio a doppia frizione
