VW Touareg II 2 owners manual page 477

text version of content this owner's manual page from owners manual to the vehicle VW Touareg, year of production 2010:

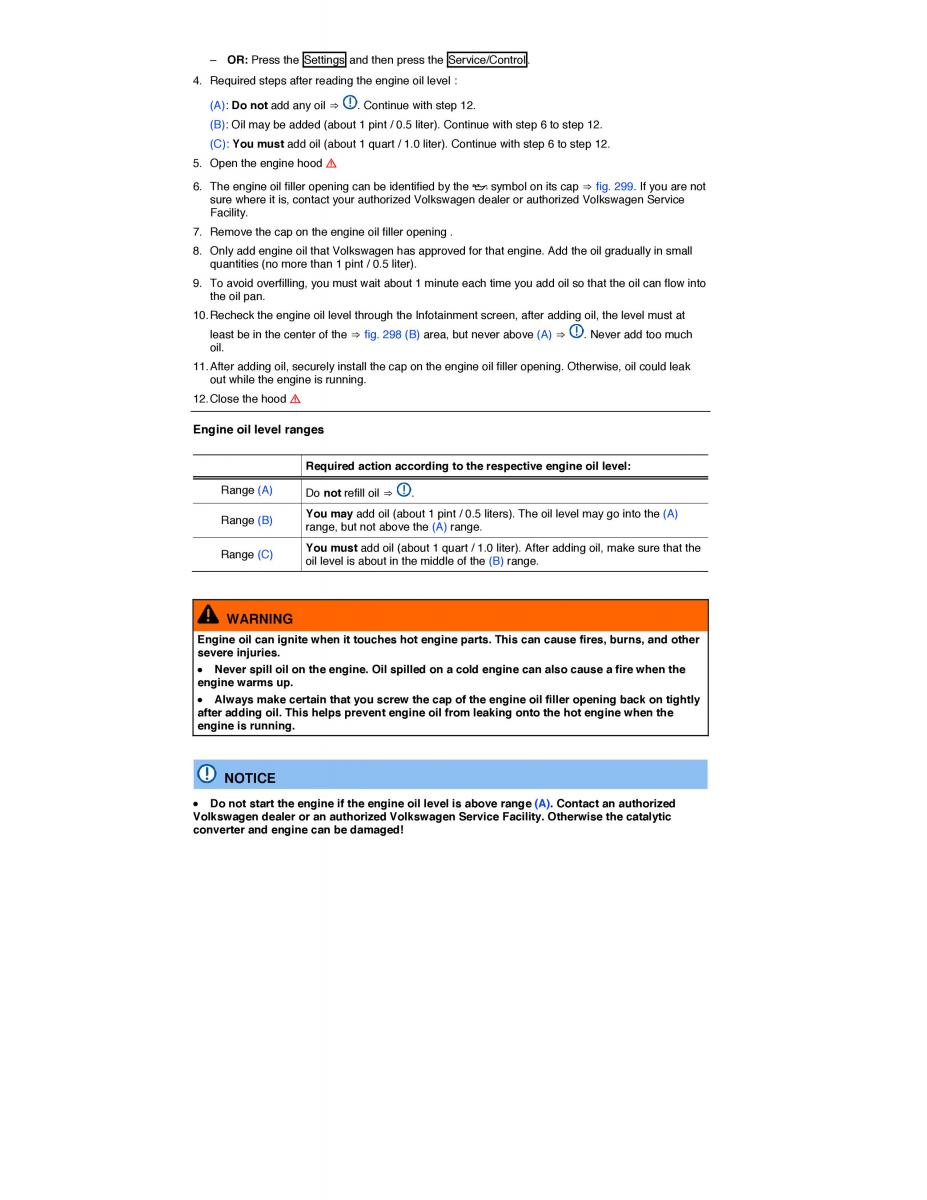

– OR: Press the Settings and then press the Service/Control. 4. Required steps after reading the engine oil level : (A): Do not add any oil ⇒ . Continue with step 12. (B): Oil may be added (about 1 pint / 0.5 liter). Continue with step 6 to step 12. (C): You must add oil (about 1 quart / 1.0 liter). Continue with step 6 to step 12. 5. Open the engine hood 6. The engine oil filler opening can be identified by the E symbol on its cap ⇒ fig. 299. If you are not sure where it is, contact your authorized Volkswagen dealer or authorized Volkswagen Service Facility. 7. Remove the cap on the engine oil filler opening . 8. Only add engine oil that Volkswagen has approved for that engine. Add the oil gradually in small quantities (no more than 1 pint / 0.5 liter). 9. To avoid overfilling, you must wait about 1 minute each time you add oil so that the oil can flow into the oil pan. 10. Recheck the engine oil level through the Infotainment screen, after adding oil, the level must at least be in the center of the ⇒ fig. 298 (B) area, but never above (A) ⇒ . Never add too much oil. 11. After adding oil, securely install the cap on the engine oil filler opening. Otherwise, oil could leak out while the engine is running. 12. Close the hood Engine oil level ranges Required action according to the respective engine oil level: Range (A) Do not refill oil ⇒ . Range (B) You may add oil (about 1 pint / 0.5 liters). The oil level may go into the (A) range, but not above the (A) range. Range (C) You must add oil (about 1 quart / 1.0 liter). After adding oil, make sure that the oil level is about in the middle of the (B) range. WARNING Engine oil can ignite when it touches hot engine parts. This can cause fires, burns, and other severe injuries. x Never spill oil on the engine. Oil spilled on a cld oengine can also cause a fire when the engine warms up. x Always make certain that you screw the cap of the engine oil filler opening back on tightl y after adding oil. This helps prevent engine oil from leaking onto the hot engine when the engine is running. NOTICE x Do not start the engine if the engine oil level is above range(A ). Contact an authorized Volkswagen dealer or an authorized Volkswagen Service Facility. Otherwise the catalytic converter and engine can be damaged!

owners manual VW Touareg

owners manual VW Touareg - year of production: 2010 - VW Touareg II 2 owners manual EN
