text version of content this owner's manual page from owners manual to the vehicle Toyota Auris Hybrid, year of production 2007 - 2012:

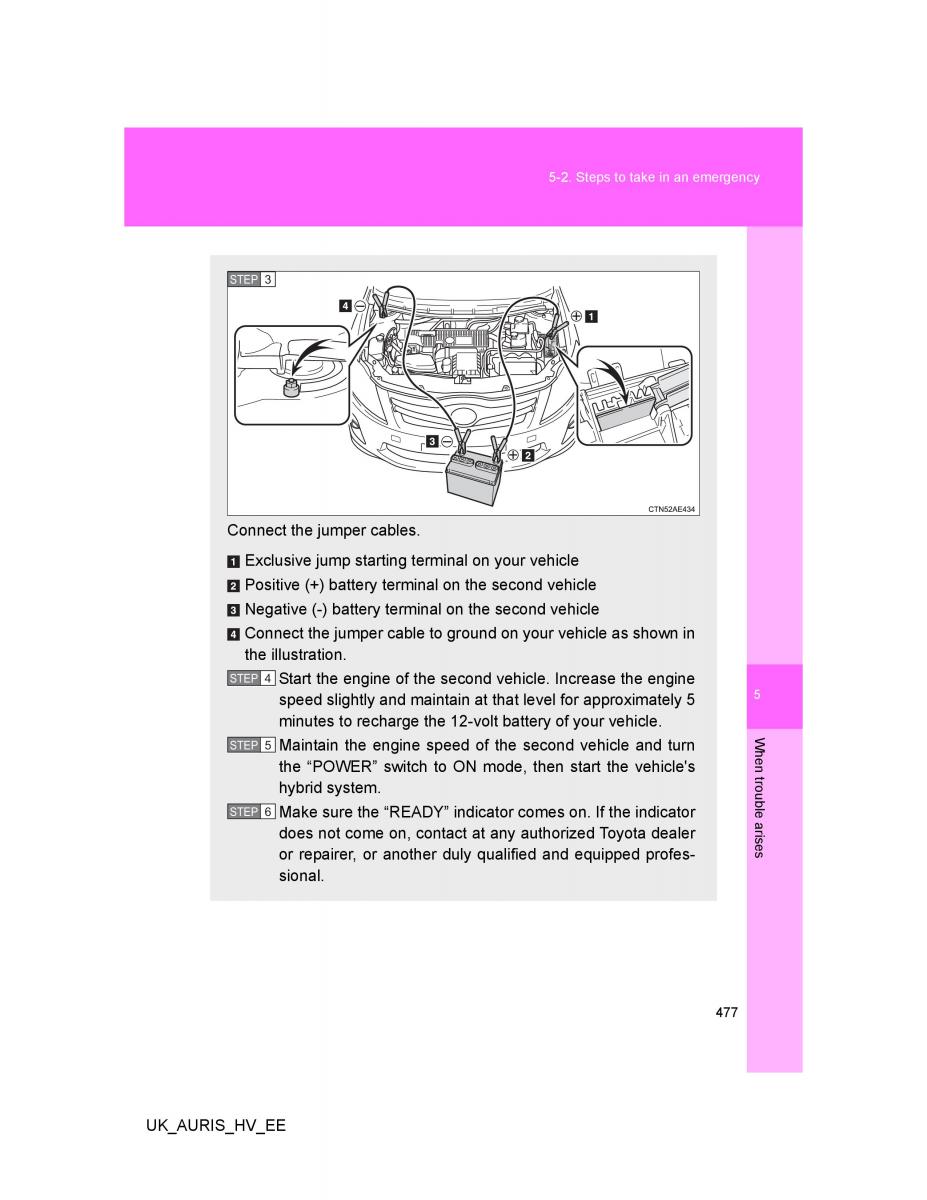

5-2. Steps to take in an emergency STEP 3 Connect the jumper cables. Exclusive jump starting terminal on your vehicle Positive (+) battery terminal on the second vehicle Negative (-) battery terminal on the second vehicle Connect the jumper cable to gr ound on your vehicle as shown in the illustration. STEP 4 Start the engine of the second vehicle. Increase the engine speed slightly and maintain at that level for approximately 55 minutes to recharge the 12-volt battery of your vehicle. STEP 5 Maintain the engine speed of the second vehicle and turnWh the “POWER” switch to ON mode, then start the vehicle'sen tro STEP 6 hybrid system. uble Make sure the “READY” indicator comes on. If the indicator a r does not come on, contact at any authorized Toyota dealerises or repairer, or another duly qualified and equipped profes- sional. 477 UK_AURIS_HV_EE
