text version of content this owner's manual page from owners manual to the vehicle Toyota Auris Hybrid, year of production 2007 - 2012:

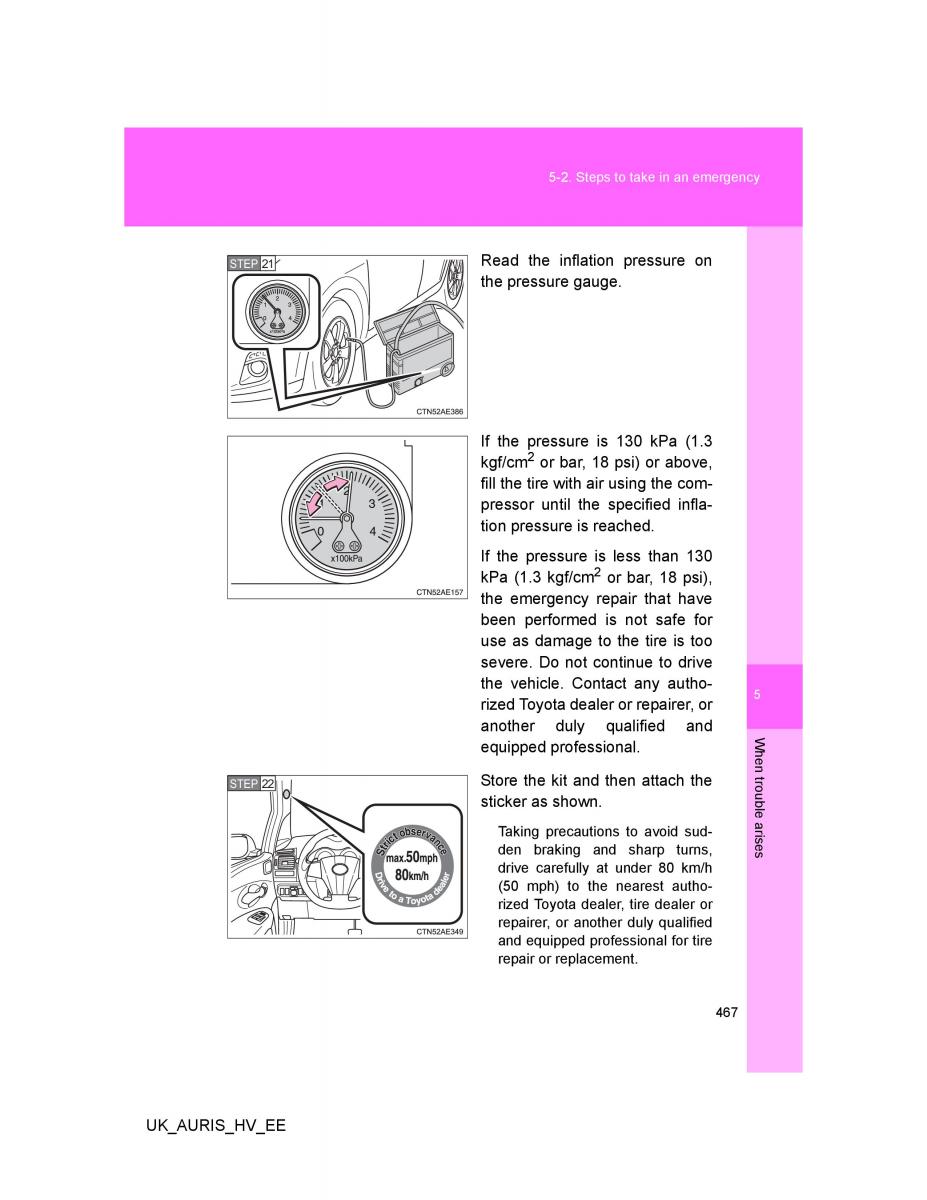

5-2. Steps to take in an emergency STEP 21 Read the inflation pressure on the pressure gauge. If the pressure is 130 kPa (1.3 kgf/cm2 or bar, 18 psi) or above, fill the tire with air using the com- pressor until the specified infla- tion pressure is reached. If the pressure is less than 130 2 kPa (1.3 kgf/cm or bar, 18 psi), the emergency repair that have been performed is not safe for use as damage to the tire is too severe. Do not continue to drive the vehicle. Contact any autho- rized Toyota dealer or repairer, or5 another duly qualified and Wh equipped professional. en tro STEP 22 Store the kit and then attach theuble sticker as shown. a r Taking precautions to avoid sud-ises den braking and sharp turns, drive carefully at under 80 km/h (50 mph) to the nearest autho- rized Toyota dealer, tire dealer or repairer, or another duly qualified and equipped professional for tire repair or replacement. 467 UK_AURIS_HV_EE
