text version of content this owner's manual page from owners manual to the vehicle Toyota Avensis, year of production 2015:

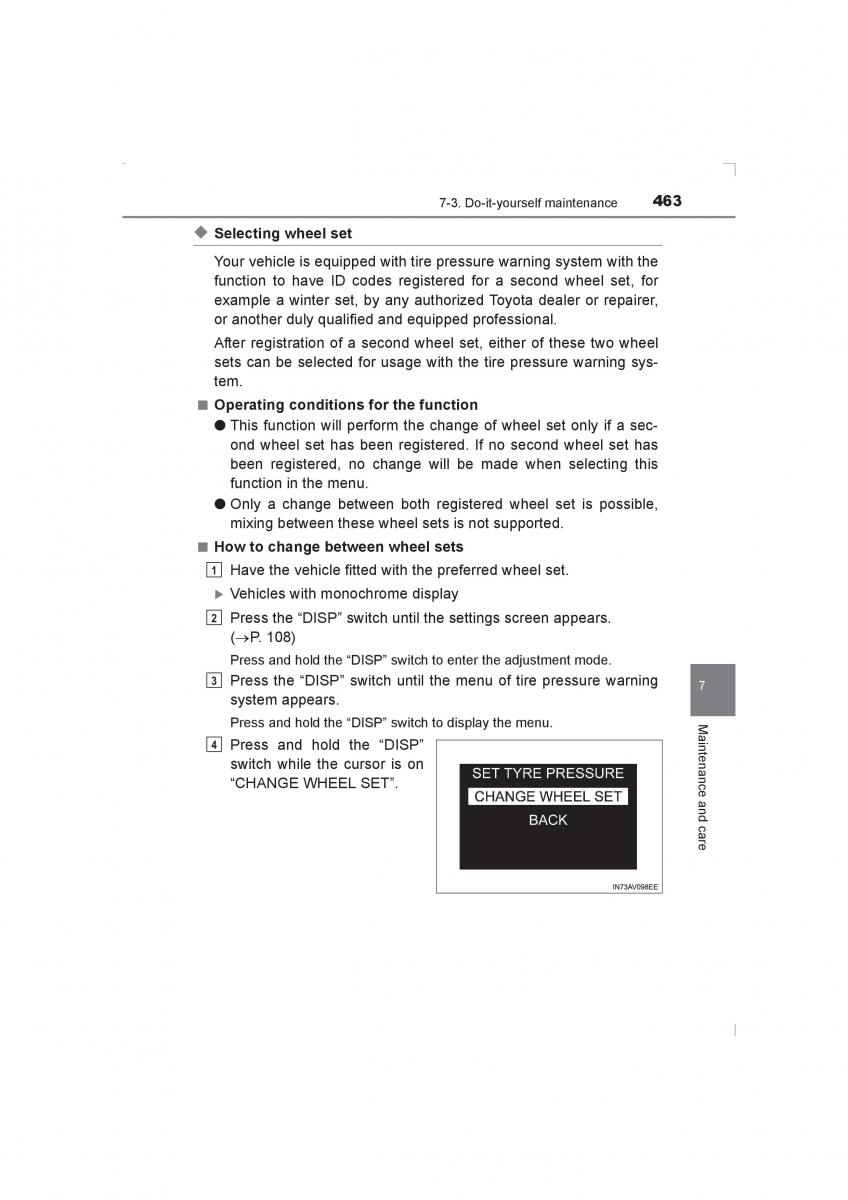

AVENSIS_OM_OM20C20E_(EE).book Page 463 Thursday, January 29, 2015 1:47 PM 7-3. Do-it-yourself maintenance463 ◆Selecting wheel set Your vehicle is equipped with tire pressure warning system with the function to have ID codes registered for a second wheel set, for example a winter set, by any authorized Toyota dealer or repairer, or another duly qualified and equipped professional. After registration of a second wheel set, either of these two wheel sets can be selected for usage with the tire pressure warning sys- tem. ■ Operating conditions for the function ●This function will perform the change of wheel set only if a sec- ond wheel set has been registered. If no second wheel set has been registered, no change will be made when selecting this function in the menu. ●Only a change between both registered wheel set is possible, mixing between these wheel sets is not supported. ■ How to change between wheel sets 1 Have the vehicle fitted with the preferred wheel set. X Vehicles with monochrome display 2 Press the “DISP” switch until the settings screen appears. (→P. 108) Press and hold the “DISP” switch to enter the adjustment mode. 3 Press the “DISP” switch until the menu of tire pressure warning7 system appears. Press and hold the “DISP” switch to display the menu. M ai 4 Press and hold the “DISP” nte switch while the cursor is on nan “CHANGE WHEEL SET”. ce and ca re AVENSIS_OM_OM20C20E_(EE)
