text version of content this owner's manual page from owners manual to the vehicle Subaru Outback, year of production 2014:

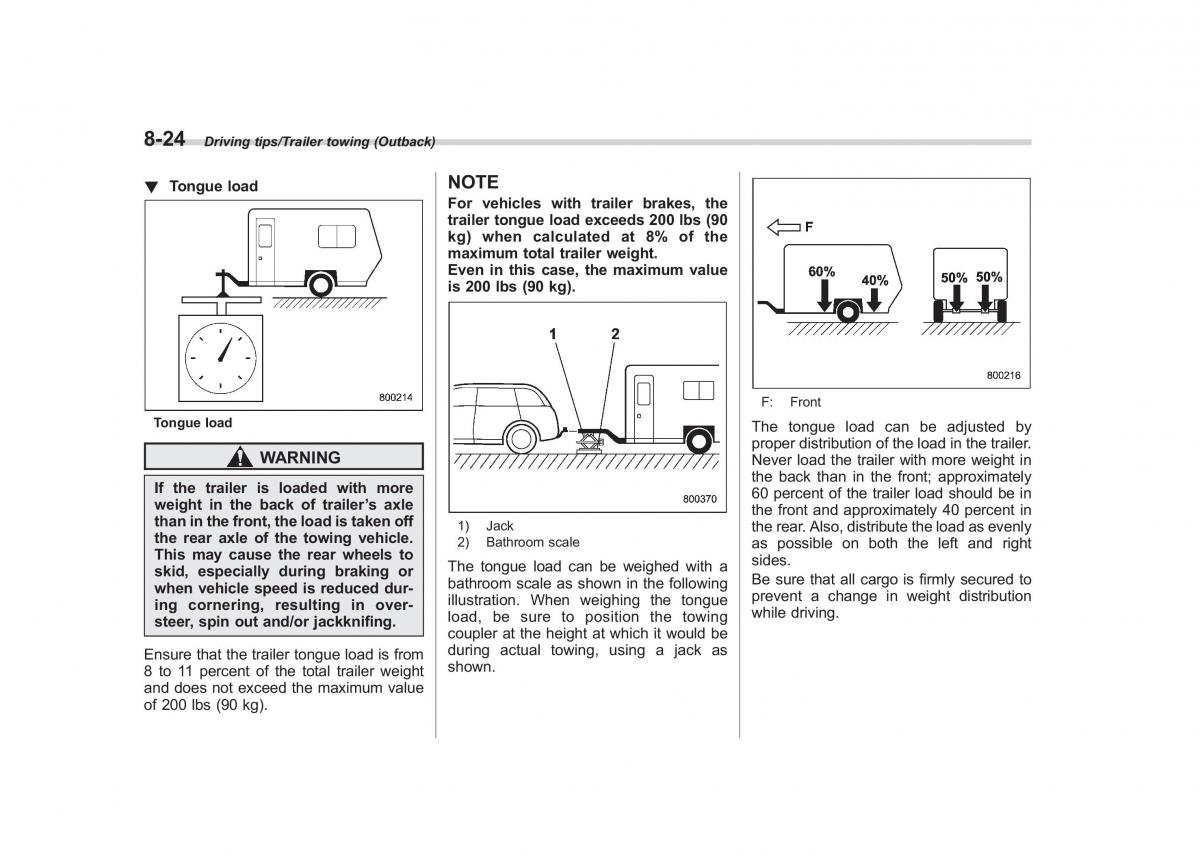

8-24 Drivingtips/Trailer towing (Outback) ! Tongue load NOTE For vehicles with trailer brakes, the trailer tongue load exceeds 200 lbs (90 kg) when calculated at 8% of the maximumtotal trailer weight. Even in this case, the maximum value is 200 lbs (90 kg). F: Front Tongue load The tongue load can be adjusted by proper distribution of the load in the trailer. WARNING Never load the trailer with more weight in the back than in the front; approximately Ifthe trailer is loaded with more 60 percent of the trailer load should be in weight in the back of trailer’s axle the front and approximately 40 percent in thaninthefront,theloadistakenoff1)Jack the rear. Also, distribute the load as evenly the rear axle of the towing vehicle.2)Bathroom scaleas possible on both the left and right This may cause the rear wheels to sides. skid, especially during braking orThe tongue load can be weighed with a when vehicle speed is reduced dur-bathroom scale as shown in the followingBe sure that all cargo is firmly secured to ing cornering, resulting in over-illustration. When weighing the tongueprevent a change in weight distribution steer, spin out and/or jackknifing.load, be sure to position the towing while driving. coupler at the height at which it would be Ensure that the trailer tongue load is fromduring actual towing, using a jack as 8 to 11 percent of the total trailer weightshown. and does not exceed the maximum value of 200 lbs (90 kg).
