owners manual Toyota Prius

owners manual Toyota Prius - year of production: 2003, 2004, 2005, 2006, 2007, 2008, 2009 - Toyota Prius II 2 NHW20 owners manual EN

Document: pdf (7.69 MB) 492 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Toyota Prius, year of production 2003 - 2009:

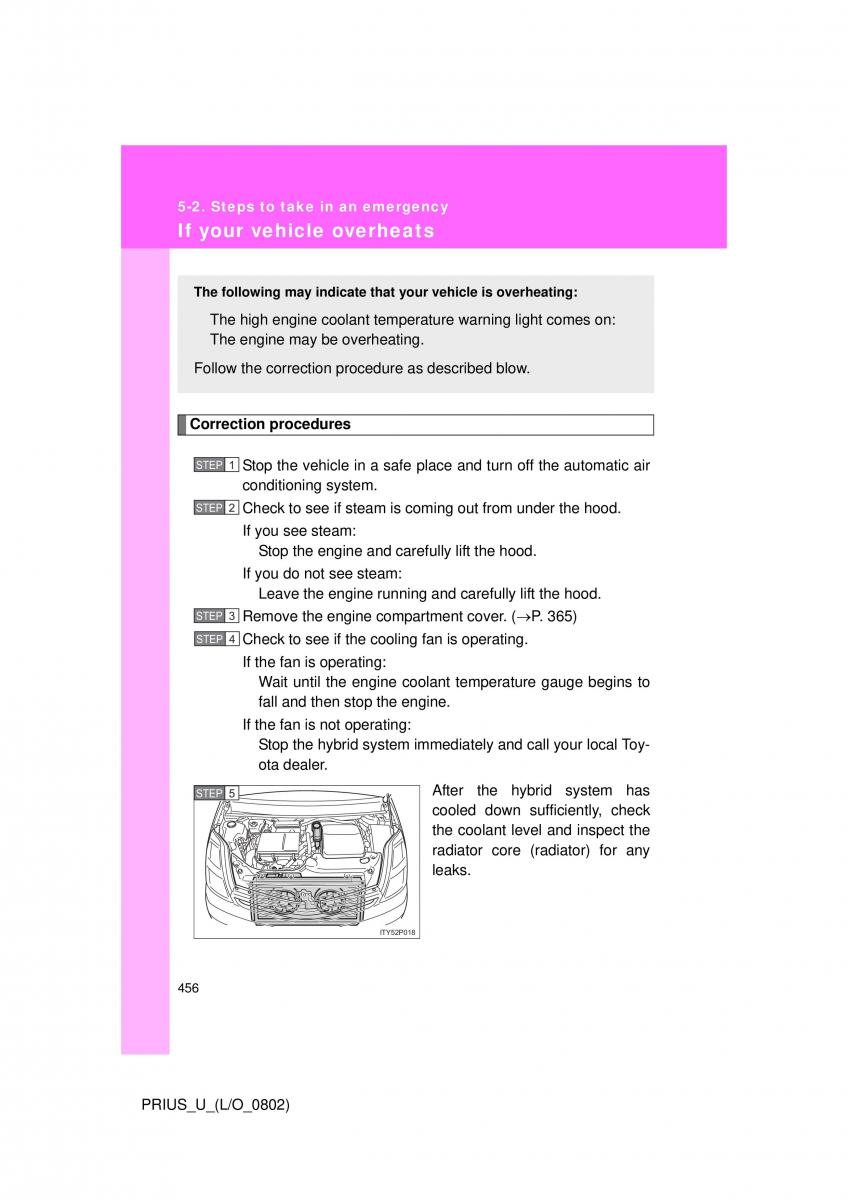

5-2. Steps to take in an emergency If your vehicle overheats The following may indicate that your vehicle is overheating: The high engine coolant temperature warning light comes on: The engine may be overheating. Follow the correction procedure as described blow. Correction procedures STEP 1 Stop the vehicle in a safe place and turn off the automatic air conditioning system. STEP 2 Check to see if steam is coming out from under the hood. If you see steam: Stop the engine and carefully lift the hood. If you do not see steam: Leave the engine running and carefully lift the hood. STEP 3 Remove the engine compartment cover. (→P. 365) STEP 4 Check to see if the cooling fan is operating. If the fan is operating: Wait until the engine coolant temperature gauge begins to fall and then stop the engine. If the fan is not operating: Stop the hybrid system immediately and call your local Toy- ota dealer. STEP 5 After the hybrid system has cooled down sufficiently, check the coolant level and inspect the radiator core (radiator) for any leaks. ITY52P018 456 PRIUS_U_(L/O_0802)
