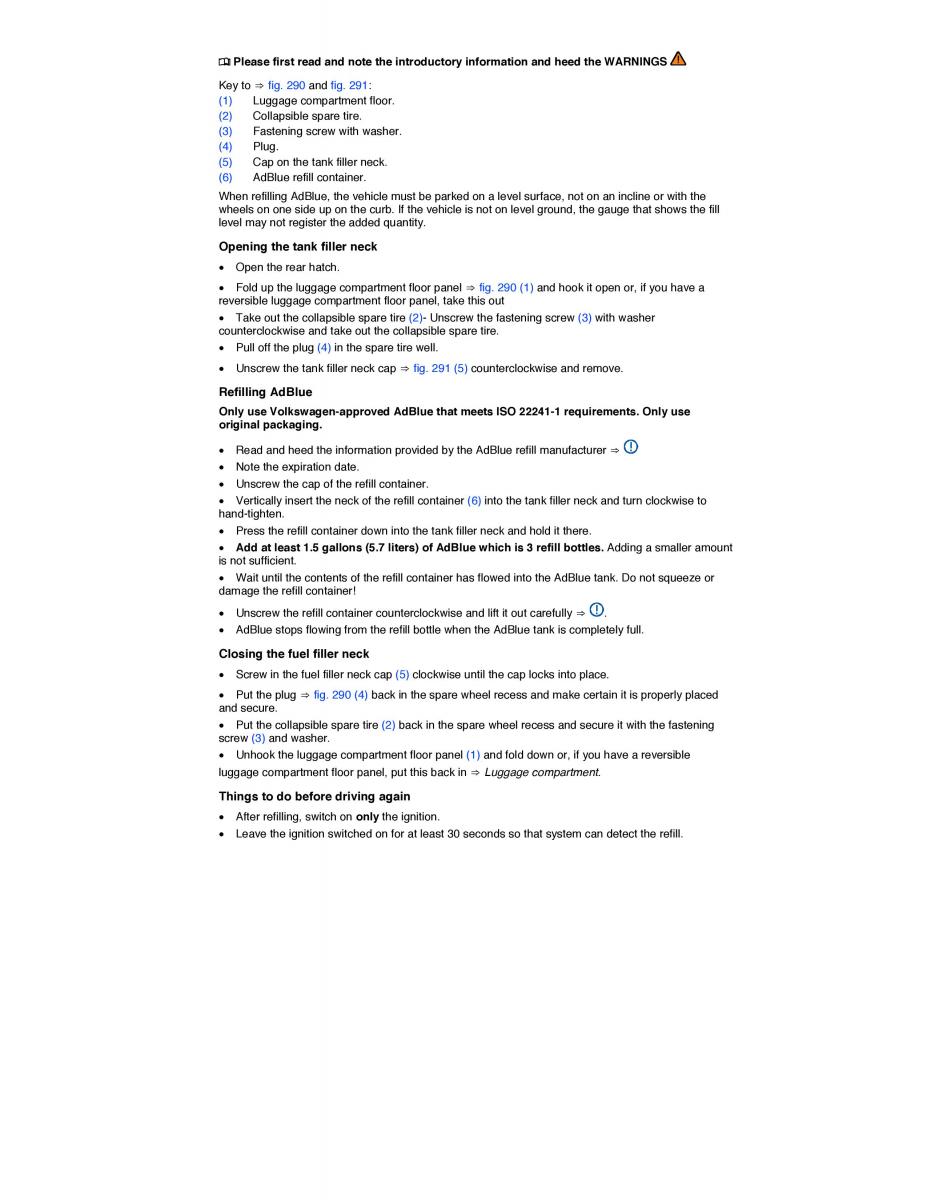

¤ Please first read and note the introductory information and heed the WARNINGS Key to ⇒ fig. 290 and fig. 291: (1) Luggage compartment floor. (2) Collapsible spare tire. (3) Fastening screw with washer. (4) Plug. (5) Cap on the tank filler neck. (6) AdBlue refill container. When refilling AdBlue, the vehicle must be parked on a level surface, not on an incline or with the wheels on one side up on the curb. If the vehicle is not on level ground, the gauge that shows the fill level may not register the added quantity. Opening the tank filler neck x Open the rear hatch. x Fold up the luggage compartment floor pane⇒l fig. 290 (1) and hook it open or, if you have a reversible luggage compartment floor panel, take this out x Take out the collapsible spare tire(2 )- Unscrew the fastening screw (3) with washer counterclockwise and take out the collapsible spare tire. x Pull off the plug(4 ) in the spare tire well. x Unscrew the tank filler neck cap⇒ fig. 291 (5) counterclockwise and remove. Refilling AdBlue Only use Volkswagen-approved AdBlue that meets ISO 22241-1 requirements. Only use original packaging. x Read and heed the information provided by the AdBlue refill manufacture⇒r x Note the expiration date. x Unscrew the cap of the refill container. x Vertically insert the neck of the refill containe(6r ) into the tank filler neck and turn clockwise to hand-tighten. x Press the refill container down into the tank filler neck and hold it there. x Add at least 1.5 gallons (5.7 liters) of AdBlue which is 3 refill bottles. Adding a smaller amount is not sufficient. x Wait until the contents of the refill container has flowed into the AdBlue tank. Do not squeeze or damage the refill container! x Unscrew the refill container counterclockwise and lift it out carefull⇒y . x AdBlue stops flowing from the refill bottle when the AdBlue tank is completely full. Closing the fuel filler neck x Screw in the fuel filler neck cap(5 ) clockwise until the cap locks into place. x Put the plug⇒ fig. 290 (4) back in the spare wheel recess and make certain it is properly placed and secure. x Put the collapsible spare tire(2 ) back in the spare wheel recess and secure it with the fastening screw (3) and washer. x Unhook the luggage compartment floor pane(1l ) and fold down or, if you have a reversible luggage compartment floor panel, put this back in ⇒ Luggage compartment. Things to do before driving again x After refilling, switch ononl y the ignition. x Leave the ignition switched on for at least 30 seconds so that system can detect the refill.
