text version of content this owner's manual page from owners manual to the vehicle Subaru Outback, year of production 2014:

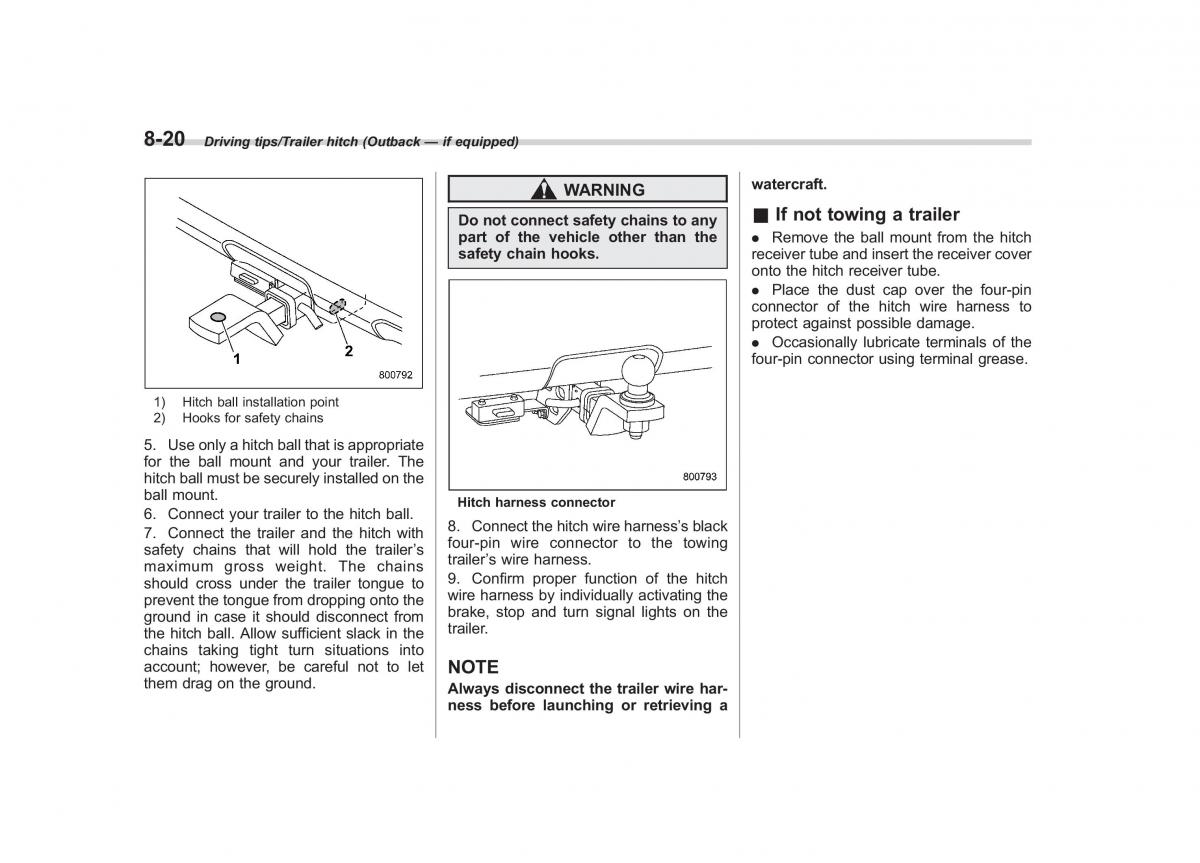

8-20 Drivingtips/Trailer hitch (Outback — if equipped) WARNING watercraft. Donotconnectsafety chains to any&If not towing a trailer part of the vehicle other than the. Remove the ball mount from the hitch safety chain hooks. receiver tube and insert the receiver cover onto the hitch receiver tube. . Place the dust cap over the four-pin connector of the hitch wire harness to protect against possible damage. . Occasionally lubricate terminals of the four-pin connector using terminal grease. 1)Hitch ball installation point 2)Hooks for safety chains 5. Useonlyahitchballthatisappropriate for the ball mount and your trailer. The hitch ball must be securely installed on the ball mount. Hitch harness connector 6. Connect your trailer to the hitch ball. 7. Connect the trailer and the hitch with8. Connectthehitch wire harness’s black safety chains that will hold the trailer’sfour-pin wire connector to the towing trailer’s wire harness. maximum gross weight. The chains should cross under the trailer tongue to9. Confirm proper function of the hitch prevent the tongue from dropping onto thewire harness by individually activating the ground in case it should disconnect frombrake, stop and turn signal lights on the the hitch ball. Allow sufficient slack in thetrailer. chains taking tight turn situations into account; however, be careful not to letNOTE them drag on the ground. Always disconnect the trailer wire har- ness before launching or retrieving a
