text version of content this owner's manual page from owners manual to the vehicle Subaru Outback, year of production 2014:

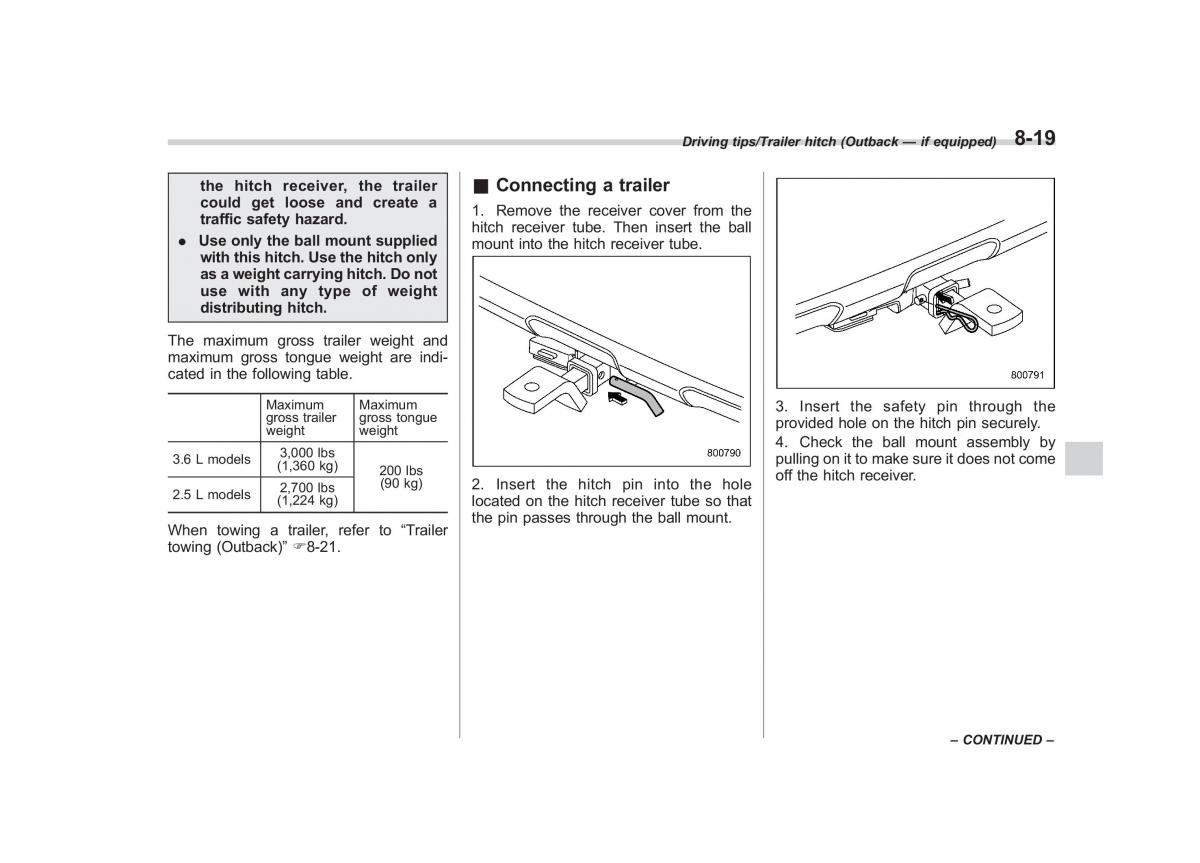

Driving tips/Trailer hitch (Outback — if equipped)8-19 the hitch receiver, the trailer & Connecting a trailer could get loose and create a1. Remove the receiver cover from the traffic safety hazard. hitch receiver tube. Then insert the ball . Use only the ball mount suppliedmount into the hitch receiver tube. with this hitch. Use the hitch only asaweightcarryinghitch.Donot use with any type of weight distributing hitch. The maximum gross trailer weight and maximum gross tongue weight are indi- cated in the following table. Maximum Maximum 3. Insert the safety pin through the gross trailergross tongue provided hole on the hitch pin securely. weight weight 4. Check the ball mount assembly by 3.6 L models3,000 lbs pulling on it to make sure it does not come (1,360 kg)200 lbs off the hitch receiver. 2,700 lbs(90 kg) 2. Insert the hitch pin into the hole 2.5 L models(1,224 kg) located on the hitch receiver tube so that the pin passes through the ball mount. When towing a trailer, refer to “Trailer towing (Outback)” F8-21. – CONTINUED –
