text version of content this owner's manual page from owners manual to the vehicle Toyota Auris Hybrid, year of production 2007 - 2012:

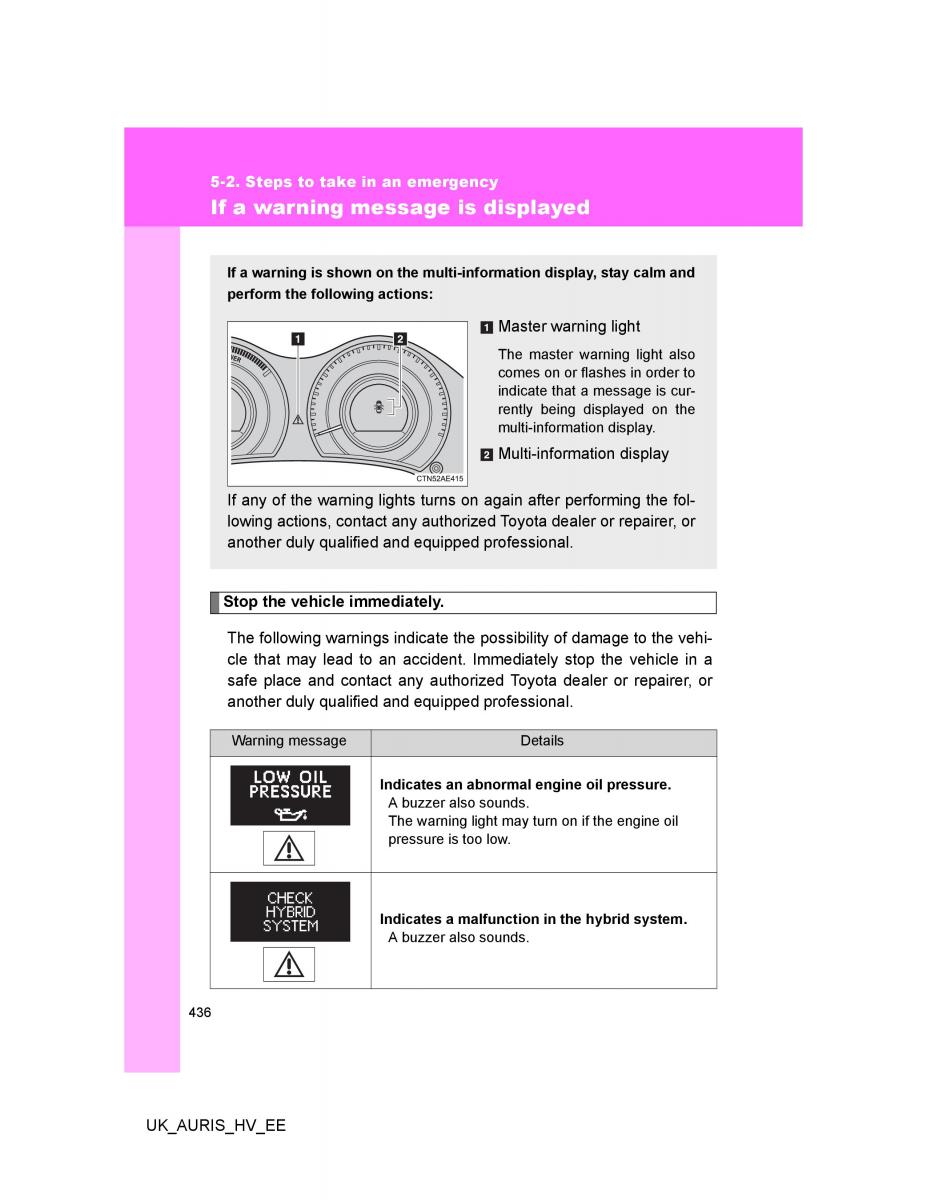

5-2. Steps to take in an emergency If a warning message is displayed If a warning is shown on the multi- information display, stay calm and perform the following actions: Master warning light The master warning light also comes on or flashes in order to indicate that a message is cur- rently being displayed on the multi-information display. Multi-information display If any of the warning lights turns on again after performing the fol- lowing actions, contact any authorized Toyota dealer or repairer, or another duly qualified and equipped professional. Stop the vehicle immediately. The following warnings indicate the possibility of damage to the vehi- cle that may lead to a acncident. Immediately stop the vehicle in a safe place and contact any authorized Toyota dealer or repairer, or another duly qualified and equipped professional. Warning message Details Indicates an abnormal engine oil pressure. A buzzer also sounds. The warning light may turn on if the engine oil pressure is too low. Indicates a malfunction in the hybrid system. A buzzer also sounds. 436 UK_AURIS_HV_EE
