text version of content this owner's manual page from owners manual to the vehicle Toyota Prius, year of production 2003 - 2009:

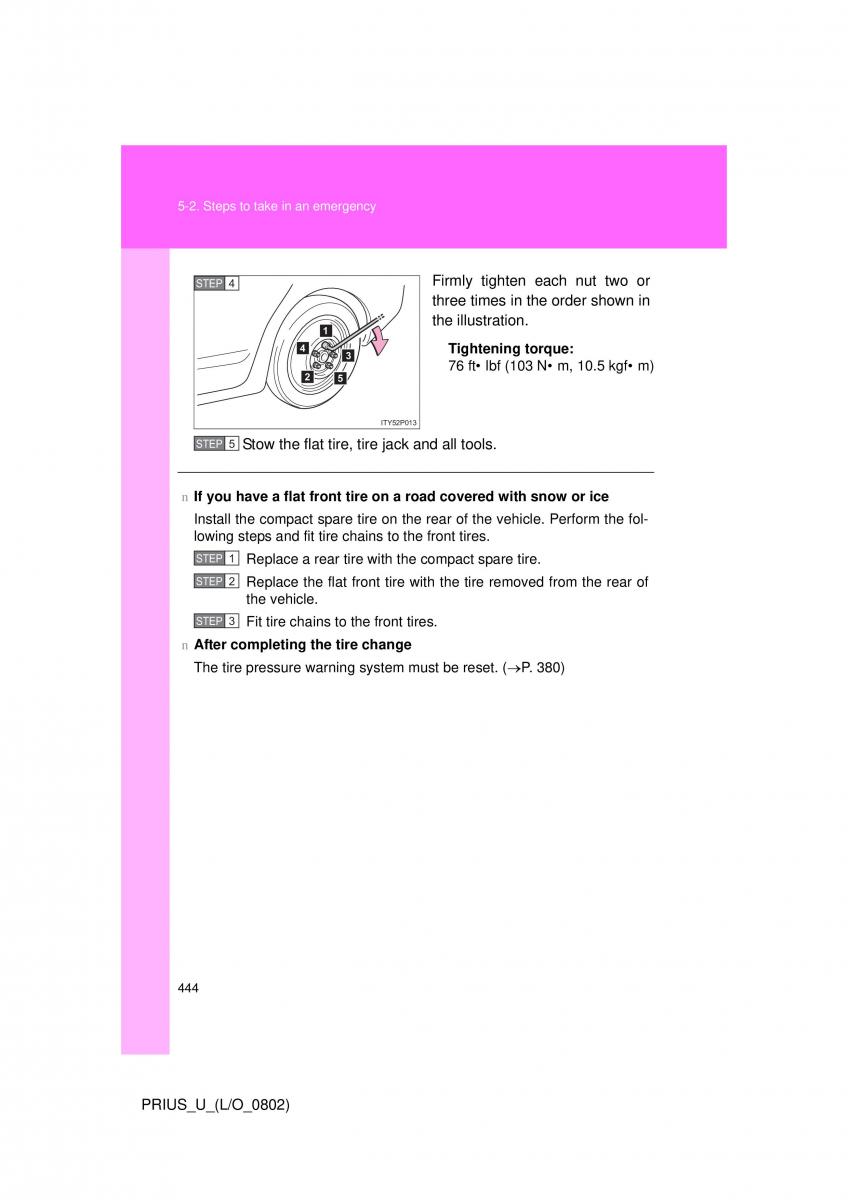

5-2. Steps to take in an emergency STEP 4 Firmly tighten each nut two or three times in the order shown in the illustration. 1 4 Tightening torque: 3 76 ft• lbf (103 N• m, 10.5 kgf• m) 2 5 ITY52P013 STEP 5 Stow the flat tire, tire jack and all tools. n If you have a flat front tire on a road covered with snow or ice Install the compact spare tire on the rear of the vehicle. Perform the fol- lowing steps and fit tire chains to the front tires. STEP 1 Replace a rear tire with the compact spare tire. STEP 2 Replace the flat front tire with the tire removed from the rear of the vehicle. STEP 3 Fit tire chains to the front tires. n After completing the tire change The tire pressure warning system must be reset. (→P. 380) 444 PRIUS_U_(L/O_0802)
