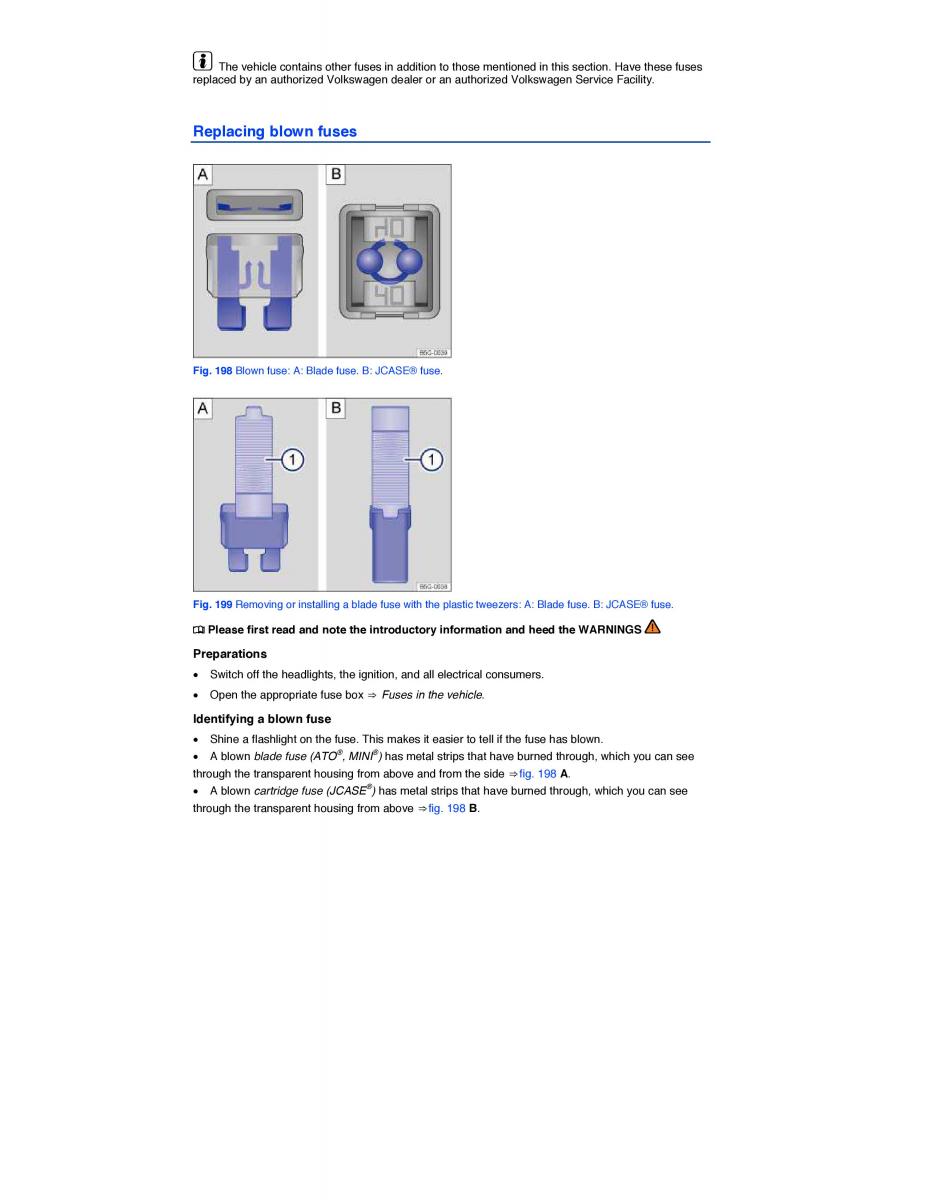

The vehicle contains other fuses in addition to those mentioned in this section. Have these fuses
replaced by an authorized Volkswagen dealer or an authorized Volkswagen Service Facility.
Replacing blown fuses
Fig. 198 Blown fuse: A: Blade fuse. B: JCASE® fuse.
Fig. 199 Removing or installing a blade fuse with the plastic tweezers: A: Blade fuse. B: JCASE® fuse.
¤ Please first read and note the introductory information and heed the WARNINGS
Preparations
x Switch off the headlights, the ignition, and all electrical consumers.
x Open the appropriate fuse bo⇒ x Fuses in the vehicle.
Identifying a blown fuse
x Shine a flashlight on the fuse. This makes it easier to tell if the fuse has blown.
® ®
x A blownbl ade fuse (ATO , MINI ) has metal strips that have burned through, which you can see
through the transparent housing from above and from the side ⇒ fig. 198 A.
x A blownca rtridge fuse (JCASE®) has metal strips that have burned through, which you can see
through the transparent housing from above ⇒ fig. 198 B.
