owners manual VW Golf VII

owners manual VW Golf VII - year of production: 2012 - VW Golf VII 7 SportWagen Variant owners manual EN

Document: pdf (6.46 MB) 439 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle VW Golf VII, year of production 2012:

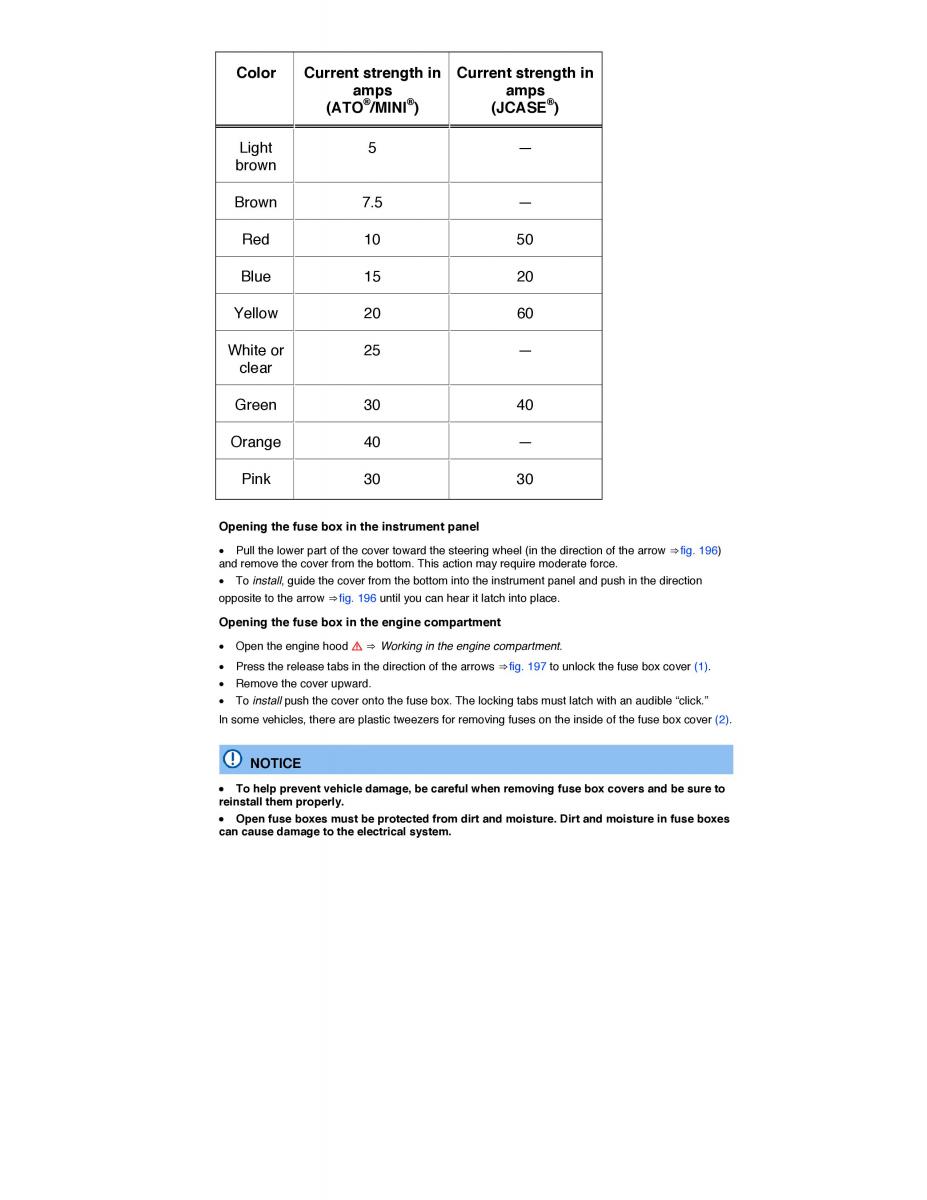

Color Current strength in Current strength in amps amps ® ® ® (ATO /MINI ) (JCASE ) Light 5 — brown Brown 7.5 — Red 10 50 Blue 15 20 Yellow 20 60 White or 25 — clear Green 30 40 Orange 40 — Pink 30 30 Opening the fuse box in the instrument panel x Pull the lower part of the cover toward the steering wheel (in the direction of the arrow⇒ fig. 196) and remove the cover from the bottom. This action may require moderate force. x Toin stall, guide the cover from the bottom into the instrument panel and push in the direction opposite to the arrow ⇒ fig. 196 until you can hear it latch into place. Opening the fuse box in the engine compartment x Open the engine hood ⇒ Working in the engine compartment. x Press the release tabs in the direction of the arrows⇒ fig. 197 to unlock the fuse box cover (1). x Remove the cover upward. x Toin stall push the cover onto the fuse box. The locking tabs must latch with an audible “click.” In some vehicles, there are plastic tweezers for removing fuses on the inside of the fuse box cover (2). NOTICE x To help prevent vehicle damage, be careful when removing fuse box covers and be sure to reinstall them properly. x Open fuse boxes must be protected from dirt and moisture. Dirt and moisture in fuse boxes can cause damage to the electrical system.
