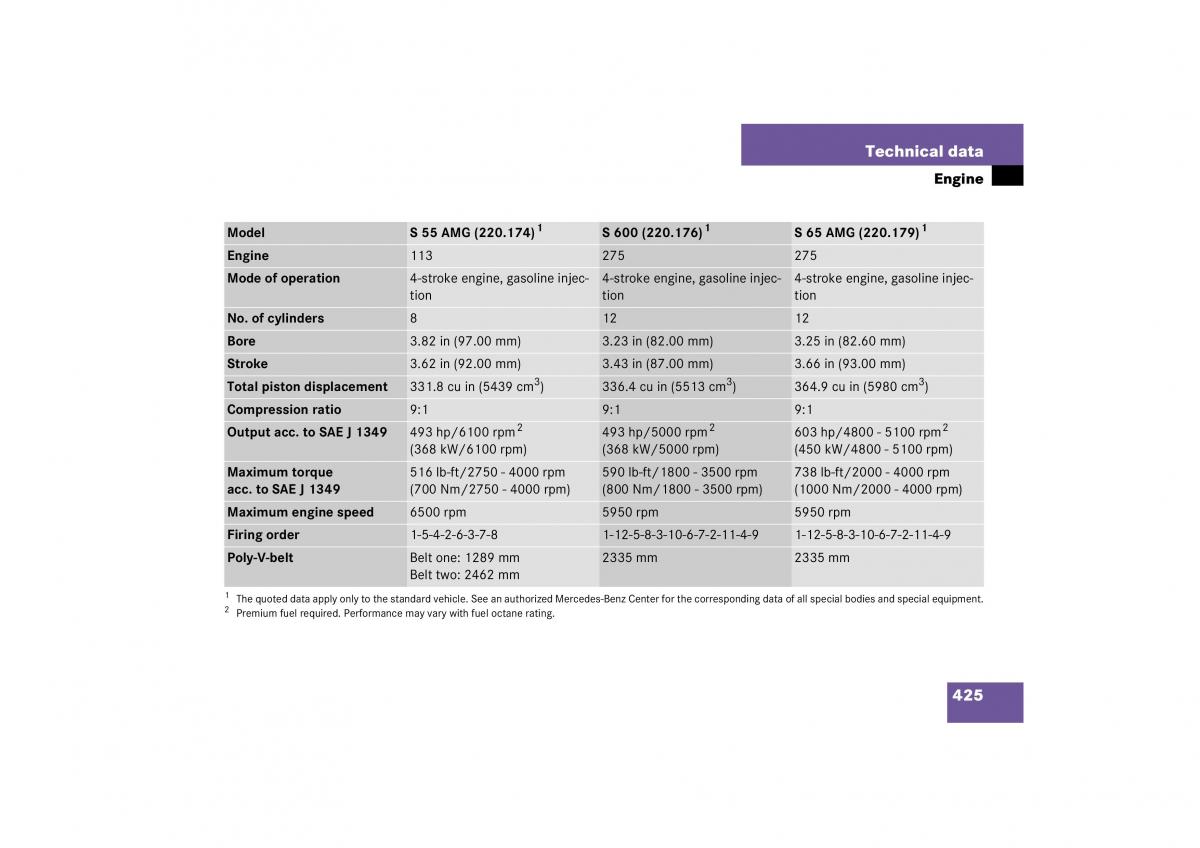

Technical data
Engine
Model S 55 AMG (220.174)1 S 600 (220.176)1 S 65 AMG (220.179)1
Engine 113 275 275
Mode of operation 4-stroke engine, gasoline injec-4-stroke engine, gasoline injec-4-stroke engine, gasoline injec-
tion tion tion
No. of cylinders 8 12 12
Bore 3.82 in (97.00 mm) 3.23 in (82.00 mm) 3.25 in (82.60 mm)
Stroke 3.62 in (92.00 mm) 3.43 in (87.00 mm) 3.66 in (93.00 mm)
Total piston displacement 331.8 cu in (5439 cm3) 336.4 cu in (5513 cm3) 364.9 cu in (5980 cm3)
Compression ratio 9:1 9:1 9:1
2 2 2
Output acc. to SAE J 1349 493hp/6100rpm 493hp/5000rpm 603hp/4800 - 5100 rpm
(368 kW/6100rpm) (368 kW/5000rpm) (450 kW/4800 - 5100 rpm)
Maximum torque 516lb-ft/2750 - 4000 rpm 590lb-ft/1800 - 3500 rpm 738lb-ft/2000 - 4000 rpm
acc. to SAE J 1349 (700 Nm/2750 - 4000 rpm) (800 Nm/1800 - 3500 rpm) (1000 Nm/2000 - 4000 rpm)
Maximum engine speed 6500rpm 5950rpm 5950rpm
Firing order 1-5-4-2-6-3-7-8 1-12-5-8-3-10-6-7-2-11-4-9 1-12-5-8-3-10-6-7-2-11-4-9
Poly-V-belt Belt one: 1289 mm 2335mm 2335mm
Belt two: 2462 mm
1 The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
2 Premium fuel required. Performance may vary with fuel octane rating.
425
