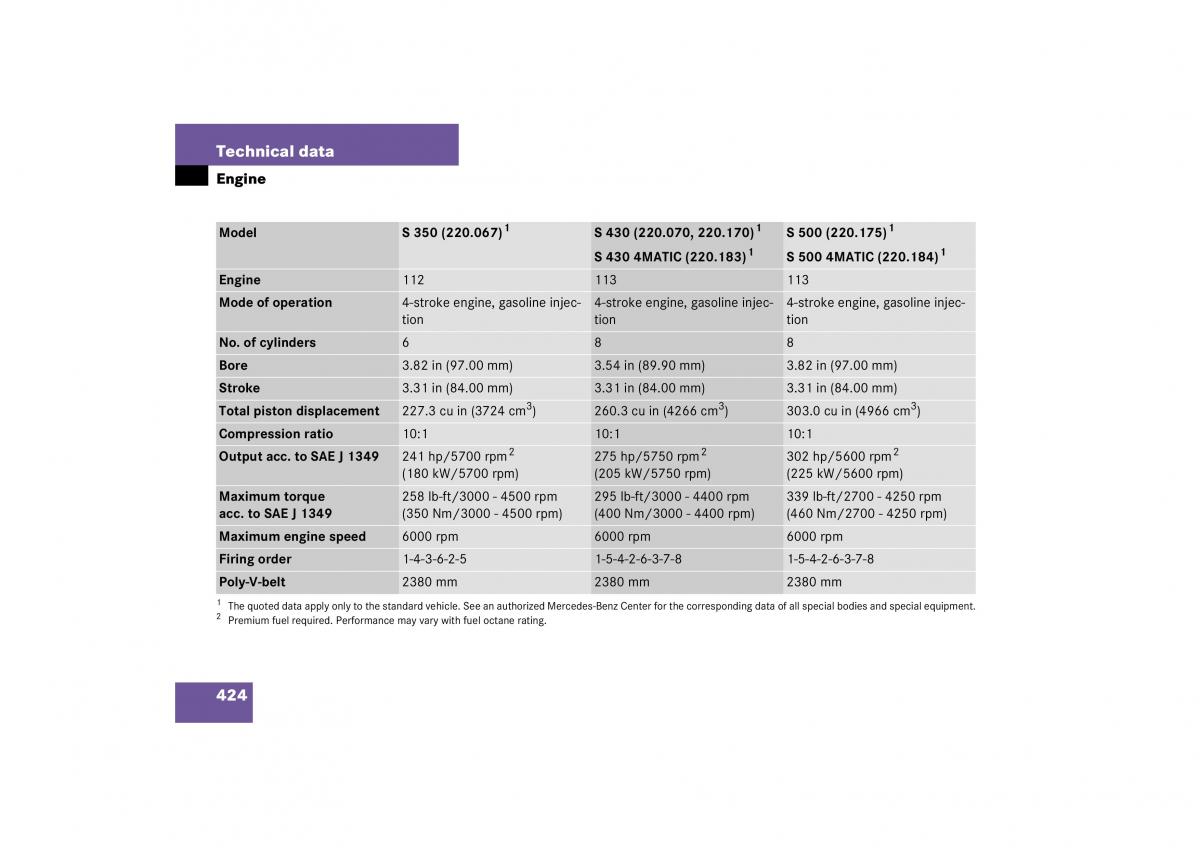

Technical data
Engine
Model S 350 (220.067)1 S 430 (220.070, 220.170)1 S 500 (220.175)1
S 430 4MATIC (220.183)1 S 500 4MATIC (220.184)1
Engine 112 113 113
Mode of operation 4-stroke engine, gasoline injec-4-stroke engine, gasoline injec-4-stroke engine, gasoline injec-
tion tion tion
No. of cylinders 6 8 8
Bore 3.82 in (97.00 mm) 3.54 in (89.90 mm) 3.82 in (97.00 mm)
Stroke 3.31 in (84.00 mm) 3.31 in (84.00 mm) 3.31 in (84.00 mm)
Total piston displacement 227.3 cu in (3724 cm3) 260.3 cu in (4266 cm3) 303.0 cu in (4966 cm3)
Compression ratio 10:1 10:1 10:1
Output acc. to SAE J 1349 241hp/5700rpm2 275hp/5750 rpm2 302hp/5600rpm2
(180 kW/5700rpm) (205 kW/5750 rpm) (225 kW/5600rpm)
Maximum torque 258lb-ft/3000 - 4500 rpm 295 lb-ft/3000 - 4400 rpm 339lb-ft/2700 - 4250 rpm
acc. to SAE J 1349 (350Nm/3000-4500rpm) (400 Nm/3000-4400 rpm) (460 Nm/2700-4250rpm)
Maximum engine speed 6000rpm 6000rpm 6000rpm
Firing order 1-4-3-6-2-5 1-5-4-2-6-3-7-8 1-5-4-2-6-3-7-8
Poly-V-belt 2380mm 2380mm 2380mm
1 The quoted data apply only to the standard vehicle. See an auth orized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
2 Premium fuel required. Performance may vary with fuel octane rating.
424
