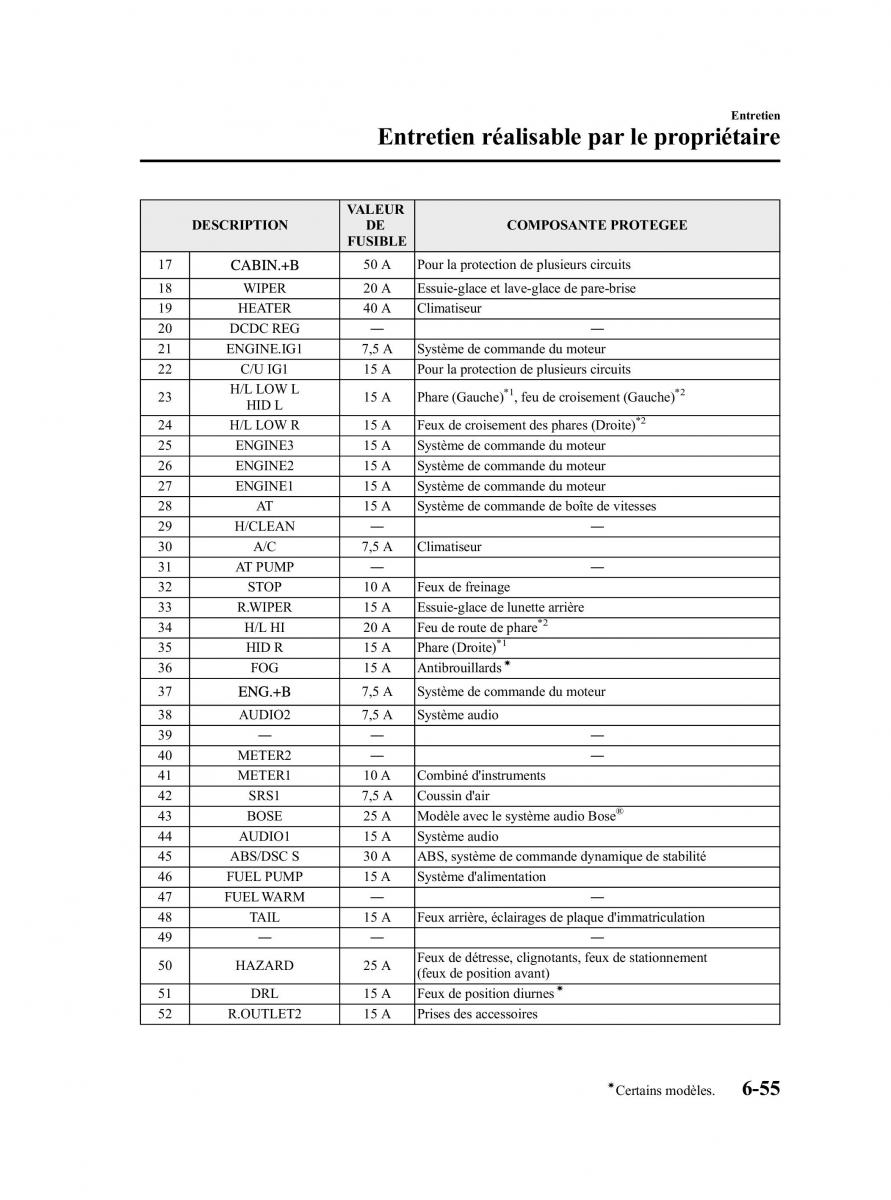

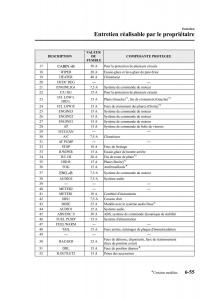

CX-5_8CA6-EC-11L_Edition1 Page409
Friday, December 9 2011 4:21 PM
Black plate (409,1)
Entretien
Entretien réalisable par le propriétaire
VALEUR
DESCRIPTION DE COMPOSANTEPROTEGEE
FUSIBLE
17 50A Pour la protection de plusieurs circuits
18 WIPER 20A Essuie-glace et lave-glace de pare-brise
19 HEATER 40A Climatiseur
20 DCDCREG ――
21 ENGINE.IG1 7,5 A Système de commande du moteur
22 C/UIG1 15A Pour la protection de plusieurs circuits
H/LLOWL *1 *2
23 HIDL 15A Phare (Gauche) , feu de croisement (Gauche)
*2
24 H/LLOWR 15A Feuxdecroisement des phares (Droite)
25 ENGINE3 15A Système de commande du moteur
26 ENGINE2 15A Système de commande du moteur
27 ENGINE1 15A Système de commande du moteur
28 AT 15A Système de commande de boîte de vitesses
29 H/CLEAN ――
30 A/C 7,5 A Climatiseur
31 ATPUMP ――
32 STOP 10A Feuxdefreinage
33 R.WIPER 15A Essuie-glace de lunette arrière
*2
34 H/LHI 20A Feuderoutedephare
*1
35 HIDR 15A Phare (Droite)
36 FOG 15A Antibrouillardsí
37 7,5 A Système de commande du moteur
38 AUDIO2 7,5 A Système audio
39 ―― ―
40 METER2 ――
41 METER1 10A Combinéd'instruments
42 SRS1 7,5 A Coussin d'air
®
43 BOSE 25A ModèleaveclesystèmeaudioBose
44 AUDIO1 15A Système audio
45 ABS/DSCS 30A ABS,systèmedecommandedynamiquedestabilité
46 FUELPUMP 15A Système d'alimentation
47 FUELWARM ――
48 TAIL 15A Feuxarrière, éclairages de plaque d'immatriculation
49 ―― ―
50 HAZARD 25A Feuxdedétresse, clignotants, feux de stationnement
(feux de position avant)
51 DRL 15A Feuxdeposition diurnesí
52 R.OUTLET2 15A Prises des accessoires
í
Certains modèles. 6-55
Form No.8CA6-EC-11L
