text version of content this owner's manual page from owners manual to the vehicle Toyota Auris Hybrid, year of production 2007 - 2012:

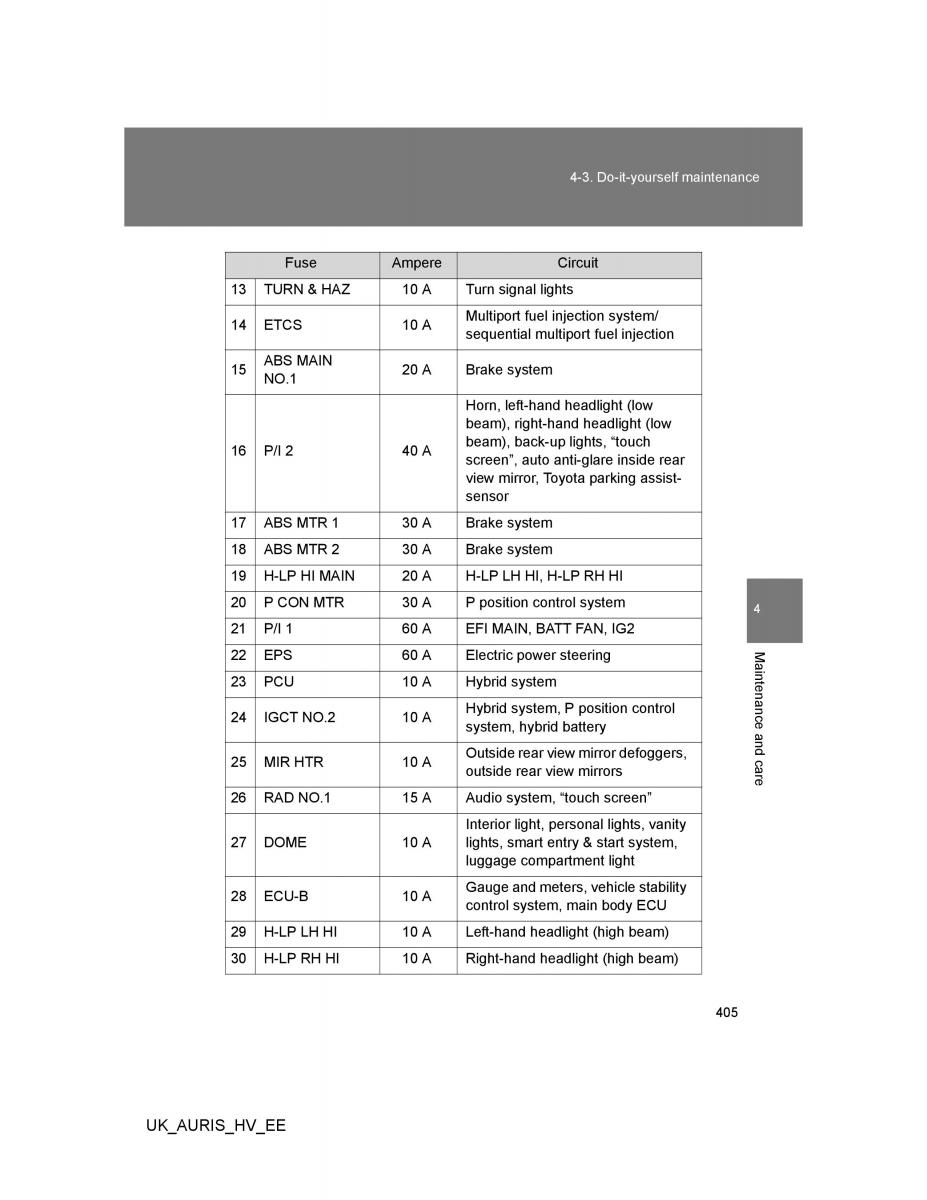

4-3. Do-it-yourself maintenance Fuse Ampere Circuit 13 TURN & HAZ 10 A Turn signal lights 14 ETCS 10 A Multiport fuel injection system/ sequential multiport fuel injection 15 ABS MAIN 20 A Brake system NO.1 Horn, left-hand headlight (low beam), right-hand headlight (low 16 P/I 2 40 A beam), back-up lights, “touch screen”, auto anti-glare inside rear view mirror, Toyota parking assist- sensor 17 ABS MTR 1 30 A Brake system 18 ABS MTR 2 30 A Brake system 19 H-LP HI MAIN 20 A H-LP LH HI, H-LP RH HI 20 P CON MTR 30 A P position control system 4 21 P/I 1 60 A EFI MAIN, BATT FAN, IG2 22 EPS 60 A Electric power steering Main 23 PCU 10 A Hybrid system ten 24 IGCT NO.2 10 A Hybrid system, P position control ance system, hybrid battery an Outside rear view mirror defoggers, d 25 MIR HTR 10 A outside rear view mirrors care 26 RAD NO.1 15 A Audio system, “touch screen” Interior light, personal lights, vanity 27 DOME 10 A lights, smart entry & start system, luggage compartment light 28 ECU-B 10 A Gauge and meters, vehicle stability control system, main body ECU 29 H-LP LH HI 10 A Left-hand headlight (high beam) 30 H-LP RH HI 10 A Right-hand headlight (high beam) 405 UK_AURIS_HV_EE
