text version of content this owner's manual page from owners manual to the vehicle Toyota Auris Hybrid, year of production 2007 - 2012:

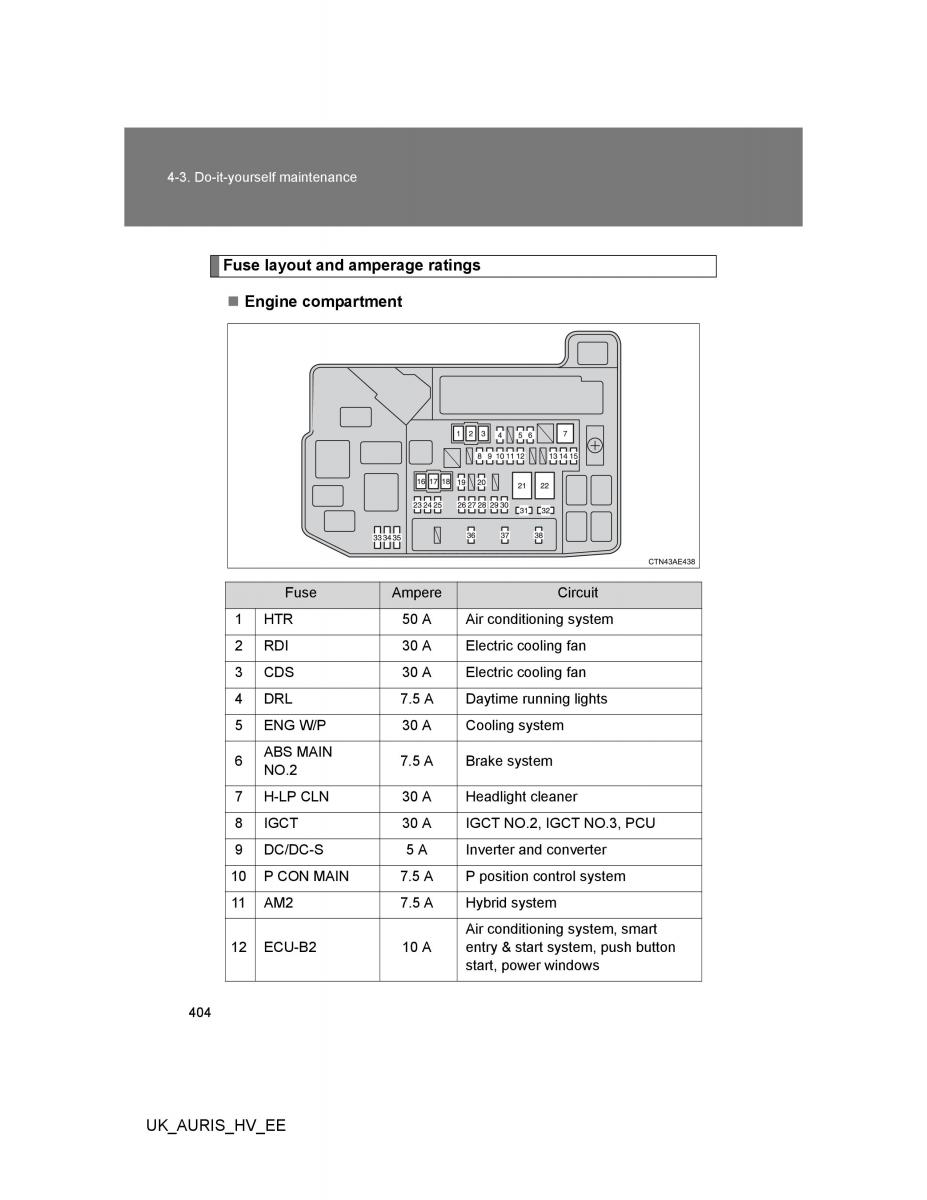

4-3. Do-it-yourself maintenance Fuse layout and amperage ratings Engine compartment Fuse Ampere Circuit 1 HTR 50 A Air conditioning system 2 RDI 30 A Electric cooling fan 3 CDS 30 A Electric cooling fan 4 DRL 7.5 ADaytime running lights 5 ENG W/P 30 A Cooling system 6 ABS MAIN 7.5 ABrake system NO.2 7 H-LP CLN 30 A Headlight cleaner 8 IGCT 30 A IGCT NO.2, IGCT NO.3, PCU 9 DC/DC-S 5 A Inverter and converter 10 P CON MAIN7.5 AP position control system 11 AM2 7.5 AHybrid system Air conditioning system, smart 12 ECU-B2 10 A entry & start system, push button start, power windows 404 UK_AURIS_HV_EE
