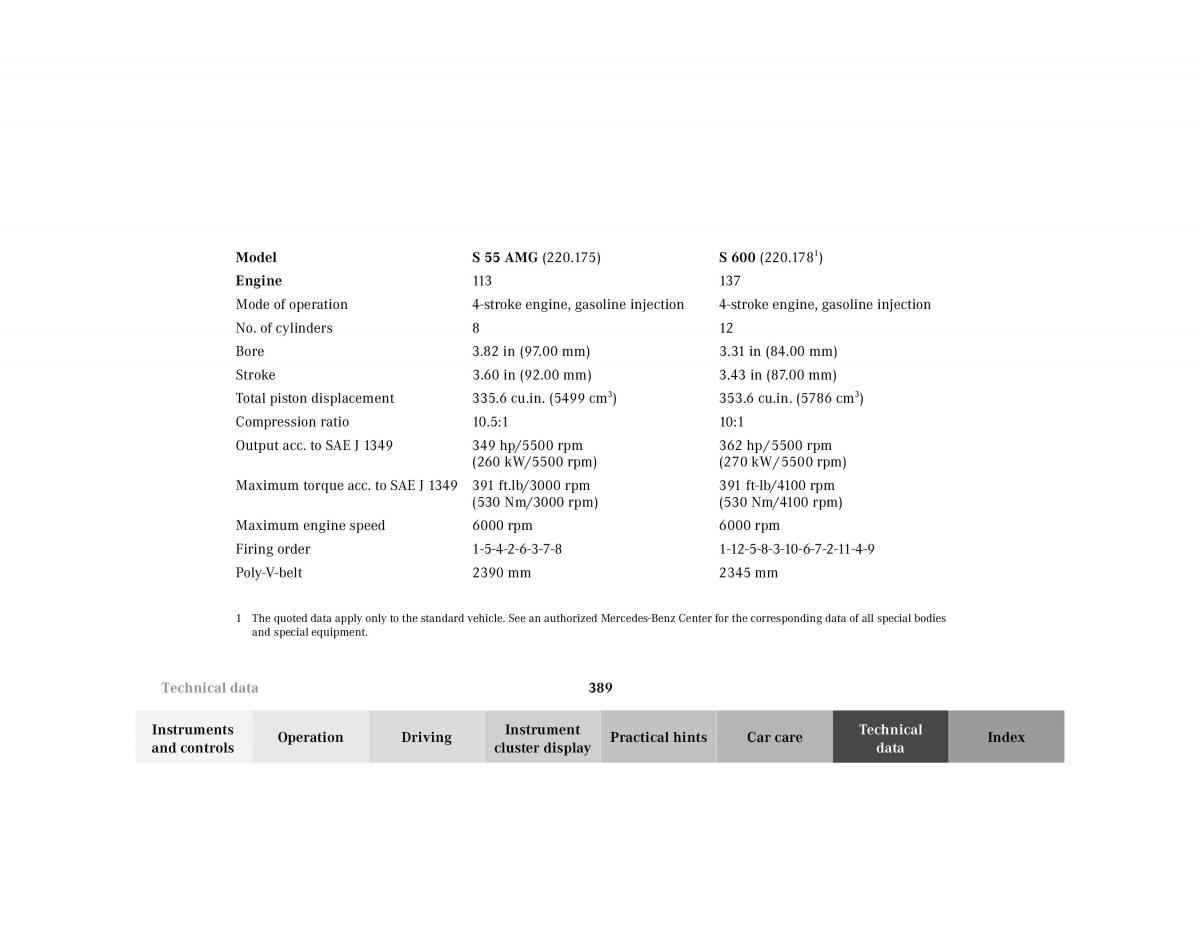

1
Model S 55 AMG (220.175) S 600 (220.178)
Engine 113 137
Mode of operation 4-stroke engine, gasoline injection 4-stroke engine, gasoline injection
No. of cylinders 8 12
Bore 3.82 in (97.00 mm) 3.31 in (84.00 mm)
Stroke 3.60 in (92.00 mm) 3.43 in (87.00 mm)
3 3
Total piston displacement 335.6 cu.in. (5499 cm) 353.6 cu.in. (5786 cm)
Compression ratio 10.5:1 10:1
Output acc. to SAE J 1349 349hp/5500rpm 362 hp/5500 rpm
(260 kW/5500rpm) (270 kW/5500 rpm)
Maximum torque acc. to SAE J 1349 391ft.lb/3000 rpm 391 ft-lb/4100 rpm
(530 Nm/3000rpm) (530 Nm/4100 rpm)
Maximum engine speed 6000 rpm 6000 rpm
Firing order 1-5-4-2-6-3-7-8 1-12-5-8-3-10-6-7-2-11-4-9
Poly-V-belt 2390 mm 2345 mm
1 The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all s pecial bodies
and special equipment.
Technical data 389
Instruments Operation Driving Instrument Practical hints Car care Technical Index
and controls cluster display data
