text version of content this owner's manual page
from owners manual to the vehicle Mercedes S, year of production 1998 - 2005:
Instruments Operation Driving Instrument Practical hints Car care Technical Index
and controls cluster display data

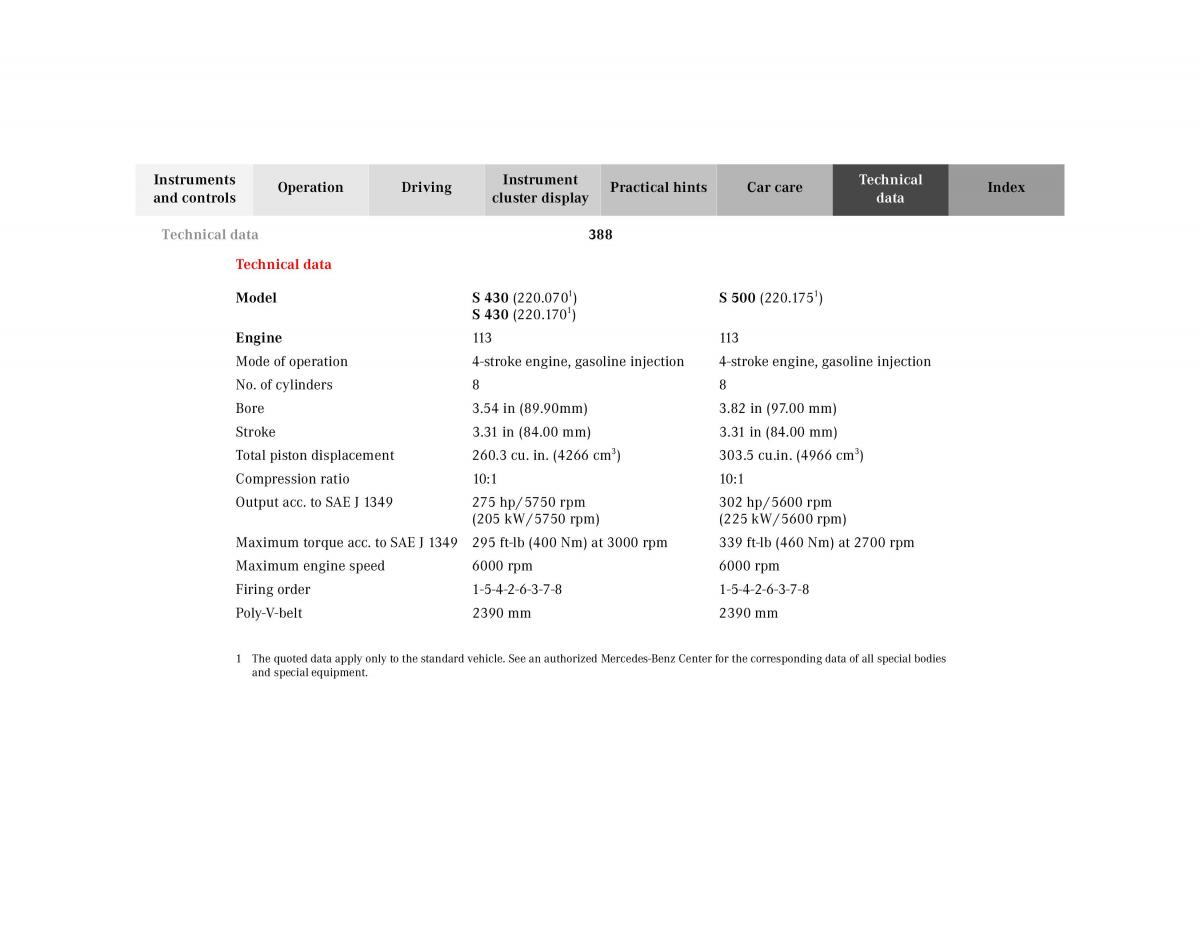

Technical data 388
Technical data
1 1
Model S 430 (220.070) S 500 (220.175)
1
S 430 (220.170)
Engine 113 113
Mode of operation 4-stroke engine, gasoline injection 4-stroke engine, gasoline injection
No. of cylinders 8 8
Bore 3.54 in (89.90mm) 3.82 in (97.00 mm)
Stroke 3.31 in (84.00 mm) 3.31 in (84.00 mm)
3 3
Total piston displacement 260.3 cu. in. (4266 cm) 303.5 cu.in. (4966 cm)
Compression ratio 10:1 10:1
Output acc. to SAE J 1349 275 hp/5750 rpm 302 hp/5600 rpm
(205 kW/5750 rpm) (225 kW/5600 rpm)
Maximum torque acc. to SAE J 1349 295 ft-lb (400 Nm) at 3000 rpm 339 ft-lb (460 Nm) at 2700 rpm
Maximum engine speed 6000 rpm 6000 rpm
Firing order 1-5-4-2-6-3-7-8 1-5-4-2-6-3-7-8
Poly-V-belt 2390 mm 2390 mm
1 The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all s pecial bodies
and special equipment.
